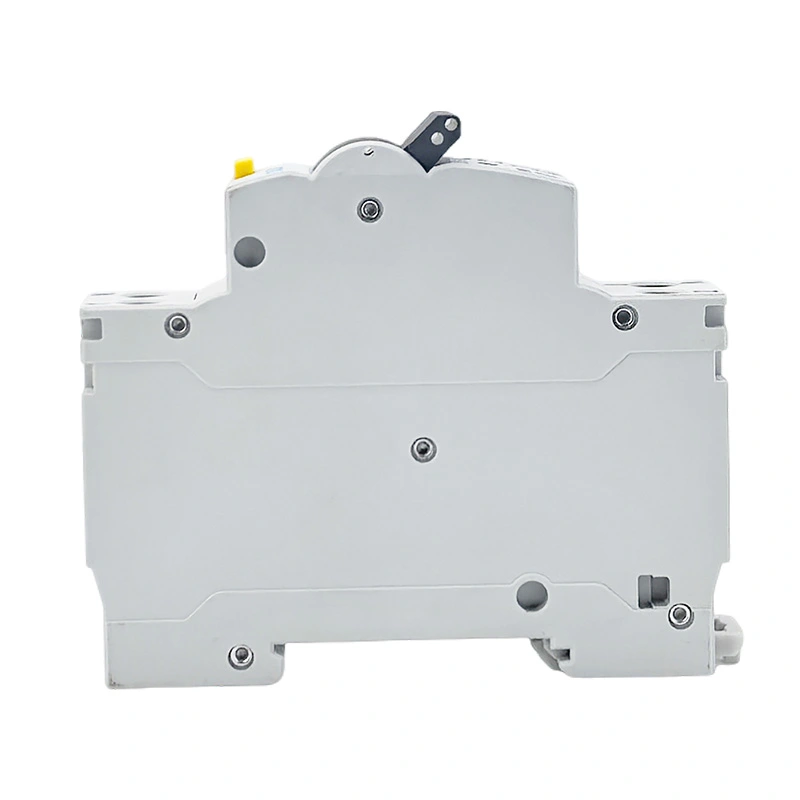

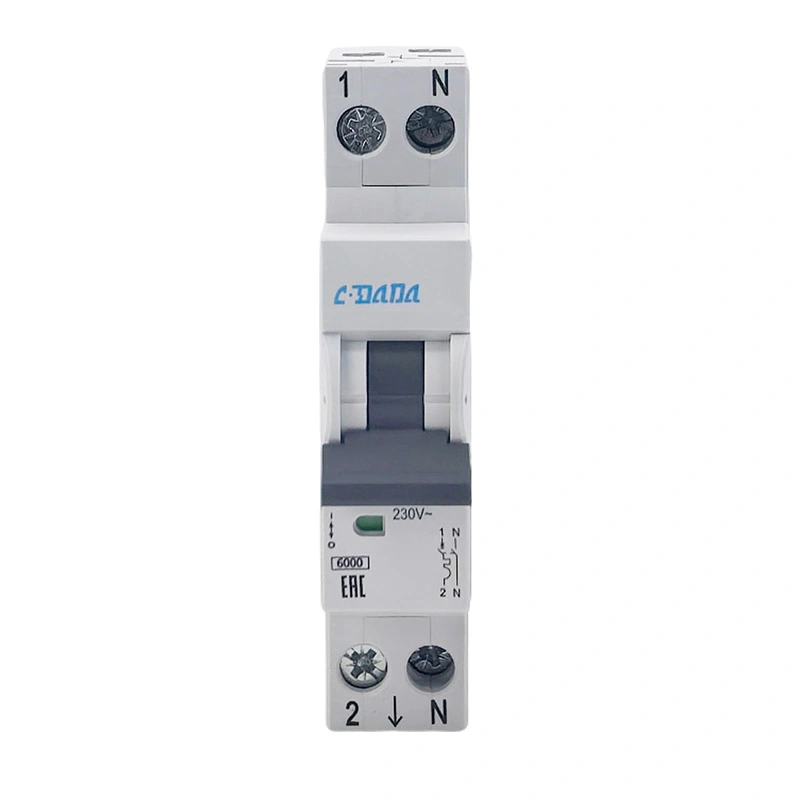

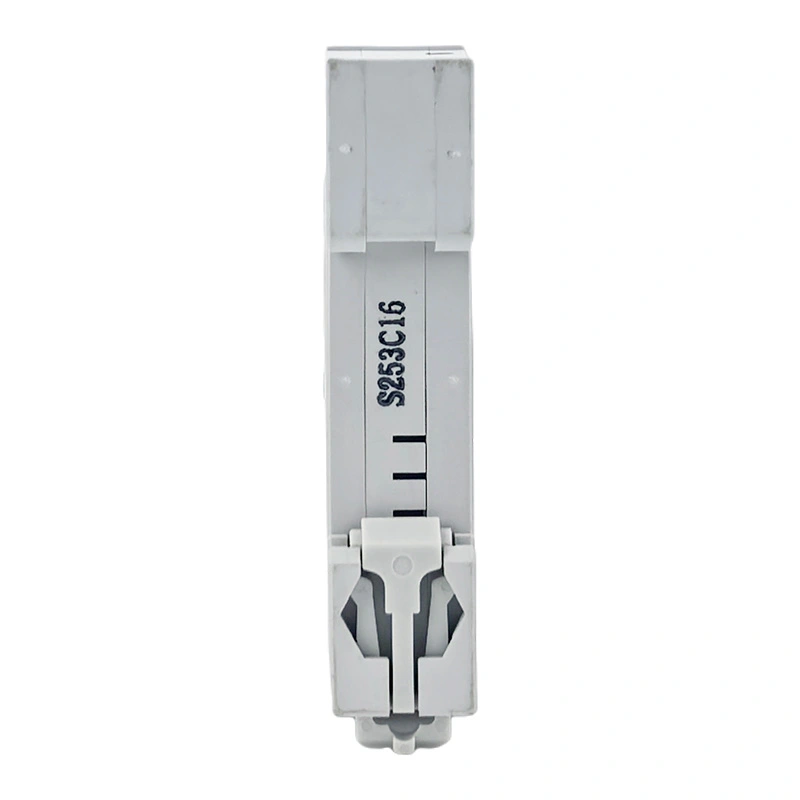

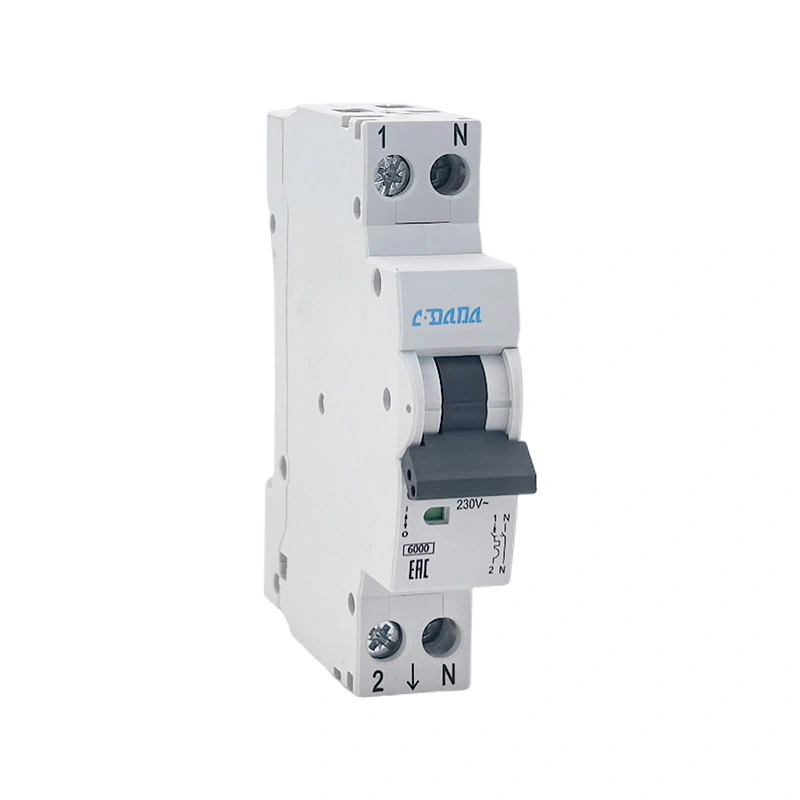

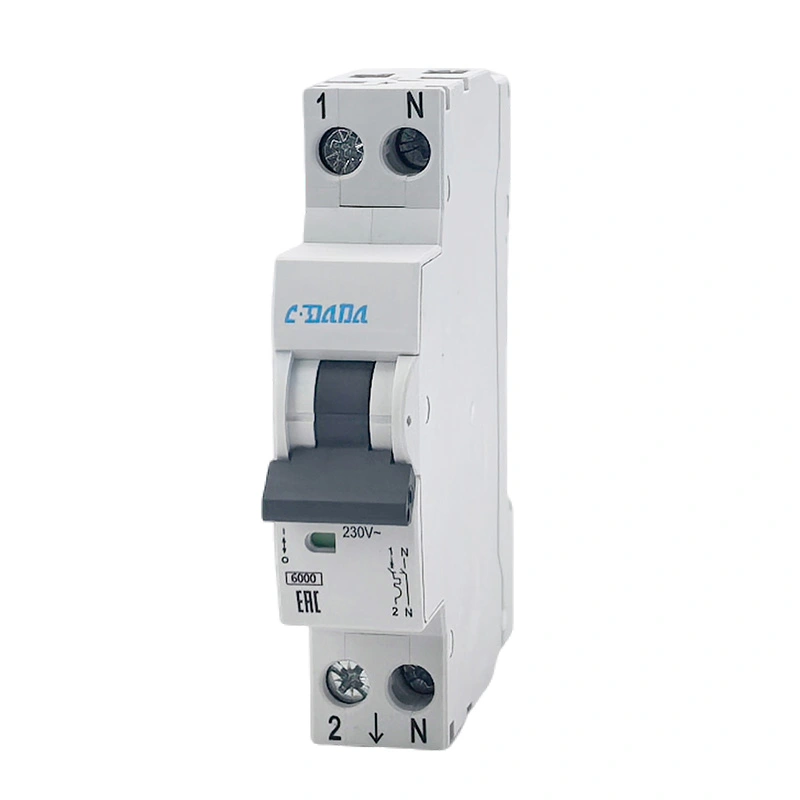

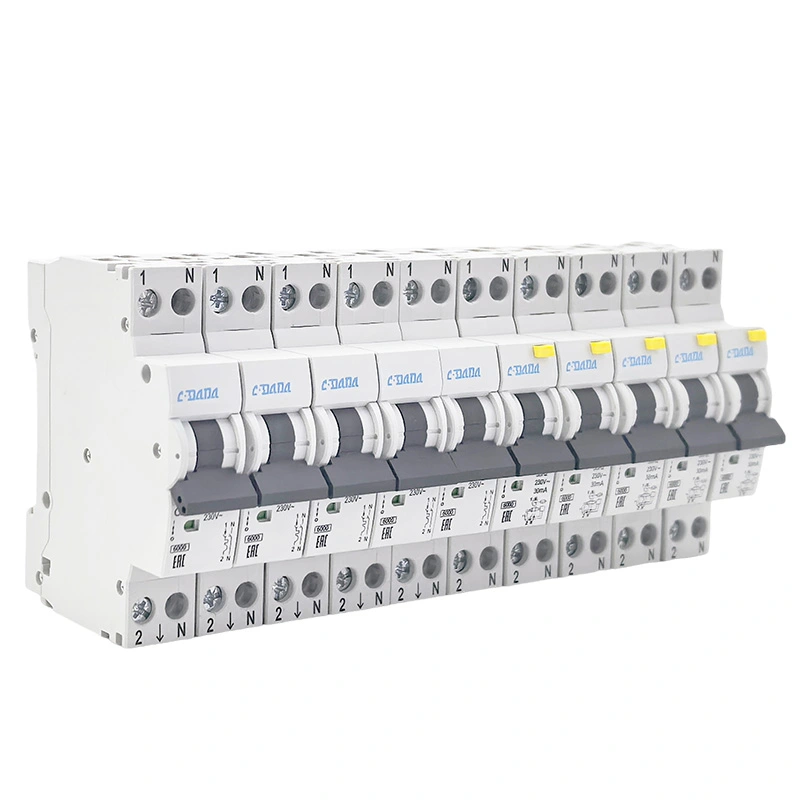

Kaapuni Kaapuni liilii DPN 6KA
Model:DAB7N
ʻO ka CDADA Miniature Circuit Breaker DPN 6KA he mea kūpono no ke kūʻai nui ʻana, kahi kiʻekiʻe kiʻekiʻe 1P + N miniature circuit breaker e pili ana me IEC60898-1 no ka palekana o ka home a me ka pale kaapuni kalepa. Hoʻohana ʻo ia i ka hoʻolālā hoʻolālā ʻelua a me ka paʻa thermal-magnetic tripping, maʻalahi e hoʻokomo ma ke kaʻaahi DIN a maʻalahi hoʻi e mālama. Hoʻohui ia i ka hale hilinaʻi me ke ola lawelawe lōʻihi, e hōʻoia ana i ka lako mana palekana no nā ʻōnaehana mana haʻahaʻa haʻahaʻa.
ʻO CDADA DAB7N Miniature Circuit Breaker DPN 6KA he loea 1P + N dual-break miniature circuit breaker i hoʻomohala kūʻokoʻa e Shanghai DADA Electric, kahi mea hana hilinaʻi me 40+ mau makahiki o ka ʻike. Me ka 6kA kiʻekiʻe haʻihaʻi mana, hana synchronous, a me ka N-pole "hana mua, wāwahi hope" hoʻolālā, hoʻomaikaʻi maikaʻi ia i ka hana hoʻopau arc a pale i nā kaapuni a me nā lako me ka palekana. Hoʻohana nui ʻia i nā pahu hāʻawi, nā mea hoʻonaninani hale, nā mana kalepa, a me nā ʻāpana kukui, ʻo ia ka koho mua no nā mea kūʻai aku honua, nā mea hoʻolaha a me nā mea kūʻai aku OEM.
He aha nā pono o MCB DPN 6KA?

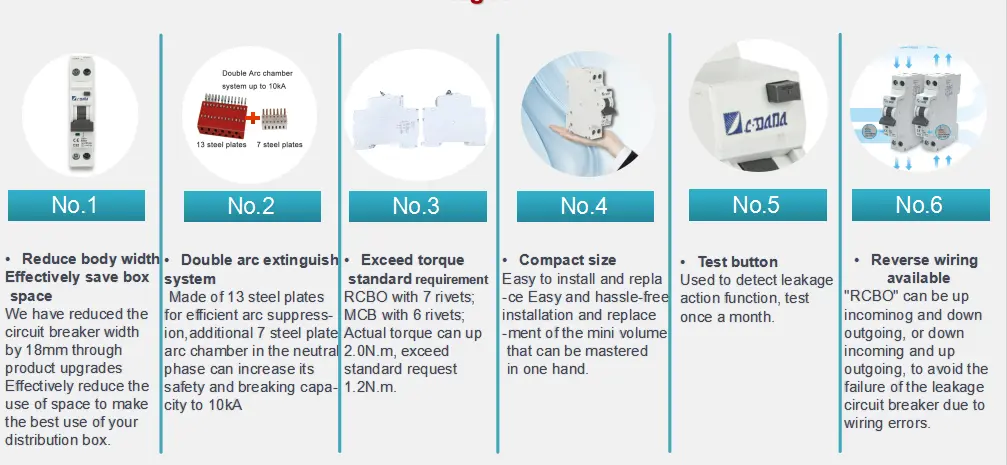

★ 1P+N DPN hoʻolālā, ʻelua mau wahi hoʻomaha, palekana a ʻoi aku ka hilinaʻi
★ N kia hana mua a haʻihaʻi ma hope, hoʻonui i ka mana haki
★ 6kA hiki i ka haki maoli, ikaika ka pale pōkole
★ Compact 17.8mm laula, mālama 'ia ke keena wahi
★ B/C tripping curves i loaʻa no nā ukana like ʻole
★ papa pale IP20, palekana ke hoʻopā
★ Laulā uwea ākea: 1–25mm² uwea hikiwawe
★ DIN rail kauʻana, wikiwiki a paʻa hoʻokomo
★ Kiʻekiʻe a me ka haʻahaʻa wela kū'ē: -25 ℃ ~ + 50 ℃
★ ʻO ke ola mechanical lōʻihi a hiki i 20,000 mau manawa
Nā noi
Hoʻohana nui ʻia ʻo CDADA Miniature Circuit Breaker DPN 6KA i:
★ Nā hale noho, nā hale noho, nā villa, nā mea hoʻonani hale
★ Nā keʻena, nā hale kūʻai, nā hōkele, nā kula, nā halemai
★ Nā kukui uila, nā kumu mana, nā lako uila liʻiliʻi
★ Nā mea hana hale: nā mea hoʻomehana wai, nā ea, nā mea hoʻomehana uila
★ ka hana hou kaapuni kahiko a me ka hoʻonui ʻana i ka pahu hāʻawi
★ ʻO nā ʻōnaehana hoʻoili uila haʻahaʻa haʻahaʻa haʻahaʻa a me ka ʻoihana
Pākaukau Nā ʻāpana ʻenehana
| 'ikamu | Hōʻike |
| Hoʻohālike | DAB7N-40 |
| Inoa Huahana | MCB DPN 6KA |
| Kūlana | IEC60898-1 |
| Pololei | 1P+N (2P) |
| Kaha Haʻihaʻi | 6kA |
| Kuhi ʻia i kēia manawa | 6A,16A,20A,25A,32A,40A |
| Voltage koho | AC 220/230/240V |
| Ka pinepine | 50/60Hz |
| Kaʻahele ʻAha | B / C |
| Voltage Insulation | 500V |
| Voltage Hoʻoulu | 4kV |
| Degere Palekana | IP20 |
| Ola Mechanical | 20,000 manawa |
| Ola Uila | 6,000 manawa |
| ʻO ke kuʻekuʻe wāwae | 1.5N·m |
| Kaha Uea | 1–25mm² |
| Hoʻohana Temp | -25 ℃ ~ +50 ℃ |
| Anana | 82.5×73.2×17.8mm |
Nā Ana Hoʻopuka
★ Length: 82.5mm
★ Kiʻekiʻe: 73.2mm
★ Laulā: 17.8mm (ka laulā 1-module maʻamau)
★ Ke kau ʻana: 35mm DIN rail
★ Uea: kūpono no 1–25mm² wili hikiwawe/ʻoʻoleʻa
★ Mānoanoa Busbar: 0.8–2mm
Nā mea ho'āʻo maʻamau
★ 1.13Ma ka hoʻāʻo ʻole ʻana (≥1 hola)
★ 1.45Ma ka hoʻāʻo ʻana (<1 hola)
★ 2.55In overload hana ho'āʻo
★ ʻO ka hoʻāʻo ʻana i ka hele wāwae koke (3In/5In no ka pihi B/C)
★ ʻO ka hoʻāʻo ʻana o ka dielectric
★ ho'āʻo piʻi wela
★ ka hoʻāʻo ʻana i ka hiki ʻana o ka nahā pōkole (6kA)
★ Mechanical & uila ho'āʻo ola
★ High & haʻahaʻa wela hana ho'āʻo
Nā ʻĀpana Kūlohelohe
IEC 60898-1
Hoʻokuʻu Magnetic

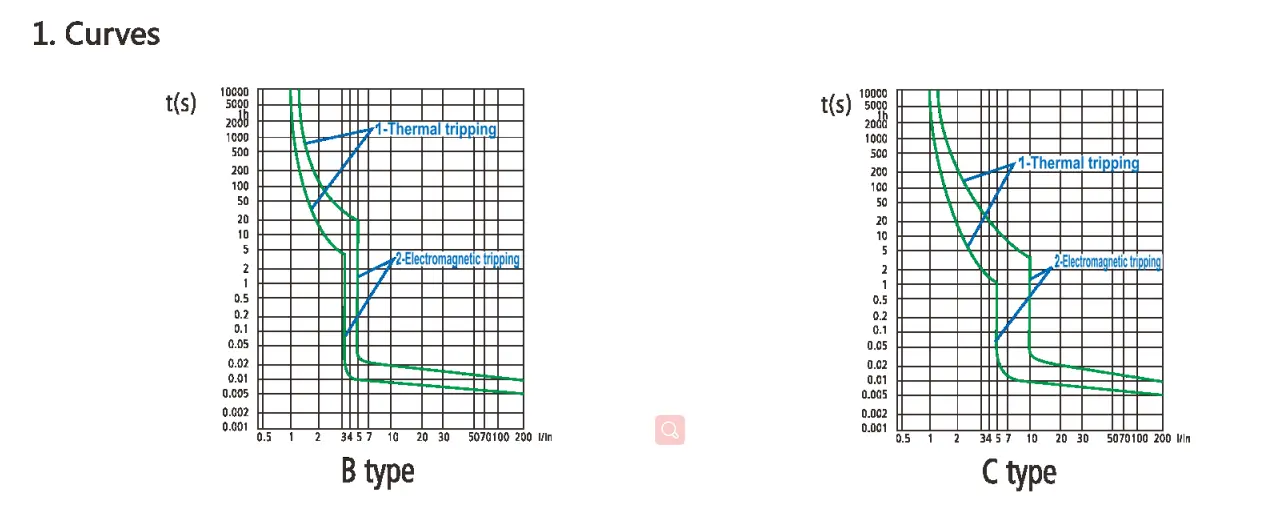

Ke hiki mai ke kaapuni kaapuni pōkole, hiki ke hoʻokuʻi koke ʻia e ka mea magnet me ke kumu hao. Wahi a ka IEC60898 maʻamau, hiki ke hoʻokaʻawale ʻia kēia huahana i ʻekolu mau ʻano: B, C, a me D.
|
|
Hoʻāʻo i kēia manawa | Ka wā hele | Nā noi |
| B Pipi | 3ln 5ln |
0.1 |
Pili wale ke ʻano B i nā haʻawe ikaika: -He mea hoʻoheheʻe uila-He mea hoʻomehana wai-Uhi uila. |
| C Pipi | 5Ma ka 10ln |
0.1 |
He kūpono ke ʻano C no nā ukana maʻamau: -Lame -Power Socket -Liʻiliʻi mana kaʻa |
Hoʻokuʻu wela
●Ke hoʻonui ʻia ka ukana ma ke kaapuni, e piʻo ke kaula bimetallic o ka mea haʻihaʻi kaapuni ma muli o ka wela, e hoʻokuʻu ʻia nā mea hoʻopili a hopena i ka wela;
●Na ka IEC ma'amau ka wehewehe 'ana i ka holo 'ana o ka manawa no ka nui o nā au;
● ʻO 30 °C ka mahana wela o ka hoʻāʻo ʻana.
| Hoʻāʻo i kēia manawa | Ka wā hele |
| 1.13ln | t z 1h(i ≦ 63A) |
| 1.45ln | t<1h(Ma ≦ 63A) |
| 2.55ln | 1s<1h<60s(Ma≤32A)1s |
Ke Kaʻina Hana Kūlana

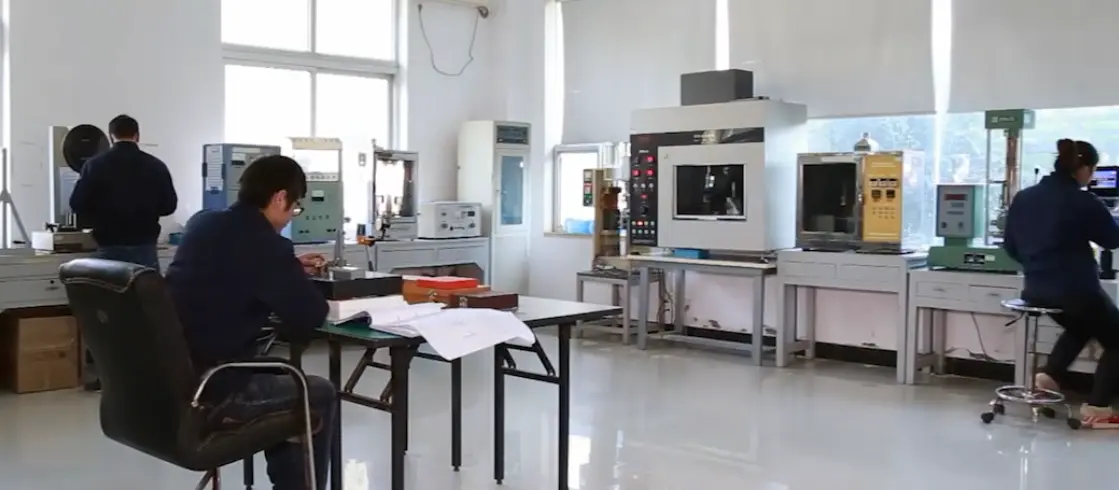

1. Ka nānā 'ana a me ka hō'oia hō'oia
2. Hoʻoheheʻe ʻakomi a me ka hoʻoheheʻe metala pololei
3. Semi-finished product assembly & calibration
4. 100% piha tripping hiʻona ho'āʻo
5. E pale i ka volta & insulation ho'āʻo hana
6. Kiʻekiʻe a me ka haʻahaʻa wela elemakule ho'āʻo
7. Nānā hiʻona, ana a me ka hōʻailona
8. Hoʻopaʻa hope a me ka nānā ʻana
Hoʻopili a me ka hoʻouna ʻana
★ pahu pahu hoʻokuʻu maʻamau me ka lining shockproof
★ pahu hui i pūʻolo no ka pale ʻana i ka ʻōpala
★ Lepili akaka: kumu hoʻohālike, kēia manawa, pole, nui, palapala hōʻoia
★ He kūpono no ka lawe ʻana i ke kai, ka ea a me ka ʻāina
★ Kākoʻo OEM i ka hōʻailona, hōʻailona maʻamau a me ka lepili
Nā hihia holomua o nā mea kūʻai aku
Ua lawe ʻia ʻo CDADA MCB DPN 6KA i ʻoi aku ma mua o 50 mau ʻāina a me nā ʻāina:
★ ka lako nui no ka manawa lōʻihi no nā mea hoʻolaha ʻEulopa a me ʻAsia
★ Nā papahana hoʻoponopono kaapuni hale ma Middle East & Africa
★ ʻO OEM ka hui pū ʻana me nā lama uila kaulana kaulana
★ Kākoʻo hāʻawi mana no nā mea hoʻomohala waiwai
★ Nā kauoha paʻa mai nā mea hana aelike uila a me nā mea hoʻohui pūnaewele
No ke aha e koho ai ʻo DADA Electric?
★ 40+ makahiki o ka ʻoihana ʻoihana i ka hoʻokele kaapuni R&D a me ka hana
★ 90% mau mea nui i hana ʻia i loko o ka hale, ka mana o ka maikaʻi
★ ISO9001 i hōʻoia ʻia, hoʻokō piha me nā kūlana honua
★ Nā palapala hōʻoia piha: CE, CB, CCC, etc.
★ Ka mana hana nui, hoʻouna wikiwiki no nā kauoha nui
★ Kākoʻo ʻenehana loea a me ka lawelawe ma hope o ke kūʻai aku
★ E ʻae i ka hana maʻamau OEM & ODM e hoʻokō i nā koi mākeke
★ ʻōnaehana logistic honua, palekana a me ka hāʻawi manawa
Hōʻailona Wela: ʻO ka mea haʻihaʻi kaapuni liʻiliʻi DPN 6KA, Kina, mea hana, mea hoʻolako, hale hana
