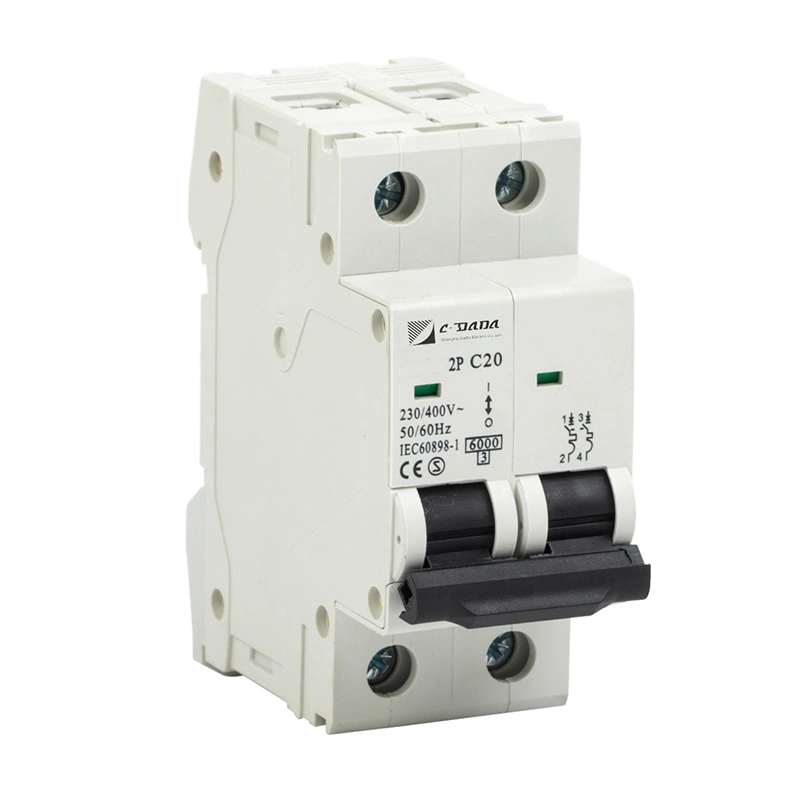

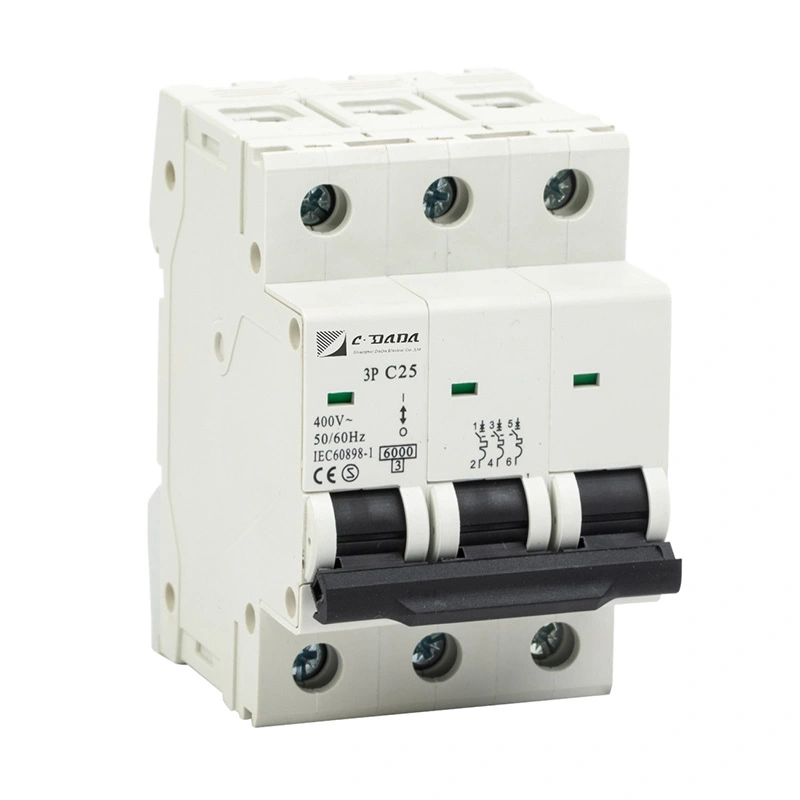

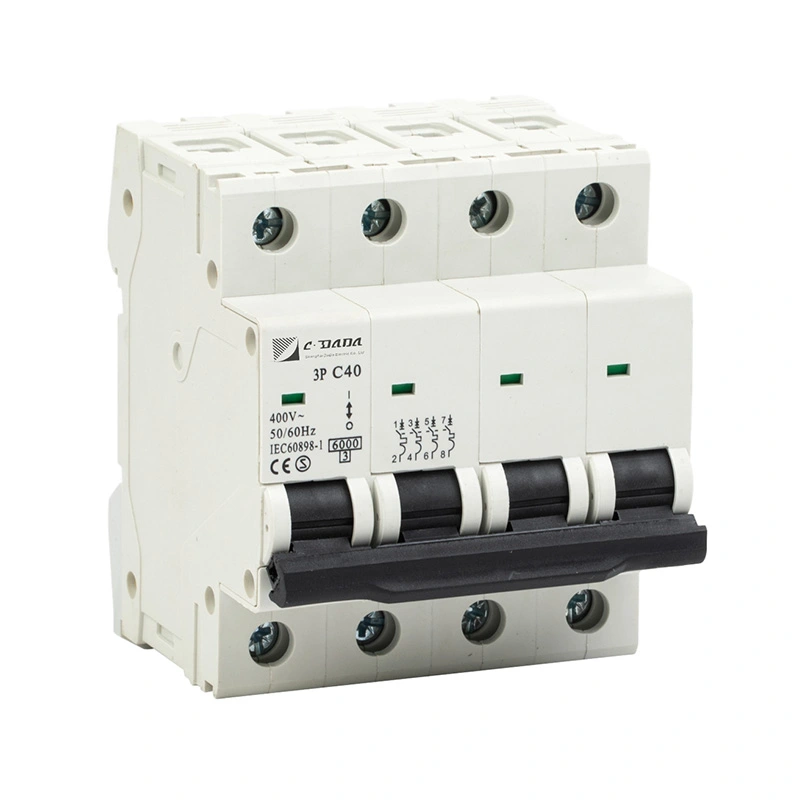

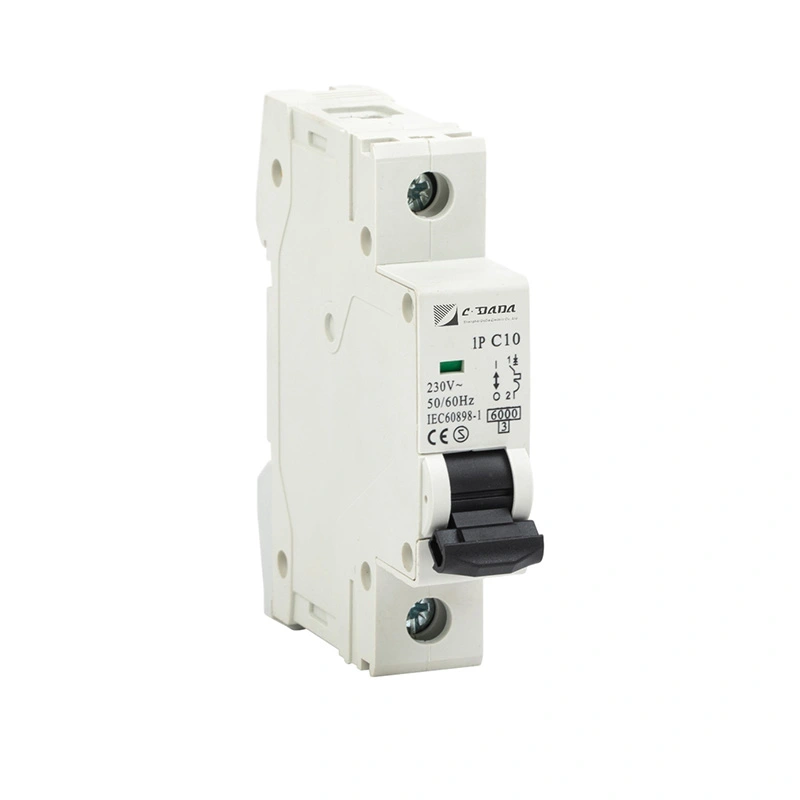

4.5kA 6kA Kaapuni Kaapuni liʻiliʻi
Model:ALFHA
ʻO CDADA ka mea hana loea o 4.5kA 6kA Miniature Circuit Breaker, i hōʻoia ʻia me CCC a me ISO9001 no ka pale kaapuni palekana. Hoʻohana ʻo ia i ka pūpū pale ahi a me ka hele ʻana o ka thermal-magnetic tripping, maʻalahi ke kau ʻana ma ke kaʻaahi DIN a maʻalahi hoʻi e mālama. Hoʻohui ia i ka hana paʻa me ke ola lawelawe lōʻihi, kūpono no ka hoʻolaha ʻana i ka mana noho, kālepa a me ka ʻoihana.
ʻO CDADA ALFHA 4.5kA 6kA Miniature Circuit Breaker he mea hoʻokiʻekiʻe kiʻekiʻe kiʻekiʻe, hāʻawi ʻia e kā mākou hale hana me nā kumukūʻai pololei. Hāʻawi ia i ka overload hilinaʻi a me ka pale kaapuni pōkole no nā ʻōnaehana mana uila haʻahaʻa, me nā ʻōkuhi tripping B/C/D e hoʻohālikelike i nā ukana like ʻole.
Kūkulu ʻia me nā mea pale ahi a me nā mea kikoʻī, e hōʻoia i ka hana palekana no nā hale, nā hale hana a me nā papa hoʻolaha.
Nā hiʻohiʻona a me nā pono
★ Paʻa ahi, ʻaʻa ʻole ka pūpū, pale i ka wela kiʻekiʻe, anti-yellowing
★ puka aniani hōʻike ʻike: ʻulaʻula no ON, ʻōmaʻomaʻo no OFF no ke kūlana maopopo
★ Hoʻonui nā rivet ʻelua i ka paʻa o ka pahu no ka uwea palekana
★ Hoʻemi ʻia nā mea hoʻopaʻa hoʻopaʻa notched i ka wela a hoʻomaikaʻi i ke kūpaʻa pili
★ paʻa pālua DIN rail clip no ka hoʻokomo wikiwiki ʻana
★ 90% o nā ʻāpana i hana ʻia i loko o ka hale no ka maikaʻi paʻa
★ 100% hoʻāʻo piha ma mua o ka hoʻouna ʻana
Nā noi
Hoʻohana nui ʻia ʻo CDADA 4.5kA 6kA Miniature Circuit Breaker i:
★ Nā hale noho, nā hale noho, nā villa
★ Nā keʻena, nā hale kūʻai, nā hale aupuni
★ Nā hale hana ʻoihana, nā paneli hāʻawi mana
★ ʻO nā pā, nā mea hoʻoemi, nā pāpaʻi, nā mīkini hoʻokiʻekiʻe
★ Kaapuni kukui a me nā lako mana liʻiliʻi
Nā ʻāpana ʻenehana
|
'ikamu |
Hōʻike |
|
Hoʻohālike |
ALFHA |
|
Kūlana |
IEC60898 |
|
Kaha Haʻihaʻi |
4.5kA, 6kA |
|
Kuhi ʻia i kēia manawa |
1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Pololei |
1P, 1P+N, 2P, 3P, 3P+N, 4P |
|
Kaʻahele ʻAha |
B / C / D |
|
Voltage koho |
AC 230/400V, 400/415V |
|
Voltage Insulation |
500V |
|
Voltage Hoʻoulu |
4kV |
|
Degere Palekana |
IP20 |
|
Hoʻokomo |
35mm DIN kaʻaahi |
|
Temp hana |
-5 ℃ ~ +40 ℃ |
|
Ola Mechanical |
20,000 pōʻaiapuni |
|
Ola Uila |
4,000 ~ 8,000 pōʻaiapuni |
|
Palapala |
ISO9001, CCC, ASTA |
Nā Ana Hoʻopuka
★ laulā maʻamau: 17.8mm no ka pou
★ He kūpono no 35mm DIN rail kau ʻana
★ Hoʻonohonoho paʻa no nā pahu hoʻolaha maʻamau
★ Kaha uwea: 1–35mm² uwea hikiwawe/koi
Ka Mana Mana
★ ʻōnaehana hoʻokele maikaʻi ISO9001
★ 100% hale hana calibration: 1.13Ma ka hele ʻole, 1.45Ma ka huakaʻi, 2.55Ma ka hoʻāʻo
★ Mākēneki a me ka thermal tripping hōʻoia piha
★ kiʻekiʻe a me ka haʻahaʻa wela hoʻomanawanui
★ hana 'akomi a me ka pololei kuʻihao
Hoʻopili a me ka hoʻouna ʻana
★ pahu pahu pahu kūʻai maʻamau
★ ʻO kēlā me kēia pahu i hoʻopaʻa ʻia me ke kumu hoʻohālike, ka manawa, nā pou, ka nui
★ ʻO nā mea i loko ʻaʻohe haʻalulu no ka lawe ʻana i ka palekana
★ He kūpono no ka hoʻouna ʻana i ke kai, ka ea a me ka ʻāina
Nā hihia holomua o nā mea kūʻai aku
Ua hoʻolako ʻia ʻo CDADA 4.5kA 6kA Miniature Circuit Breaker i nā mea kūʻai aku ma ʻEulopa, Asia Hema, Middle East, Africa a me ʻAmelika Hema.
★ Nā papahana hale noho ma UAE a me Saudi Arabia
★ Ka hāʻawi ʻana i ka mana kalepa ma Nigeria a me Angola
★ Nā lako hana hale hana ma Kelemānia a me Tureke
★ ka hui pū ʻana o OEM me nā hōʻailona uila honua
★ Hoʻolako nui no ka wā lōʻihi no nā mea hoʻolaha a me nā ʻaelike
Hōʻailona Wela: 4.5kA 6kA kaapuni liʻiliʻi liʻiliʻi, Kina, mea hana, mea hoʻolako, hale hana
