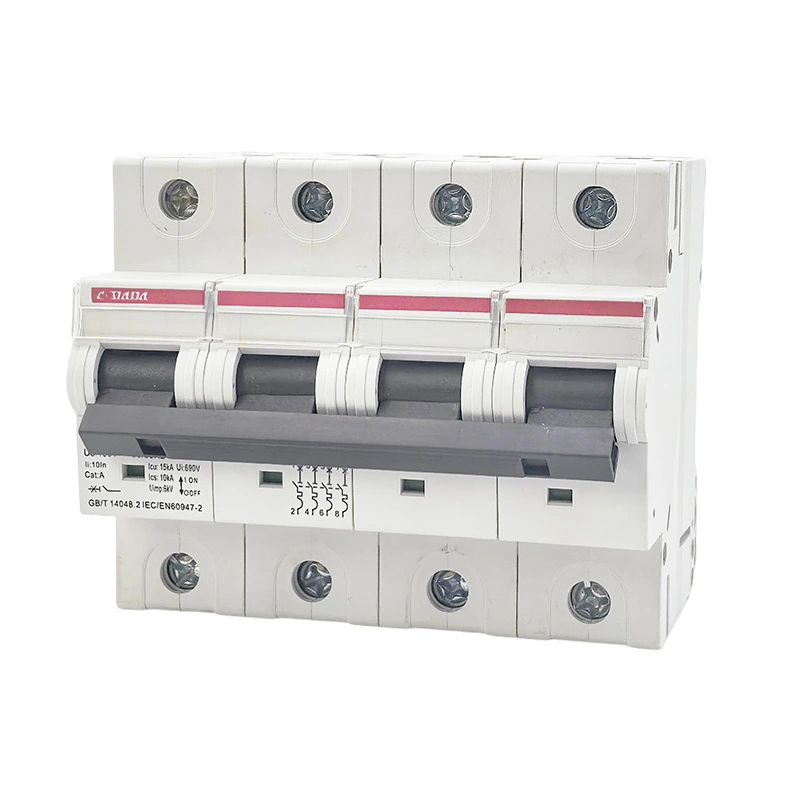

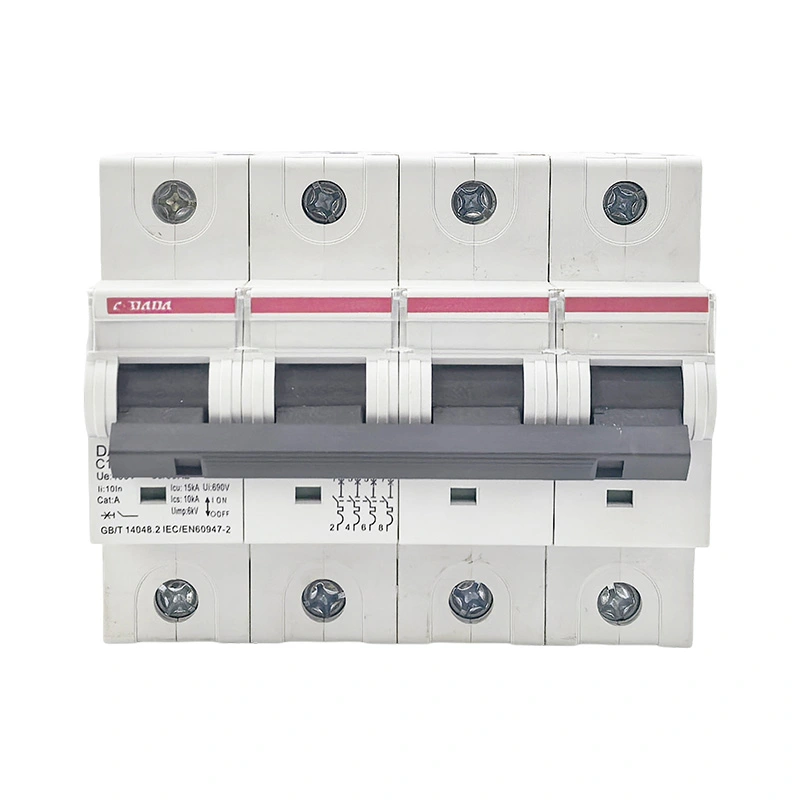

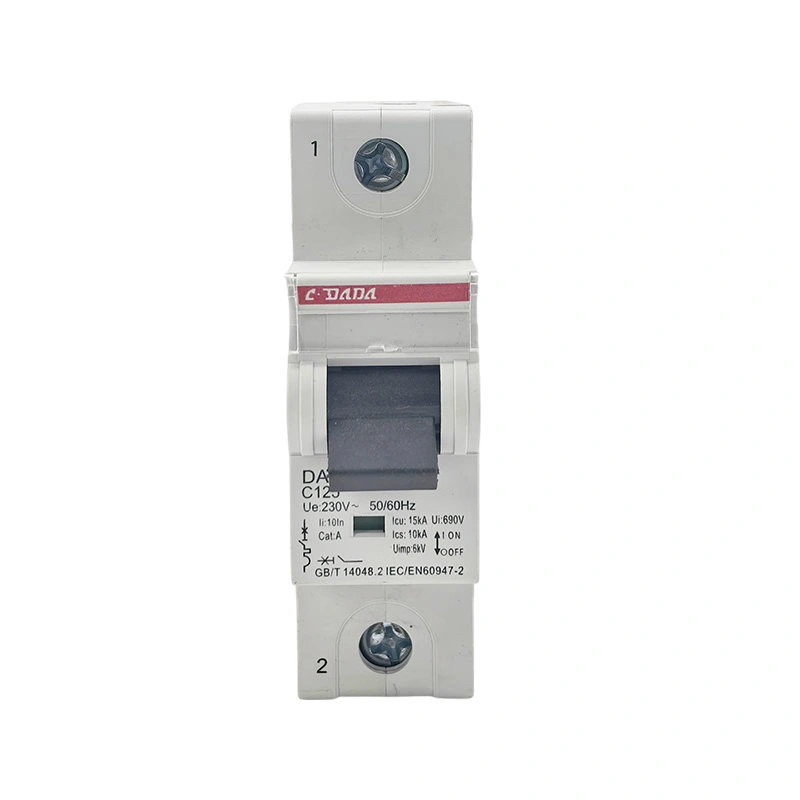

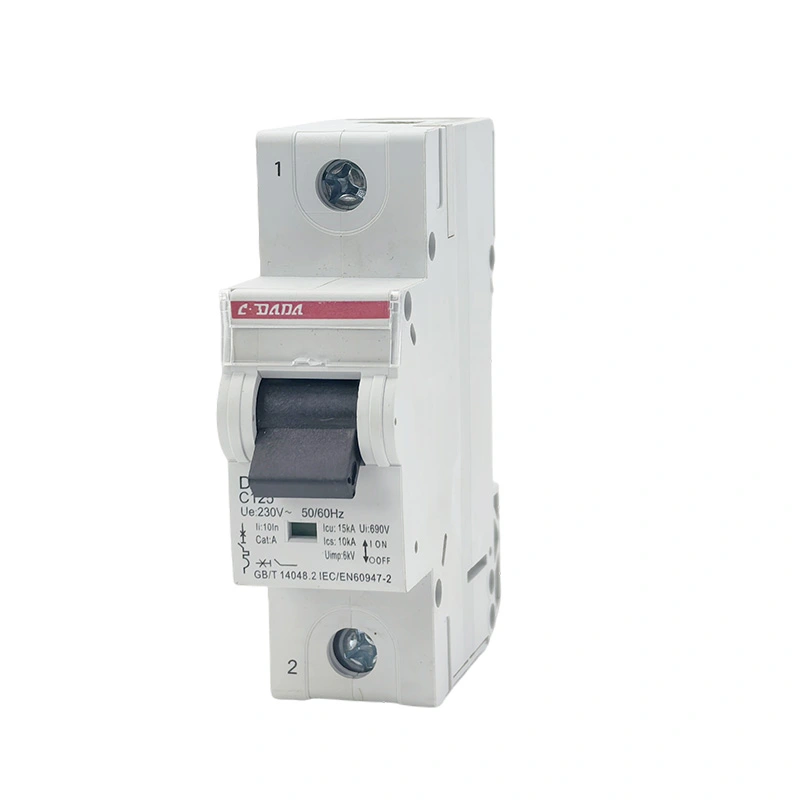

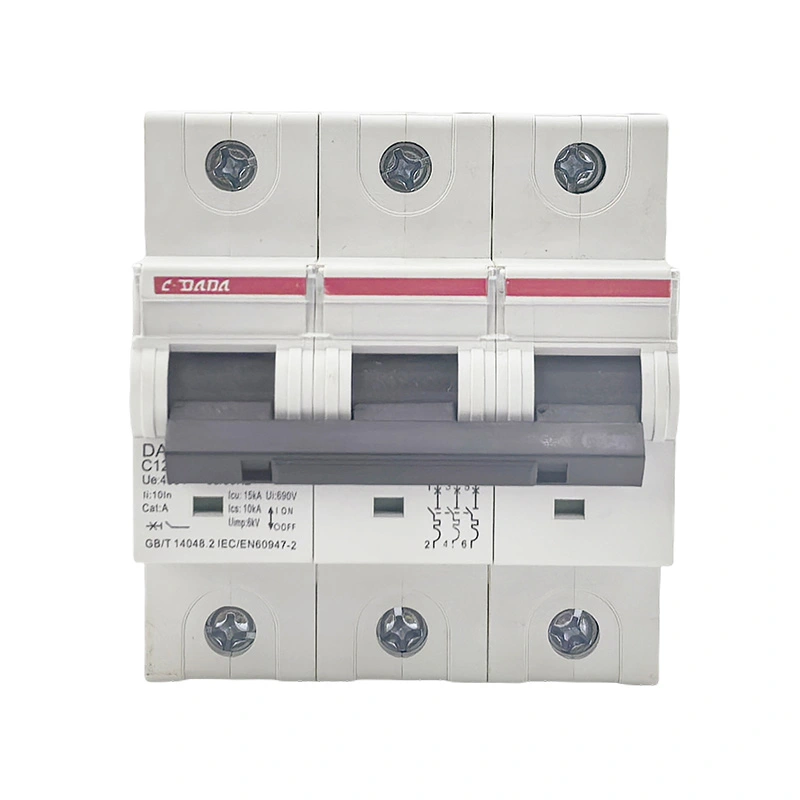

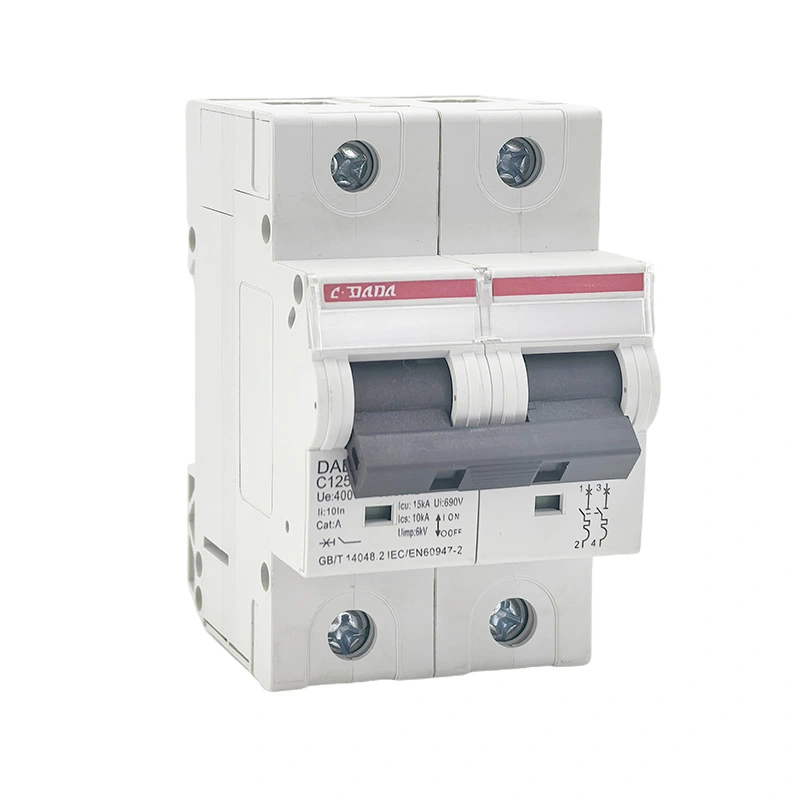

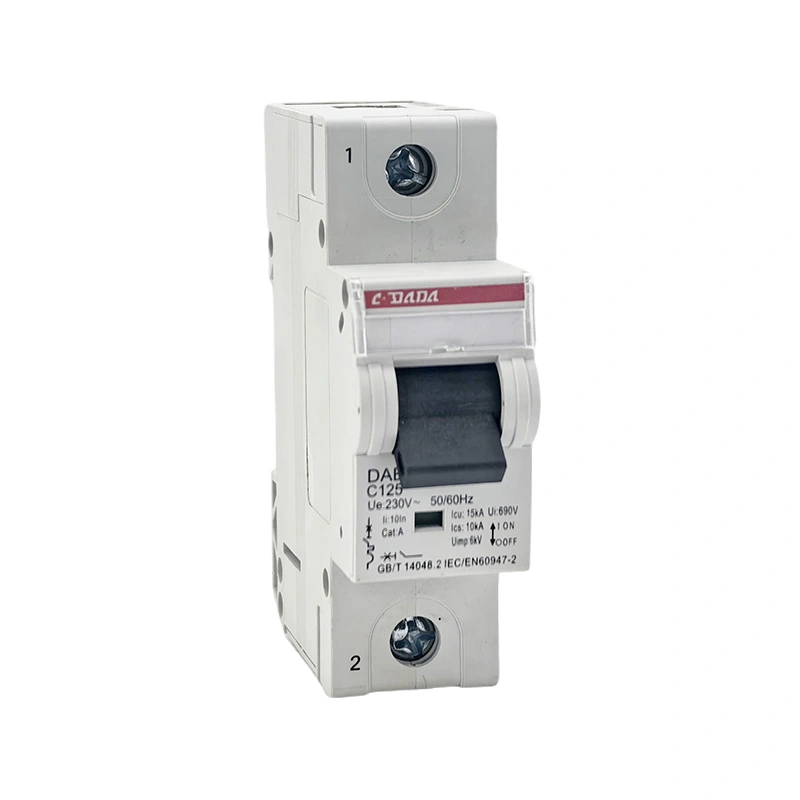

125 15KA Kaapuni Kaapuni liilii
Model:DAB7-125N / DAB7-125H
Ma ke ʻano he mea hana hilinaʻi o 125 15KA Miniature Circuit Breaker, ʻo ka huahana CDADA kahi hana kiʻekiʻe 125A MCB me 15kA hiki ke haki no ka hāʻawi ʻana i ka mana kaumaha. Hoʻohana ʻo ia i ka pūpū pale ahi PA66 a me ka hoʻolālā keʻena ʻelua arc, maʻalahi e kau ma luna o ke kaʻaahi DIN a maʻalahi hoʻi e mālama. Hoʻohui ʻo ia i ka ʻōnaehana pili kālā me ka lōʻihi o ka ʻoihana, e loaʻa ana ke ola lawelawe lōʻihi loa no nā kaʻa kaʻa nui.
CDADA DAB7-125 125. Me 10kA/15kA hiki ke uhaki kiʻekiʻe, 125A nui helu ʻia, a me 27mm (1.5M) ākea paʻa, hiki iā ia ke hoʻololi i nā pahu kaapuni kuʻuna i hoʻoheheʻe ʻia no ka pale kaumaha o kēia manawa.
ʻO ka hoʻohana ʻana i ke keʻena arc ʻelua, nā mea pili kālā, a me nā mea pale ahi PA66, hāʻawi ia i ka palekana a paʻa i ka overload, pōkole-kaapuni, a me ka pale kaʻawale no nā ʻoihana ʻoihana, ʻoihana, a me nā hale noho mana kiʻekiʻe.
Nā Hana Huahana
★ ʻO ka pale ʻana i ka ukana
★ pale pōkole
★ kaawale kaapuni palekana
★ Ka hoʻomalu ʻana i ka lima
★ Paʻa ka hoʻouna ʻana i kēia manawa nui

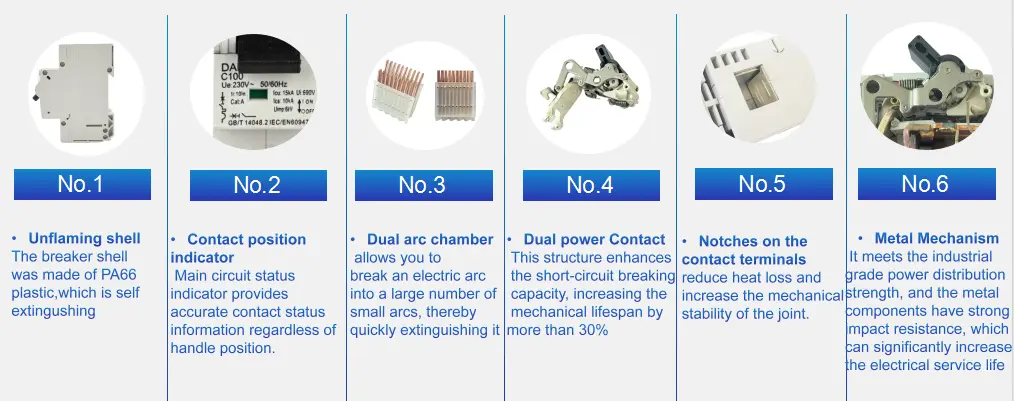

Nā Pōmaikaʻi Huahana Nui
★ 15kA hiki ke uhaki kiʻekiʻe kiʻekiʻe, pani i ka MCCB no ka hoʻohana kaumaha
★ ke keʻena arc pālua, hoʻonui ʻia ka wikiwiki hoʻopau arc e 30%
★ ʻO nā pilina puna kālā, haʻahaʻa wela wela, lōʻihi ke ola lawelawe
★ PA66 puʻupuʻu lapalapa, hoʻopio ponoʻī, pale wela kiʻekiʻe
★ ʻO ka mana hoʻokaʻaʻike pālua, ʻoi aku ka ikaika o ke kaapuni pōkole
★ ʻO nā mea hope loa, ʻoi aku ka paʻa o ka mīkini a me ka paʻa ʻana o ka uwea
★ ʻoihana metala metala, ikaika ka hopena
★ 27mm laula haiki, mālama i ka māhele ʻaha Kuhina

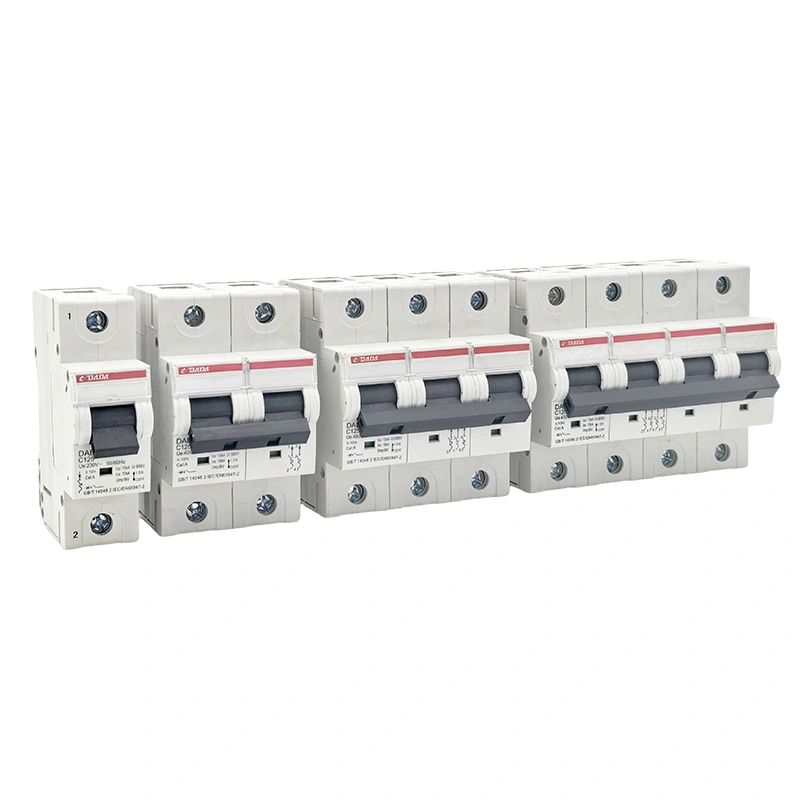

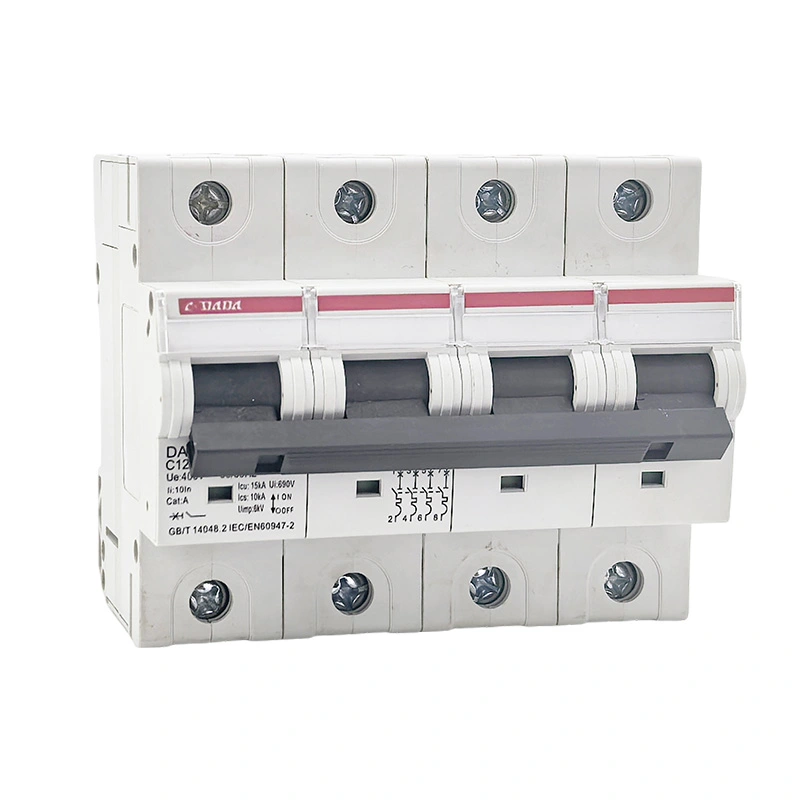

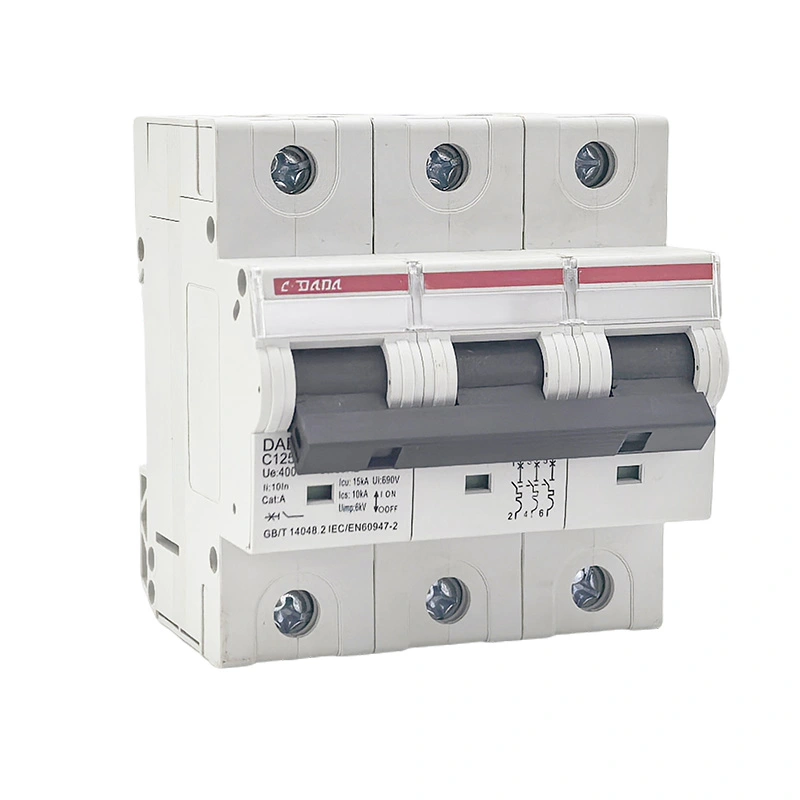

★ 1P / 2P / 3P / 4P nā pou piha, ākea ākea a hiki i 125A
★ Kākoʻo keleawe & alumini uea pili
Nā noi a me ka hoʻohana ʻana i nā hiʻohiʻona
★ CDADA 125 15KA Kaapuni Kaapuni liʻiliʻi i hoʻohana nui ʻia ma:
★ Nā hale hana ʻoihana, nā hale hana, a me nā lako lako mana nui
★ Nā hale kūʻai, nā hale kūʻai, nā hōkele, a me nā hale keʻena
★ Nā hale noho, nā hale kiʻekiʻe, a me nā kaapuni nui e hiki mai ana
★ nā keʻena hāʻawi mana, nā pahu pahu, a me nā ʻōnaehana hoʻoili hope
★ ʻO nā pamu mana nui, nā pā, nā mea hoʻoemi, a me nā kaʻa kaʻa
★ Nā papahana hana, kūkulu, a hoʻoponopono hou
Pākaukau Nā ʻāpana ʻenehana
|
'ikamu |
Hōʻike |
|
Hoʻohālike |
DAB7-125N / DAB7-125H |
|
Inoa Huahana |
MCB 125 15KA |
|
Kūlana |
IEC60898-1 |
|
Kuhi ʻia i kēia manawa |
A hiki i 125A |
|
Kaha Haʻihaʻi |
10kA (N), 15kA (H) |
|
Pololei |
1P, 2P, 3P, 4P |
|
Voltage koho |
400/415V AC |
|
Ka pinepine |
50/60Hz |
|
Voltage Insulation |
500V |
|
Voltage Hoʻoulu |
4kV |
|
Kaʻahele ʻAha |
B, C, D |
|
Degere Palekana |
IP20 |
|
Ola Mechanical |
8,500 manawa |
|
Ola Uila |
4,000–15,000 manawa |
|
Kaha Uea |
1–35mm² |
|
Hoʻohana Temp |
-5 ℃ ~ +40 ℃ |
|
Hoʻokomo |
35mm DIN kaʻaahi |
|
Laulā |
27mm (1.5M) |
Nā Ana Hoʻopuka
★ Laulā: 27mm (1P), 54mm (2P), 81mm (3P), 108mm (4P)
★ Kiʻekiʻe: 90mm
★ Ka lōʻihi: 75.5mm
★ Ke kau ʻana: 35mm DIN rail maʻamau
★ He kūpono no nā pahu hāʻawi haʻahaʻa haʻahaʻa maʻamau
Nā mea ho'āʻo maʻamau
★ 1.13Ma ka hoʻāʻo ʻaʻole hele wāwae (≥1h)
★ 1.45Ma ka hoʻāʻo ʻana (<1h)
★ 2.55In overload hana ho'āʻo
★ ʻO ka hoʻāʻo huakaʻi hele koke
★ ho'āʻo piʻi wela
★ ʻO ka hoʻāʻo ʻana o ka dielectric
★ 10kA/15kA ho'āʻo uhaki pōkole
★ Mechanical & uila ho'āʻo ola
★ High & haʻahaʻa wela hana ho'āʻo
Ka Mana Mana
Kaʻina Hoʻāʻo
★ 1. Ka nānā 'ana i nā mea maka
★ 2. Hoʻoheheʻe 'akomi a hoʻoheheʻe ʻia
★ 3. Precision hui & semi-ho'āʻo
★ 4. 100% piha tripping calibration
★ 5. Hoʻopaʻa i ka voltage & insulation ho'āʻo
★ 6. Hōʻoia ka hiki ʻana o ka haʻihaʻi pōkole
★ 7. Nānā hiʻona & ana
★ 8. Hoʻopau i ka ʻelemakule a me ka hoʻāʻo hope

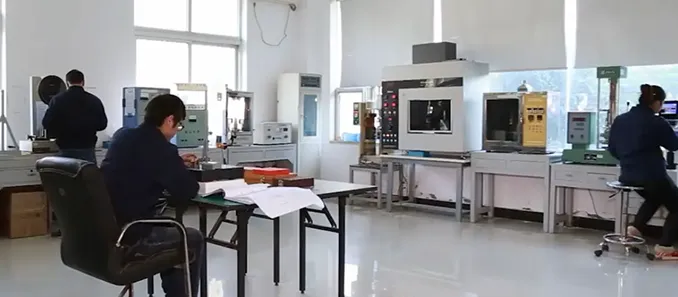

Lako Hoao
★ ʻOkoʻa tripping calibration nenoaiu
★ kahua hoʻāʻo pōkole pōkole
★ Keena ho'āʻo piʻi wela
★ kū i ka mea hōʻike uila
★ Mīkini hoʻāʻo ola
★ Keʻena kaiapuni kiʻekiʻe & haʻahaʻa

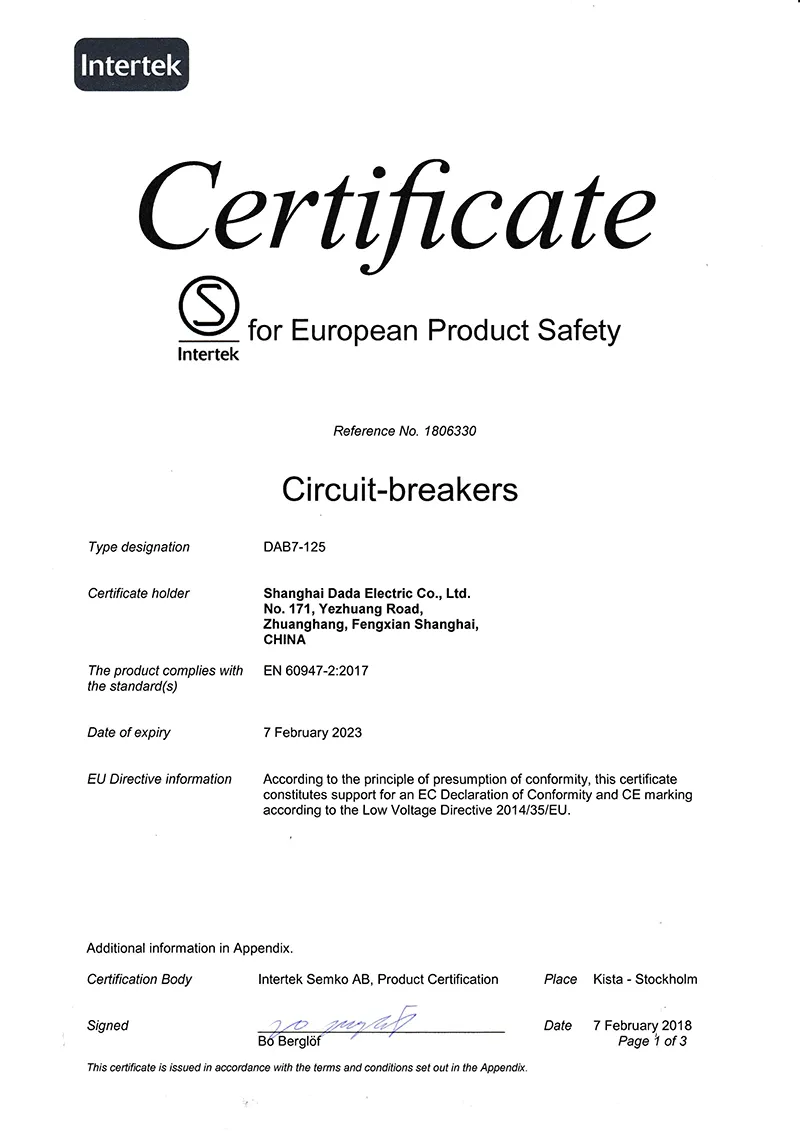

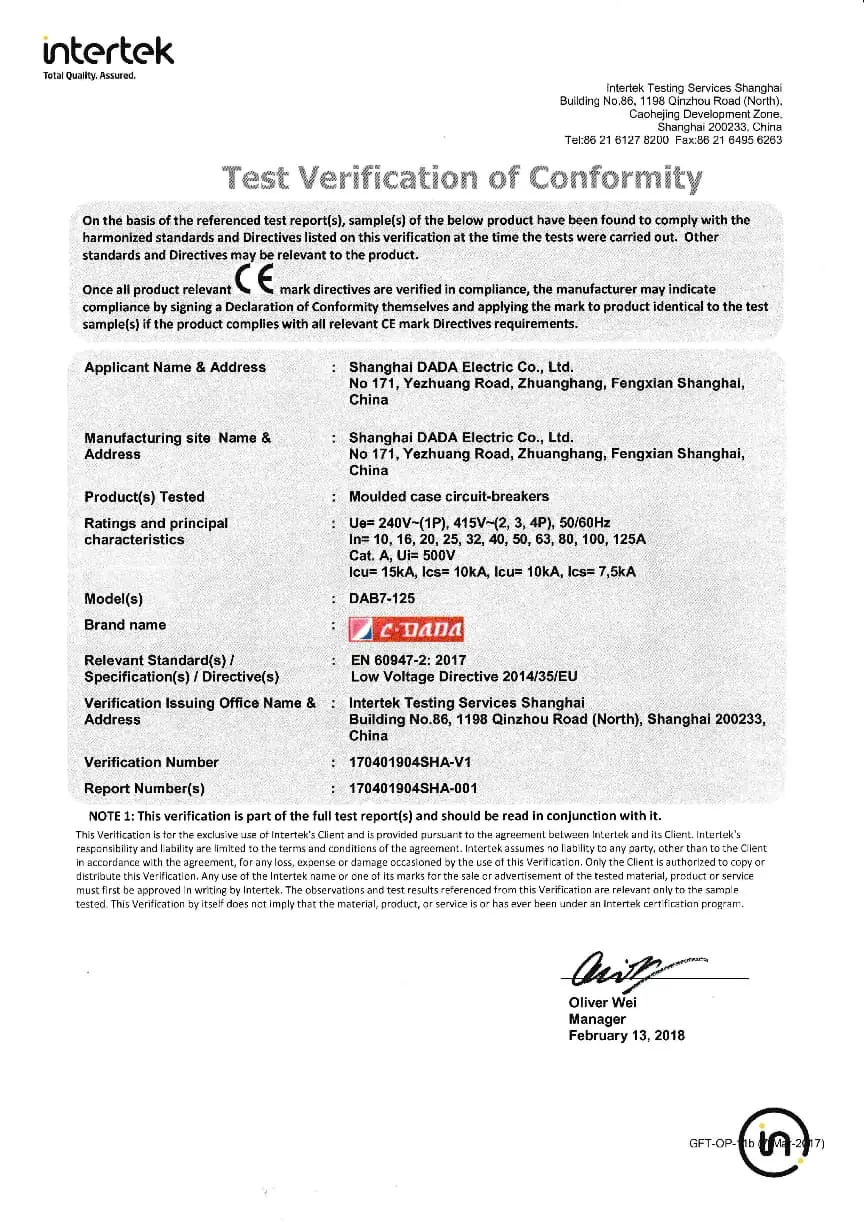

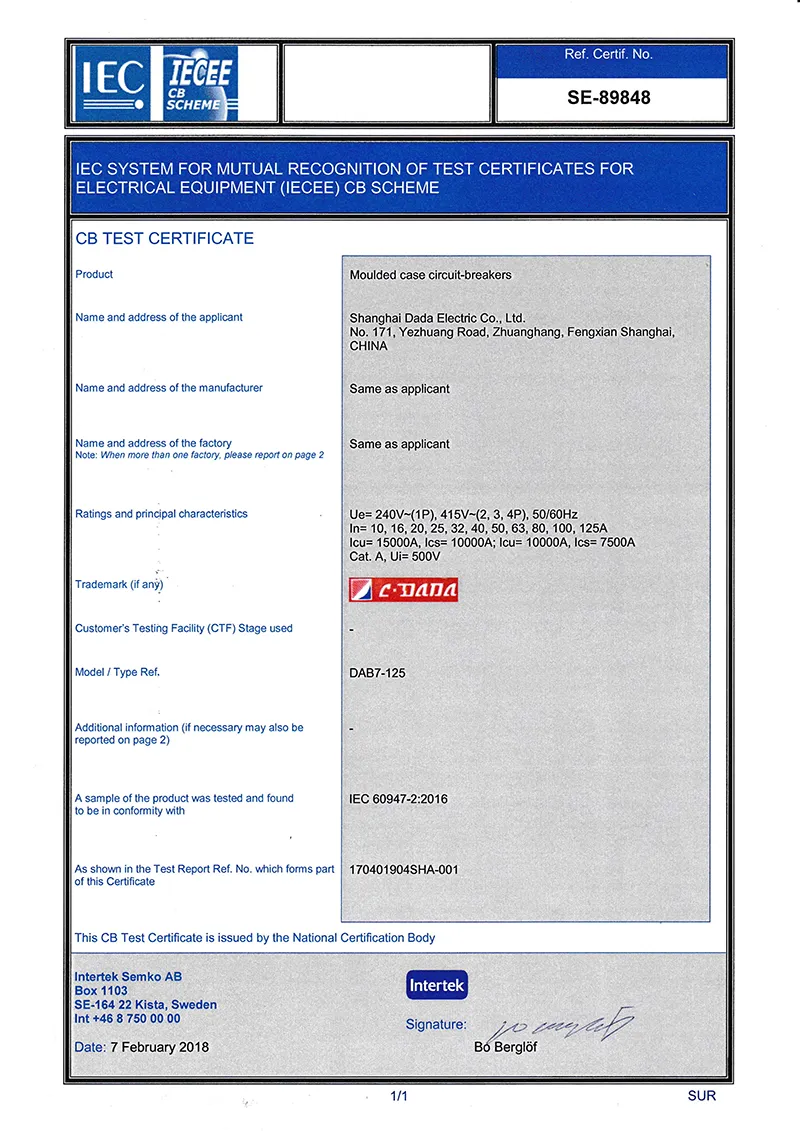

Nā palapala hōʻoia
CE, CB, IEC60898-1, ISO9001, CCC, ROHS
Hoʻopili a me ka hoʻouna ʻana
★ pahu pahu hoʻokuʻu maʻamau + pale i loko o ka shockproof
★ pūʻulu pūʻulu no kēlā me kēia huahana
★ Lepili akaka: kumu hoʻohālike, kēia manawa, pole, nui, palapala hōʻoia
★ He kūpono no ke kai, ka ea, ka halihali ʻāina
★ Kākoʻo OEM ʻeke a me ka hōʻailona maʻamau
Nā noi a nā mea kūʻai aku a me nā hihia kūleʻa
★ Ka palekana kaapuni nui ma ʻEulopa, Asia Hema, Hikina Waena
★ Nui hale noho & hale kalepa e komo mai ana i ka mana
★ ka hui pū ʻana o OEM me nā hōʻailona uila honua
★ lako nui no ka manawa lōʻihi no nā mea hoʻolaha honua
★ Ka hāʻawi ʻana i ka mana no nā papahana ʻoihana ma ʻApelika a me ʻAmelika Hema
★ ʻO nā lako hana kiʻekiʻe e kākoʻo ana i nā hale hana a me nā mines

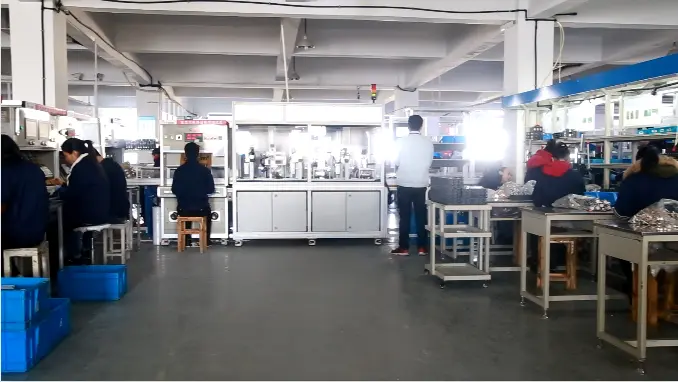

Ka ikaika o ka hale hana CDADA
★ 40+ makahiki ʻoihana R&D a me ka ʻike hana
★ 50,000 ㎡ kumu hana hou
★ Hoʻopili piha-akomi, stamping, welding, hui laina
★ 90% mau mea nui i hana ʻia i loko o ka hale
★ ʻOihana R&D hui & pūʻulu mana maikaʻi
★ ka hiki o ka mahina ma luna o 5 miliona mau ʻāpana
★ Hoʻopiha piha i ka hoʻomohala ʻana a me ka hiki ke hana maʻamau
No ke aha e koho ai i ka CDADA?
★ kūlana kūpaʻa, 100% nānā piha ma mua o ka hoʻouna ʻana
★ Ultra-kiʻekiʻe koina-hana, pani MCCB me ka haʻahaʻa kumu kūʻai
★ Hoʻouna wikiwiki, waihona nui no nā hiʻohiʻona maʻamau
★ kākoʻo ʻenehana loea & lawelawe ma hope o ke kūʻai aku
★ E ʻae i ka hana maʻamau OEM/ODM
★ Palapala hōʻoia honua, kūpono no nā mākeke honua
★ ʻO ka launa pū ʻana me nā mea kūʻai mai 80+ mau ʻāina

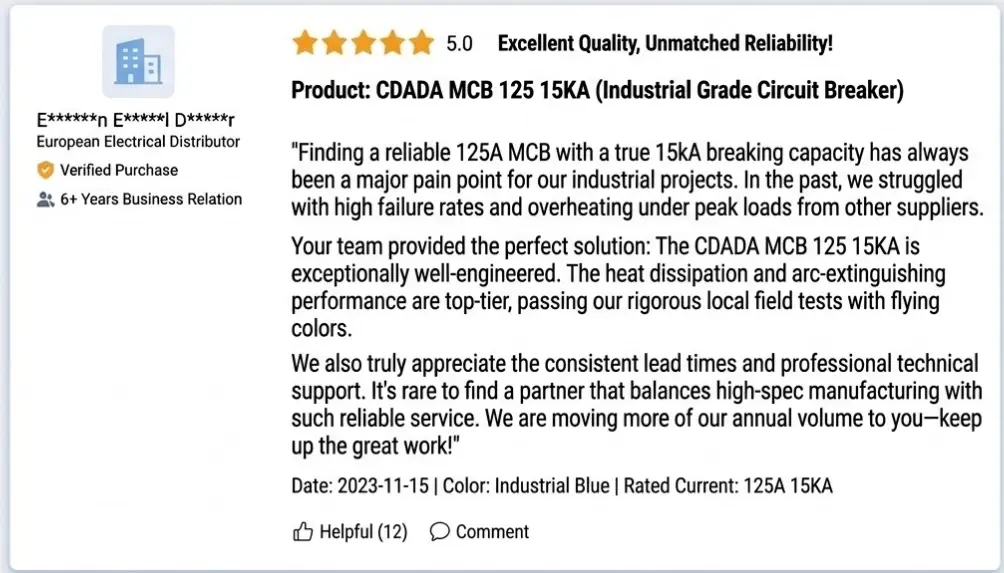

Manaʻo manaʻo o nā mea kūʻai aku
"ʻO CDADA 125 15KA Miniature Circuit Breaker he kūpaʻa a hilinaʻi, kūpono no kā mākou mau ʻoihana nui.
Hōʻailona Wela: 125 15KA kaapuni liʻiliʻi, Kina, mea hana, mea hoʻolako, hale hana
