Mea Hana Kiekie DC Circuit Breaker

CDADAhe mea hana hilinaʻi a me ka mea hoʻolako o DC circuit breakers. ʻO kā mākou huahana he kūlana kiʻekiʻe, hilinaʻi, a holomua ʻenehana. Hoʻoikaika mākou i ka hoʻomohala ʻana i nā hoʻonā kūpono no nā ʻoihana e like me ka ikehu hou, hāʻawi iā ʻoe i nā lawelawe OEM piha hoʻokahi.

He aha ka DC Circuit Breaker?

A Kaapuni kaapuni DC He mea pale kūikawā i hoʻolālā ʻia e hoʻopau i nā kaapuni o kēia manawa (DC) ma lalo o ke kaumaha, pōkole, a i ʻole nā kūlana hewa. ʻAʻole like me nā mea haʻihaʻi kaʻapuni AC e pōmaikaʻi ana i nā holo ʻole o kēia manawa (100-120 mau manawa i kēlā me kēia kekona ma 50/60Hz), pono nā mea haʻihaʻi DC e hoʻopau ikaika i kahi.hoʻomau, unidirectional arc ʻaʻole i loaʻa nā waiwai hoʻopau iā ia iho. Pono kēia ʻokoʻa koʻikoʻi i nā ʻenehana hoʻopau arc maʻemaʻe, e hana i nā mea haʻihaʻi DC i ʻoi aku ka nui, paʻakikī, a ʻoi aku ka pipiʻi ma mua o ko lākou mau hoa AC.

Ke hana nei nā mea hoʻoheheʻe kaapuni DC ma waena o nā pae uila mai12V a 1500V DC, me nā helu helu o kēia manawa2A a 2500A. Hoʻohana lākou ma ke ʻano he ʻāpana pale koʻikoʻi i nā ʻōnaehana photovoltaic solar (PV), nā ʻōnaehana mālama ikehu pākaukau (BESS), kaʻa uila (EV) e hoʻopiʻi ana i nā infrastru.cture, nā kikowaena ʻikepili me ka hāʻawi ʻana i ka mana DC, nā mana ʻenehana DC ʻoihana, a me nā ʻōnaehana uila moana.

Aia ka pilikia koʻikoʻi ma DC interruptionarc extinction physics: Mālama nā DC arcs i nā kolamu plasma kūpaʻa me nā mahana ma mua o 10,000°C, e koi ana i ka elongation ikaika, ka hoʻoluʻu, a me ka deionization ma o nā māla magnetic, arc chutes, a me nā mea pili kūikawā.

Māhele Huahana & Hoʻonohonoho

Hoʻokaʻawale	ʻAno	Kaulana o kēia manawa/Voltage	Nā ʻano nui
Ma ke kukulu ana	DCMCB (Liʻiliʻi)	2A – 125A, 250V – 1000V DC	Ke kau ʻana o ke kaʻaahi DIN, nā hoʻonohonoho huakaʻi paʻa, PV noho/kalepa
	DCMCCB (Hui Hoʻoheheʻe ʻia)	10A – 2500A, 500V – 1500V DC	Hiki ke hoʻololi ʻia nā ʻāpana huakaʻi, hiki ke haki nui, ʻoihana/pono
	DCACB (Kaapuni Kaapuni)	630A – 6300A, 1000V DC	Hoʻolālā huki, pale uila, hāʻawi mana
	Paʻa-State DC Breaker	100A - 5000A, a hiki i 1500V DC	Hoʻokumu ʻia Semiconductor, <1ms hana, ʻaʻohe arcing, uku uku
Ma ka helu Voltage	Voltage Haahaa	12V – 250V DC	Kaʻa, moana, kelepona
	Voltage Medium (PV Standard)	250V – 1000V DC	Nā kaula PV Solar, pahu hui, hale noho/kalepa
	Voltage Kiekie	1000V – 1500V DC	PV hoʻohana-nui, mālama ʻana i ka pākaukau, EV hoʻouka wikiwiki
Ma ka hoʻonohonoho ʻana i ka pou	1-Pole	250V DC	PV kaula hoʻokahi, DC ka uila haʻahaʻa
	2-Pole (Series)	500V – 750V DC	PV waena-volt, hoʻohui moʻo ʻelua-pole
	3-Pole	750V DC	ʻEkolu mau ʻōnaehana DC, ʻoihana kūikawā
	4-Pole (Series)	1000V – 1500V DC	ʻO PV kiʻekiʻe-volt, nā pahu pākaukau, nā ʻōnaehana EV
Na Trip Technology	Thermal-Magnetic	2A – 800A	Bimetallic overload + solenoid short-circuit, waiwai
	Electronic	100A – 2500A	Microprocessor-based, adjustable curves, kamaʻilio
	Magnetic Wale	10A – 100A	Pōkole wale, pale kaʻa, hana wikiwiki

Hoʻokohu Koʻikoʻi:Polarity Sensitivity Pono e kaha ʻia nā mea haʻihaʻi DCmaikaʻi (+) a maikaʻi ʻole (-) nā hopena, me nā hōʻailona kuhikuhi o kēia manawa. Hiki i ka hoʻokomo ʻana i ka polarity ke hopena i ka pōʻino ma muli o ke ʻano asymmetric arc.

Nā Hana Koʻikoʻi a me ke Kumu Hana

ʻO ka DC Arc Challenge

ʻAʻole e like me nā arcs AC e pio maoli ana i ka holo ʻole o kēia manawa, hōʻike nā arcs DC i nā pilikia hoʻopau kūʻokoʻa:

ʻĀpana	AC Arc	DC Arc
ʻano nalu o kēia manawa	Sinusoidal, hala ʻole i kēlā me kēia 10ms (50Hz)	Hoʻomau, ka nui mau
Voli uila	Kūlike me ka manawa	Paʻa, pono e hoʻopau ʻia
Hoʻopau ʻia ʻo Arc	Kūlohelohe i ka hele ʻole	Pono ka hoʻolōʻihi ʻia + hoʻoluʻu
ʻEhu ikehu	Pulsed, haʻahaʻa haʻahaʻa	Hoʻomau, wela wela
Hoʻopili i ka lole	Kaumaha	Koʻikoʻi me ke kinai pono ʻole
ʻAha i koi ʻia	ʻoi aku ka liʻiliʻi	2-3× ka nui no ka volta like

Nā ʻenehana hoʻopau ʻana o Arc

ʻenehana	Mechanism	Palapala noi	hana
Pahu Mākēneki	ʻO ka ikaika Lorentz F = I × L × B e hoʻolele i ke arc i loko o nā papa māhele ma 50-200 m/s	Universal no DC MCB/MCCB	ʻO ka mea maʻamau, kumukūʻai, 10-20kA haki
Arc Chute me na Papa Mahele	Hoʻokaʻawale ʻia ʻo Arc i nā ʻāpana moʻo, hoʻoluʻu, deionized	Maʻamau i nā mea haʻihaʻi DC āpau	Mea nui, hāʻule uila no ka pā 30-50V
Mākēneki mau	Nā mākēneki NdFeB (0.1-0.3T) kū pololei i ke ala arc	Nā MCB DC paʻakikī	No external power, temperature-stable to 150°C
Puka Puka Electromagnetic	Hoʻokumu ka coil hoʻoikaika ponoʻī iā ia iho e like me ke ʻano o ka hewa	Nā MCCB kiʻekiʻe o kēia manawa	Piʻi ka ikaika me ka pale adaptive o kēia manawa
Hoʻopiʻi ʻana i ka ʻūhā	Hoʻopio ʻia ʻo Arc i loko o ka ʻūhā (ʻaʻohe ionizable medium)	High-voltage DC, kūikawā	Maikaʻi no> 1000V DC, ola lōʻihi, pipiʻi
Pahū Lewa	Hoʻomaʻalili ka ea i hoʻopaʻa ʻia	ʻOihana mana kiʻekiʻe, hoʻoilina	ʻO ka mālama kiʻekiʻe, kakaʻikahi i hoʻohana ʻia i nā hoʻolālā hou

Pilikino Puka Mākēneki

Hoʻoponopono ka Lorentz force quation i ka hoʻopololei ʻana i ka arc DC:

F = I × L × B

Ma hea:

F = Ka ikaika ma ke arc (Newtons)

I = ʻAha manawa (Amperes)

L = ʻAka lōʻihi (mika)

B = Mākēneki hoʻoheheʻe ʻana (Tesla)

Ka Laʻana Helu:

ʻO Arc kēia manawa: 1000A

ʻAha lōʻihi: 0.02m (2cm)

Mākēneki kahua: 0.2T

Kaha: F = 1000 × 0.02 × 0.2 = 4N

Holo wikiwiki: a = 4N / (5×10⁻⁴ kg/m × 0.02m) = 400,000 m/s²

ʻO kēia wikiwiki nui e hoʻoneʻe i ke arc i loko o nā papa hoʻokaʻawale i loko o nā milliseconds, kahi i hoʻokaʻawale ʻia, hoʻoluʻu, a pio.

Kaiapuni noi a me nā hihia hoʻohana

Māhele ʻOihana	Hoʻohana kikoʻī	Nā kikoʻī maʻamau	Koi ko'iko'i
Solar PV (Noho)	Pale kaula, pahu hui	10A-32A, 250V-500V DC, 2-māʻau, ʻAno C ka pihi	ʻO ka pale ʻana o UV, IP65 paʻa, 20kA Icu
PV Solar (Kalepa)	ʻO ka pahu hui nui, ka pale inverter	63A-125A, 500V-1000V DC, 4-māʻau, 10-20kA Icu	ʻO ka ambient kiʻekiʻe (60°C), kū i kēia manawa hoʻohuli
PV o ka lā (mea hoʻohana)	Mea hoʻohuli kikowaena, hōʻiliʻili DC	250A-800A, 1000V-1500V DC, DC MCCB, 50kA Icu	Hoʻohui koho, nānā mamao
Waihona Puke Puke	Ka pale ʻana i ka pahu pahu, DC bus	125A-630A, 750V-1500V DC, huakaʻi uila, 4 pole	Pale ʻaoʻao ʻelua, kiʻekiʻe pōkole-kaapuni au
Hoʻouka EV	ʻO DC ka hoʻopaʻa hoʻoili wikiwiki wikiwiki, ke kikowaena pākaukau	200A-400A, 500V-1000V DC, hoʻomanawanui kiʻekiʻe	ʻO ka hana pinepine, hoʻonui nui, palekana SIL 2
Nā kikowaena ʻikepili	380V DC puunaue, UPS pale	63A-250A, 380V DC, haʻihaʻi kiʻekiʻe, haʻahaʻa ka ikehu hoʻokuʻu	ʻO ka liʻiliʻi haʻahaʻa, koho koho
Kaʻa Kaʻaahi	Metro, tram, kaʻaahi DC lako	1000A-4000A, 750V-1500V DC, DC ACB	ʻO ka hoʻomanawanui mechanical kiʻekiʻe, ke kū'ē i ka vibration
Moana/Ma waho	Hoʻokaʻawale moku DC, nā paepae waho	100A-400A, 500V DC, pale ʻino	Paakai paʻakai, tropicalized, redundant tripping

Ke Kaʻina Hana Hana a me ka Hana Hana Hana

Ka Papa Hana Pono

Mea IQC → Hoʻopili Pūnaewele Hoʻopili → Arc Chute Assembly → Hoʻohui Pūnaehana Magnetic → Mechanism Assembly → Trip Unit Calibration → Primary Assembly → High-Current Testing → Final QC → Packaging

Nā ʻanuʻu hana koʻikoʻi

Ke kahua	Kaʻina hana	Nā Lae Mana Mana
Hoʻokaʻaʻike hana	Kālā-tungsten (AgW 70/30) a i ʻole copper-tungsten (CuW 80/20) nā ʻōlelo aʻoaʻo hoʻopili, hoʻopaʻa ʻia i nā mea lawe keleawe, holoi ʻana i ka geometric forming.	ʻO ka paʻakikī HV 120-180, ke kū ʻana o ke arc erosion, ke kūpaʻa hoʻopili <1mΩ, ka ikaika paʻa ʻana > 80MPa
Hana ʻia ʻo Arc Chute	ʻO nā papa ʻāpana seramika (6-15 mau papa e pili ana i ka volta), nā mea holo hao kila, ka hoʻohui ʻana i ka magnet mau loa, ka geometry arc chamber optimized	Ka ikaika dielectric >3kV, ka manawa ho'opio arc <10ms, mānoanoa flux 0.15-0.25T
Pūnaehana Pahu Mākēneki	NdFeB hoʻokomo magnet mau (N52 grade), pole piece machining, magnetic circuit optimization, pānaʻi wela.	ʻO ka nui o ka flux ± 10% ka hoʻomanawanui, ka helu wela -0.1%/°C, ka pale demagnetization
Hui Mechanism	ʻO ka hoʻololi wikiwiki/wikiwiki, ka mālama ʻana i ka ikehu puna, ka pilina huakaʻi ʻole, nā puna wai kaomi	Hoʻokaʻaʻike wikiwiki wehe ʻana >1.2 m/s, hoʻomanawanui mechanical 20,000 pōʻai, manawa huakaʻi <20ms
Hoʻolālikelike ʻana i ka ʻāpana huakaʻi	ʻO ka calibration element thermal bimetallic (± 5% pololei), ka hoʻonohonoho ʻana i ka solenoid gap magnetic, ka hōʻoia ʻana o ka pihi manawa	1.05×I ka huakaʻi ʻole, 1.25×I ka huakaʻi <1h, 5×I ka manawa koke, logging ʻikepili
Hoʻāʻo Kiʻekiʻe-I kēia manawa	ʻO ka hoʻāʻo ʻana i ka hoʻāʻo ʻana ma 10kA-20kA, hōʻoia hoʻopau arc, ana piʻi wela.	Ka hōʻoia ʻana i ka hiki, hoʻopili i ka lole <5% ma hope o ka hoʻāʻo, hoʻihoʻi dielectric

Nā Mea Kiʻekiʻe a me nā mea kiko'ī

ʻāpana	Mea kiko'ī	Nā Kūlana Mea Hoʻolako	Na Waiwai Ki
Nā Hoʻopili Nui	Kālā-tungsten (AgW 70/30) a i ʻole keleawe-tungsten (CuW 80/20)	ASTM B702, IEC 60368	Kiʻekiʻe arc erosion kū'ē, anti-weld, conductivity 45-55% IACS
Nā Papa ʻAka ʻAka	Alumina ceramic (Al₂O₃ 95%) a i ʻole steatite	IEC 60672	Ke kū'ē i ka wela> 1200°C, ikaika dielectric> 15kV/mm, arc quenching
Mākēneki mau	NdFeB N52 (Neodymium-Iron-Boron)	IEC 60404-8-1	Hoʻomau 1.48T, coercivity >1000kA/m, paʻa ka mahana i 150°C
Nā ʻāpana Mākēneki	Ke kila kalapona haʻahaʻa 1008 a i ʻole ke kila silika	ASTM A1008	Kiʻekiʻe permeability, haʻahaʻa remanence, magnetic flux alakaʻi
Pahu Hoʻoheheʻe ʻia	BMC (DMC-2) thermosetting a i ʻole PA66 GF30	IEC 60664-1, UL 94 V-0	Helu helu helu>600V, pale wela 180°C, hoʻopaʻa ʻia arc
Hoʻokaʻaʻike Puna	Ke keleawe Beryllium (CuBe2) a i ʻole ke kila kila 301	ASTM B196	ʻO ke ola luhi> 50,000 mau pōʻaiapuni, paʻa paʻa, pale ʻana i ka corrosion
Nā ʻōkuhi	Copper C11000 me ke tini a i ʻole ka uhi kālā	ASTM B187	ʻO ka nui o kēia manawa 1.5-2.0 A/mm², ke kūpaʻa hoʻopili haʻahaʻa, ke kūpaʻa ʻana
Nā ʻĀpana Bimetallic	Inconel/passivated kila composite	ASTM B388	0.2mm/°C, kūpaʻa ± 3%, pololei ka hoʻoponopono ʻana ±5%
Nā Mea ʻEleke (no nā ʻāpana huakaʻi uila)	Nā PCB papa hana ʻoihana, nā mea ʻike Hall, nā mea hana ARM	IEC 60721-3-3	-25°C a i +70°C ka hana, EMC Level 3, SIL 2 hiki

Nā Kūlana Kūlana & Nā Kūlana Ho'āʻo

Nā Kūlana Kūlana Kūikawā

Kūlana	ʻĀpana	Nā helu kūpono
IEC 60947-2	Mea hoʻololi uila haʻahaʻa - Nā mea haki kaapuni (me DC)	Kūlana maʻamau no nā mea haʻihaʻi DC a hiki i 1500V DC
IEC 60898-2	Nā mea hoʻopau kaapuni no ka hana DC (hale)	Nā MCB DC a hiki i ka 125A, 220V DC (1-pole), 440V DC (2-pole)
IEC 61643-31	Nā SPD no nā noi photovoltaic	ʻO ka hui pū ʻana o ka pale ʻana o DC me nā mea haʻihaʻi
GB/T 14048.2	Kūlana aupuni Kina	Ka palapala hōʻoia CCC no ka mākeke Kina

Nā koi hoʻāʻo DC koʻikoʻi:

ʻO ka hoʻāʻo koʻikoʻi hoʻouka DC i kēia manawa: Ka hōʻoia ʻana o ka ʻoki ʻoki ʻia kahi e piʻi nui ai ka manawa arcing

Hiki i ka haʻihaʻi pōkole: Hoʻāʻo ʻia ma ka ʻoi loa o ka volta DC me ka manawa mau (L/R ratio)

ʻO ka hoʻokō kaumaha: Hōʻoia i ka huakaʻi wela ma 1.45×In no 1 hola

Nā hoʻāʻo ʻano koi (IEC 60947-2 no DC)

Māhele hoʻāʻo	Ho'āʻo kikoʻī	Koina ʻae
Piʻi wela	Ke kū mau nei ma ka helu In	Nā pahu ≤80K (kālā), ≤65K (ʻole), pahu ≤40K
Na waiwai dielectric	ʻO ke alapine o ka mana ke kūpaʻa (2.5kV-3.5kV/1min), hoʻoulu (8kV)	ʻAʻohe haki, ʻaʻohe flashover
Nā hiʻohiʻona hele wāwae	Hoʻonui: 1.05×In (ʻaʻohe huakaʻi), 1.25×In/1.45×In (huakaʻi i loko o nā palena)	ʻO nā manawa hele maʻamau i kēlā me kēia pihi
	Kaapuni pōkole: 5×In, 10×I ka huakaʻi koke	<20ms hana
Hana Hana	Mechanical: 20,000 cycles; Uila: 10,000 pōʻaiapuni	<5%.
Pokole Kaapuni	Icu (hopena), Ics (lawelawe) ma ka helu ʻana o ka volta DC	Hoʻopau kūleʻa, ʻaʻohe hoʻopili hoʻopili
Koʻikoʻi DC Hoʻouka ʻia	Ka hōʻoia o nā palena manawa arcing	ʻAʻohe hoʻokalakupua nui i loko o ka pae helu
Hōʻoiaʻiʻo Puka Magnetic	Arc extinction time, arc chamber integrity	<10ms arc lōʻihi, ʻaʻohe keʻena haki
Kaiapuni	Pumehana wela, anu, wela maloʻo, haʻalulu	Hoʻohana ma hope o ka hoʻomaʻamaʻa ʻana

Nā Kūlana Kūlana Kūlana o ka Hale Hana

QC mea komo mai (IQC)

Mea waiwai	Nā mea nānā	Hoʻolālā Laʻana	Mea lako
Nā ʻōlelo aʻoaʻo pili tungsten	ʻO ka ʻeleʻele, ka paʻakikī, ka ʻike kālā, ka hoʻomanawanui ʻana	I kēlā me kēia pūʻulu	Spectrometer, mea hōʻike paʻakikī, CMM
NdFeB magnet	Remanence, coercivity, coefficient mahana, plating	I kēlā me kēia pūʻulu	Hysteresisgraph, Helmholtz coil
Nā pā seramika	ʻO ka ikaika dielectric, ke kūpaʻa haʻalulu wela, nā ana	I kēlā me kēia pūʻulu	ʻO ka mea hōʻike dielectric, keʻena haʻalulu wela
Nā mea lawe keleawe	Conductivity, paʻakikī, ka mānoanoa plating	I kēlā me kēia pūʻulu	ʻO ka mika conductivity, micrometer, XRF
ʻO ka plastic thermosetting	ʻO ke aniani maʻiʻo, viscosity, cure time, flammability	I kēlā me kēia pūʻulu	DSC, mea hoʻoheheʻe kahe kahe, UL 94 mea hana

Ka Mana Mana Pono (IPQC)

Kūlana	Nā ʻāpana hoʻomalu	Ka pinepine	Kaʻina hana
Hoʻopili brazing	ʻO ka mahana 800-850 ° C, ka lewa, ka ikaika hui	ʻO kēlā me kēia 100 ʻāpana	Thermocouple, shear tester, metallography
Hoʻokomo magnet	ʻO ka hōʻoia ʻana o ka polarity, ka nui o ka flux, ke kau ʻana	ʻO kēlā me kēia ʻāpana	ʻO ka mika flux, ʻōnaehana ʻike
ʻAha hui ʻauʻau	ʻO ka hakahaka o ka pā, ka hoʻopololei magnet, ke ʻano o ka runner	ʻO kēlā me kēia 50 ʻāpana	ʻO nā anana hele/ʻaʻole hele, ka palapala ʻāina hoʻopaʻapaʻa
Mechanism calibration	ʻO ka māmā wehe, ke kaomi pili, ka ikaika huakaʻi	ʻO kēlā me kēia ʻāpana	ʻO ka pahupaʻikiʻi kiʻekiʻe, ke ana ʻana i ka ikaika, ka pae ʻakomi
Hoʻāʻo ʻāpana huakaʻi	ʻO ka pihi manawa-manawa, ka huakaʻi koke, ka uku ambient	ʻO kēlā me kēia ʻāpana	ʻO ka mea hoʻāʻo injection mua (10,000A), ka hoʻopaʻa inoa ʻikepili

Mana Mana Mana Loa (FQC) & QC Puka (OQC)

Mea hoao	Kūlana	Laʻana Laʻana
Hōʻoia hōʻailona polarity	Pololei +/-/ka kaha kuhikuhi o kēia manawa	100%
Kū'ē pili	<1mΩ no ka pou	100%
ʻO ka dielectric e kū i ka uila	2.5kV AC/1min	100%
Kūleʻa hoʻokaʻawale	>100MΩ @ 500V DC	100%
ʻO nā hiʻohiʻona hele wāwae	1.05×In, 1.25×In, 5×In, 10×In ka hōʻoia	100%
ʻO ka hana hoʻoheheʻe magnetic	ʻO ka hoʻāʻo hoʻopau ʻana o Arc ma ka helu ʻia	100%
Hana mīkini	10 ON-OFF pōʻai, hana maʻalahi	100%
Nānā hiʻona a me ka nui	Clearance, creepage, marking permanente	100%
Kiʻekiʻe-i kēia manawa sampling	Ka hōʻoia ʻana i ka hiki ke haki (10kA)	AQL 0.65
Hoʻopaʻa paʻa	Ho'āʻo hāʻule, haʻalulu (ISTA 3A)	Ma ka hailona

Hana Hana & Hana Hana

Nā lako hana kiʻekiʻe

Māhele Lako	ʻIkepili mīkini	Hana	Ka hiki
Hoʻokaʻaʻike hana	Puhi kapuahi maloo (10⁻³ mbar, 900°C)	ʻO ka hoʻopaʻa ʻana o ka tungsten me ke kala kala	5,000 mau hoapili / lā
Hui Magnet	Hoʻokomo ʻia ka magnet me ka ʻike polarity	NdFeB hoʻohui magnet, hōʻoia flux	3,000 hui / lā
ʻO Arc Chute Production	ʻO ke kaomi ʻana i ka pā seramika, ke kī ʻana, ka metala	ʻO ka hana ʻana o ka pā ʻāpala	10,000 papa / lā
Hui Mechanism	Nā hale hui limahana	Kiʻekiʻe-wikiwiki hui, calibration	2,000 ʻāpana/lā no ka laina
Lako Hoao	ʻO ka hoʻāʻo hoʻāʻo ʻana mua (20,000A DC mana)	Hōʻoia huakaʻi kiʻekiʻe	300 ʻāpana / lā
	Keena ho'āʻo hoʻopau Arc (kiʻi kiʻi wikiwiki)	Ka nānā 'ana i ka hana arc, hō'oia blowout	50 mau ʻāpana / lā
	Keena ho'āʻo kaiapuni (ka wela, haʻahaʻa, haʻalulu)	IEC 60068-2 hoʻokō	100 ʻāpana / lā

Hana Hana & Manawa Manawa

Māhele Huahana	Hiki i kēlā me kēia mahina	Manawa alakai maʻamau	Hiki ke kauoha koke
DC MCB 1P/2P (10A-63A, 250V-500V)	200,000 mau ʻāpana	4-5 wikiwiki	5 lā
DC MCB 4P (63A-125A, 1000V)	100,000 ʻāpana	4-5 wikiwiki	7 lā
DC MCCB (125A-400A, 500V-1000V)	30,000 ʻāpana	4-5 wikiwiki	10 lā
DC MCCB (630A-1600A, 1000V-1500V)	10,000 ʻāpana	4-5 wikiwiki	2 pule
Kiʻekiʻe-volt DC (1500V+, kūikawā)	Kumu papahana	8-12 pule	4 pule

ʻEnekinia & ʻenehana Hui Pūʻulu

Oihana	Paahana	ʻike	Nā kuleana
R&D 'enekinia	5 nā ʻenekinia	DC arc physics, magnetic field simulation, contact materials, power electronics	ʻO ka hoʻomohala hou ʻana o ka mea hoʻoheheʻe DC, ke kōpili patent (35+ patents), ka hana hou HVDC
Kaʻina Hana Hana	20 ʻenekinia	ʻO ka hoʻoheheʻe ʻana i ka vacuum, ka hui magnet, ka hana seramika, ka automation	ʻO ka hoʻonui ʻana i ka hana, ka hoʻomaikaʻi ʻana i ka hua (> 98%), ka hoʻohui ʻana i ka ʻoihana 4.0
Ka ho'āʻo a me ka hōʻoia	15 enekinia	ʻO ka hoʻāʻo DC kiʻekiʻe i kēia manawa, ka loiloi arc extinction, simulation kaiapuni, EMC	ʻO ka hoʻonohonoho hoʻāʻo ʻano (IEC 60947-2), ka nānā ʻana i ka hemahema, hōʻoia
Hoʻohana ʻenehana	12 enekinia	Hoʻolālā PV Solar, ʻōnaehana mālama pākaukau, hoʻouka EV, DC microgrids	Kākoʻo ʻenehana mea kūʻai aku, hoʻolālā ʻōnaehana, hoʻonohonoho koho
Hōʻoia maikaʻi	30 ʻenehana	ISO 9001, ISO 14001, kaʻina kaʻina hana helu, ʻoihana metrology	Hoʻoponopono ka mea hoʻolako, loiloi kaʻina hana, hana hoʻoponopono, hoʻokele calibration

No ke aha e kū ʻokoʻa ai kā mākou hana ʻana i ka DC Circuit Breaker

Hōʻike kā mākou hale hana15 mau makahiki o ka hana kūikawā i ka pale kaapuni DC, e hāʻawi ana i nā mea haki i ʻoi aku ma mua o nā kūlana honua ma o:

ʻIke physics Arc: ʻO nā hoʻolālā hoʻolālā hoʻoheheʻe magnetic me ka geometry ikaika Lorentz maikaʻi loa, e loaʻa ana <10ms arc extinction ma 1500V DC

Hoʻohui kū pololei: I loko o ka hale tungsten-silver hoʻopaʻa ʻana i ka brazing, NdFeB hui magnet, a me ka ceramic arc chute hana e hōʻoiaʻiʻo ana i ka mana o ka maikaʻi.

Hoʻāʻo i nā ʻōnaehana: $4M+ i hoʻokomo ʻia i loko o nā keʻena hana DC kiʻekiʻe i kēia manawa hiki ke hoʻāʻo ʻia he 20,000A, hoʻopau ʻia ke kiʻi kiʻi kiʻekiʻe kiʻekiʻe (100,000 fps), a me ka simulation kaiapuni.

Nānā ikehu hou: Nā hoʻolālā kūikawā no ka PV solar (1000V-1500V), ka waiho ʻana o ka pākaukau (pale i ka bidirectional), a me ka hoʻopiʻi ʻana o EV (ke kū i ka inrush kiʻekiʻe)

ʻO ka hana hou o ka mokuʻāina paʻa: Hoʻomohala ʻana i nā mea haʻihaʻi DC e pili ana i ka semiconductor no ka hana <1ms i nā noi pale pākaukau koʻikoʻi

No nā kikoʻī kikoʻī, ka hoʻonohonoho ʻana o ka pale PV solar, ka hoʻolālā ʻana o ka ʻōnaehana mālama pākaukau, a i ʻole ka hoʻonohonoho ʻana i ka loiloi hale hana, hāʻawi kā mākou hui ʻenekinia i ke kūkākūkā pololei e hōʻoia i kāu ʻōnaehana mana DC e hoʻokō i nā koi palekana a me nā pahuhopu hilinaʻi hana.

View as

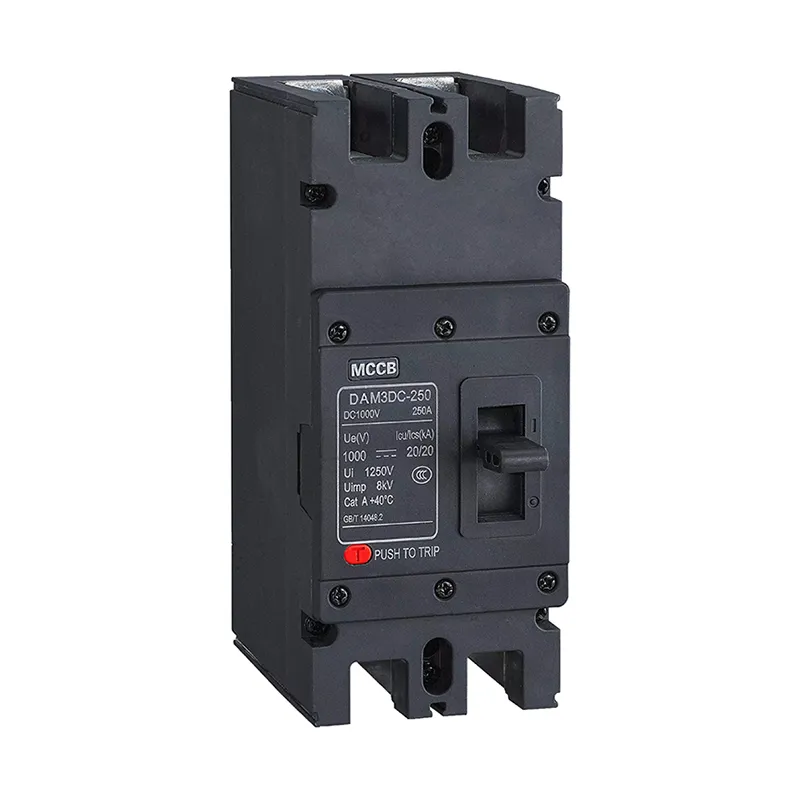

1000V DC i hoʻoheheʻe ʻia i ka hihia kaapuni

He mea hana pono ʻo CDADA ma Kina, hiki ke hāʻawi iā 1000V DC Molded Case Circuit Breaker ma ka honua holoʻokoʻa. Aia ia i ka 800A, IEC-compliant, no ka lā PV & DC grids. Nā koho 2P/4P, 20–40kA haʻihaʻi, me kahi kaʻawale a me nā mea pono. DIN a i ʻole ka mauna panel. Ua hilinaʻi ʻia e nā mea hoʻohui solar honua.

Nānā hou aku >> E hoʻouna i ka nīnau >>

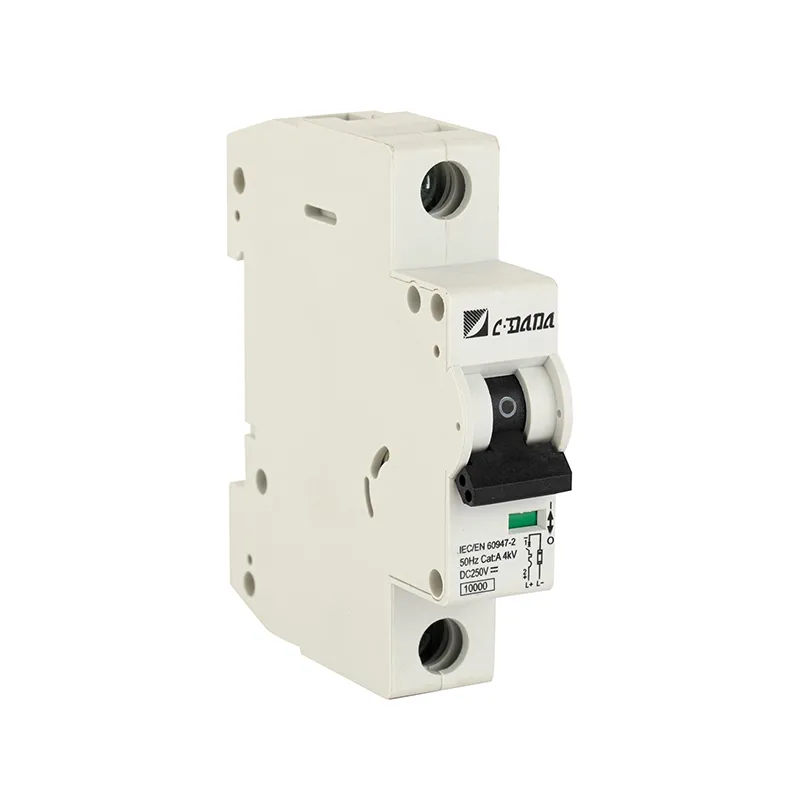

250V DC kaapuni kaapuni liʻiliʻi

He koho maikaʻi ʻo CDADA e lilo ʻoe i mea hoʻolako iā DAB7-63 250V DC Miniature Circuit Breaker 1P, 1–63A, me 6kA kaha haki. He kūpono kēia huahana no ka PV solar, telecom & DC system. Kau ʻia ʻo DIN-rail, me ka hōʻailona ON/OFF akaka a me ka hoʻokō RoHS. E ʻoluʻolu e kelepona mai iā mākou e kiʻi i kahi kumu kūʻai pololei.

Nānā hou aku >> E hoʻouna i ka nīnau >>

He Kaapuni Kaapuni DC mea hana a mea hoʻolako ʻo CDADA ma Kina. Hāʻawi kā mākou hale hana i nā ʻoihana like ʻole e like me nā ʻōnaehana mana, kūkulu ʻana i ka automation, a me ka hana ʻenehana, e hāʻawi ana i nā hoʻonā OEM/ODM maʻalahi.
