10KA AC kaapuni liʻiliʻi

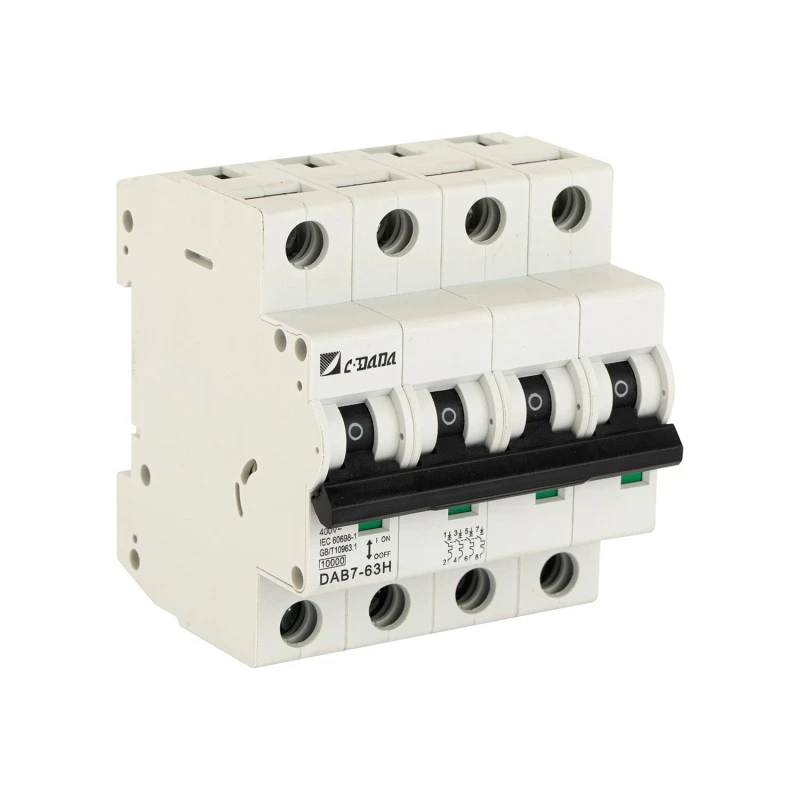

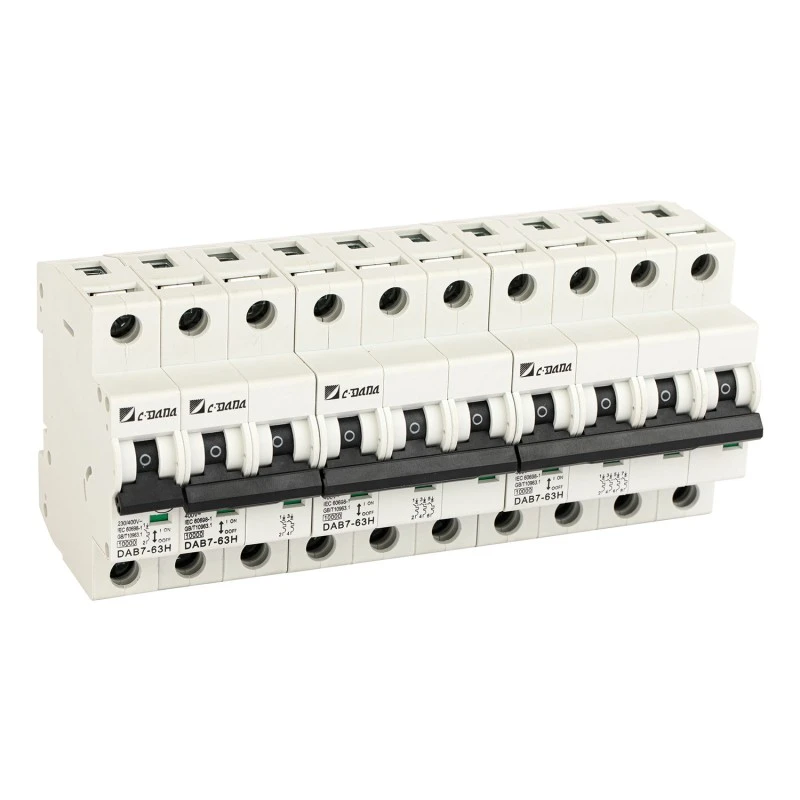

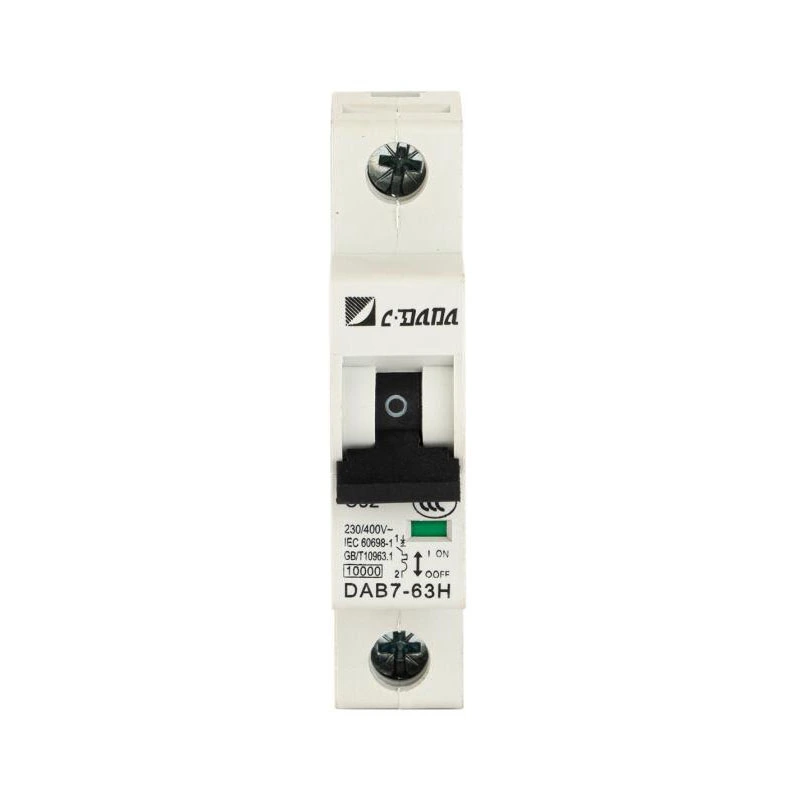

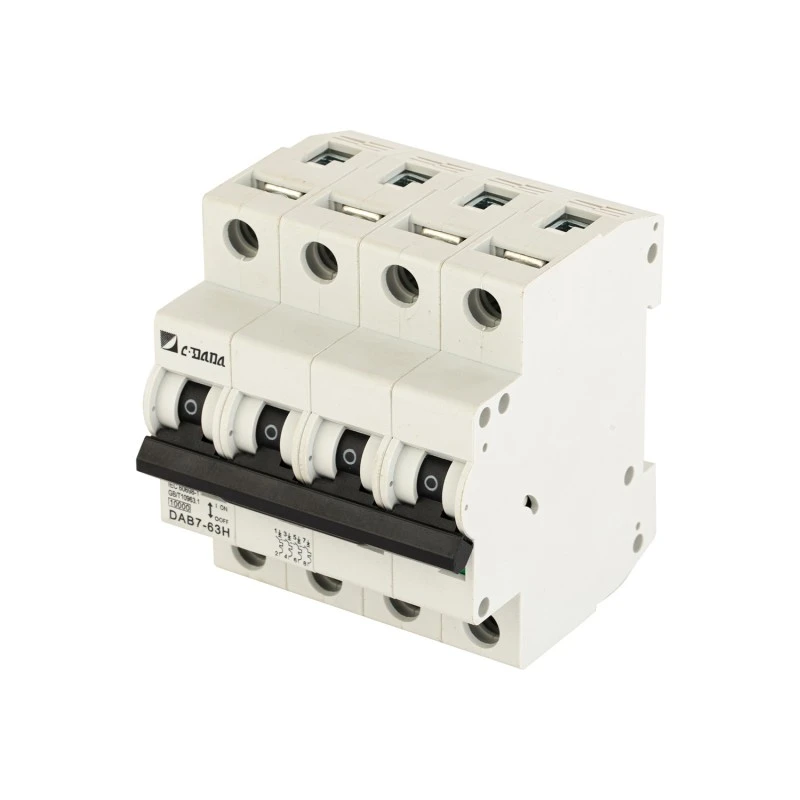

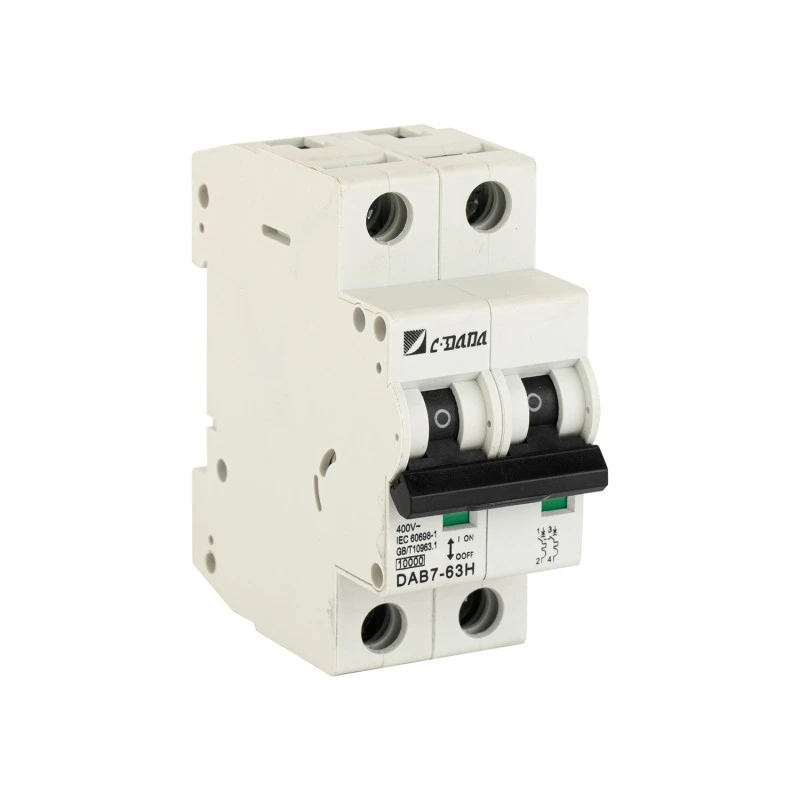

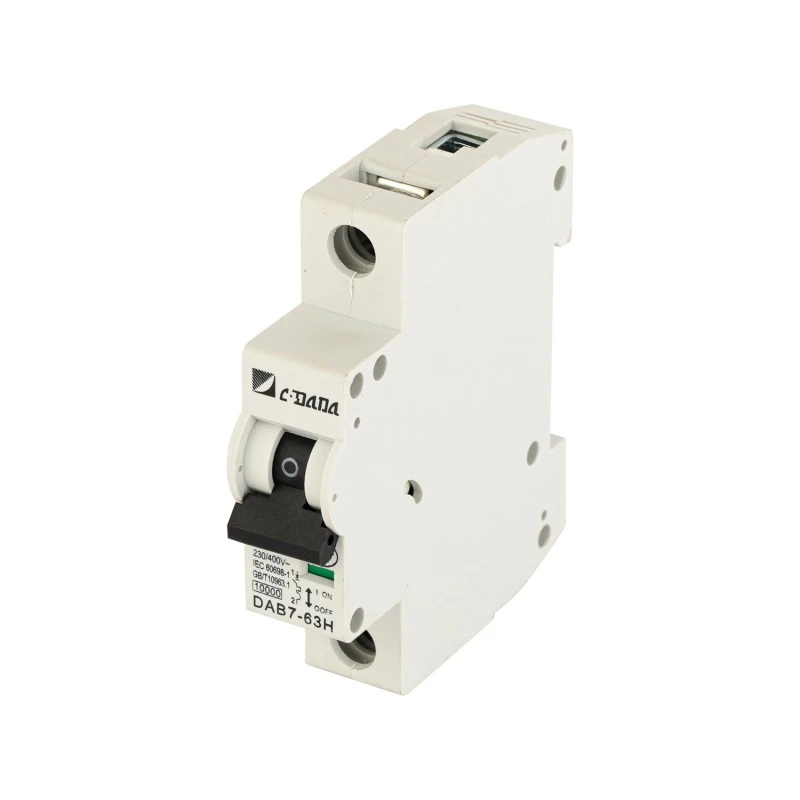

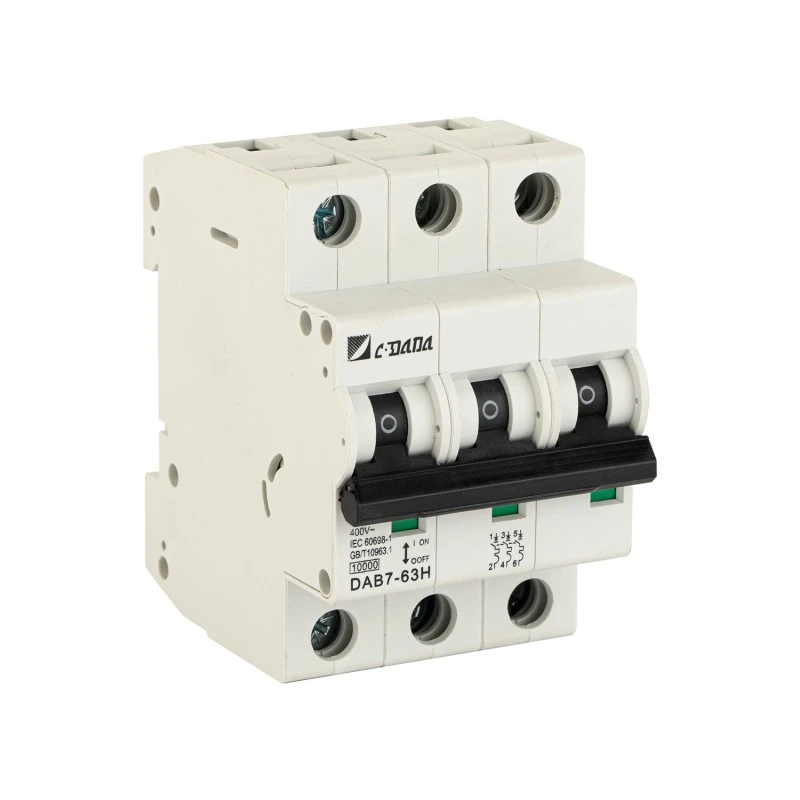

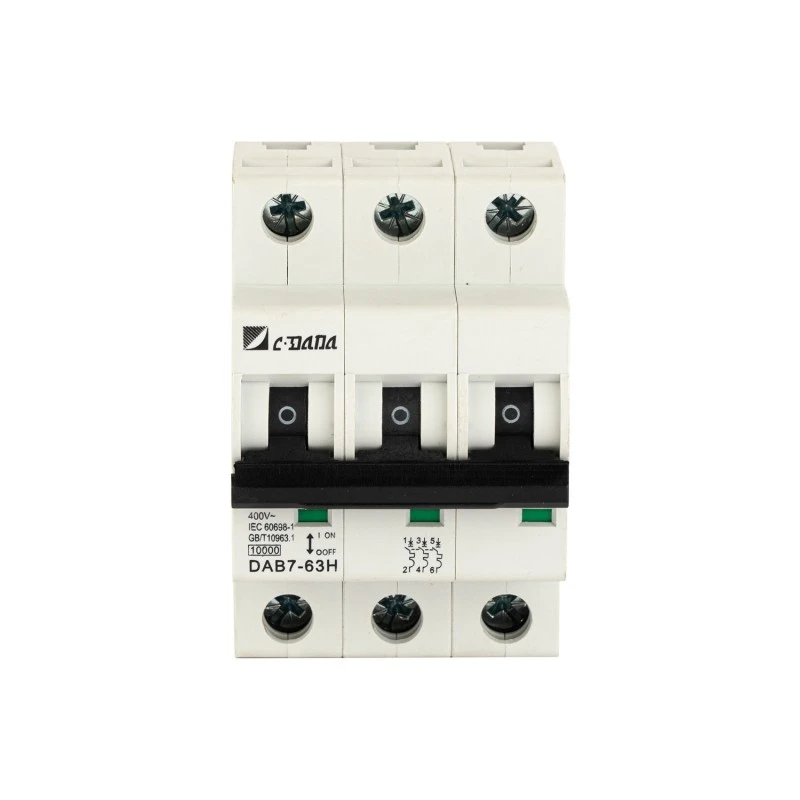

No nā noi koi ʻana i hiki ʻole ke kūʻai aku i nā au hewa kiʻekiʻe a me ka palekana i hoʻonui ʻia, hāʻawi ka CDADA DAB7-63H 10KA AC Miniature Circuit Breaker i ka pale ʻoihana ʻoihana ma kahi ʻano liʻiliʻi. Hoʻolālā ʻia e Shanghai DADA Electric CO., LTD., ua hoʻolālā ʻia kēia 10kA miniature circuit breaker no nā panela hui, nā papa hoʻolaha i nā hale noho, ʻoihana, a me nā ʻoihana māmā - hāʻawi ʻia i ka palekana thermal (overload) a me ka electromagnetic (short-circuit) ma waena o 8 mau helu o kēia manawa (6A–63A) a me 1P/2P/3P hoʻonohonoho.

Hoʻopaʻa ʻia iā CE, CB, ASTA, a me SEMKO, hoʻokō ia i nā kūlana palekana honua. Me kahi keʻena arc 13-papa kiʻekiʻe, mea hoʻopili pili kālā, a me nā koho pili ʻelua (PIN/FORK), ʻo ka DAB7-63H e hōʻoiaʻiʻo i ka hoʻopau wikiwiki ʻana, haʻahaʻa haʻahaʻa wela, a hoʻolōʻihi ʻia ke ola uila-ʻoiai ma lalo o ka hoʻololi pinepine ʻana a i ʻole ka wela ambient kiʻekiʻe.

Nā ʻōlelo kikoʻī

Ke Ana Hoʻohālike: DAB7-63H Series

ʻAno: AC Miniature Circuit Breaker (MCB)

Ka hikiwawe: 10kA @ 230/400V AC

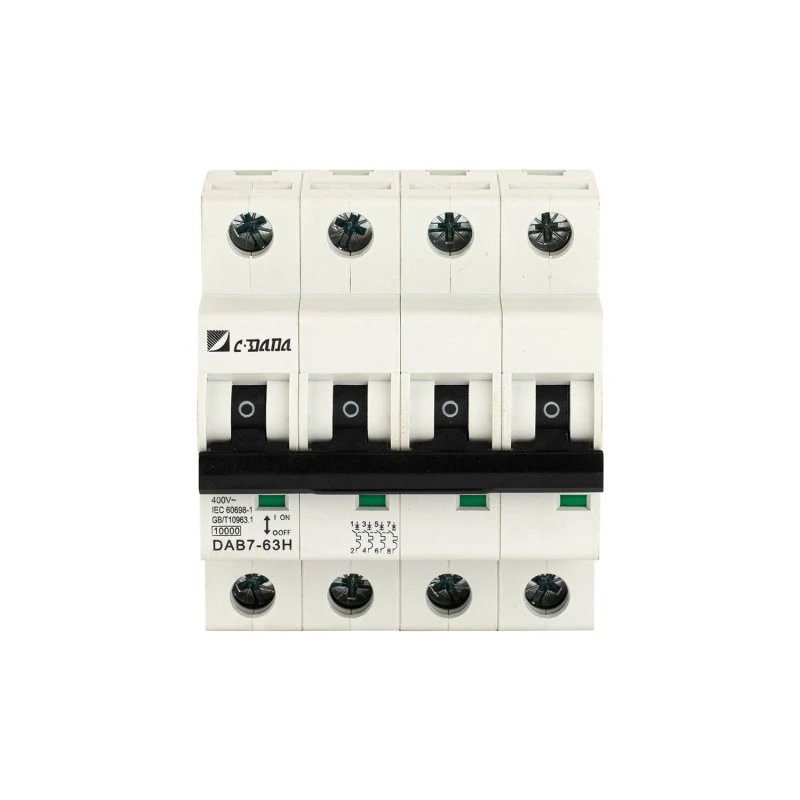

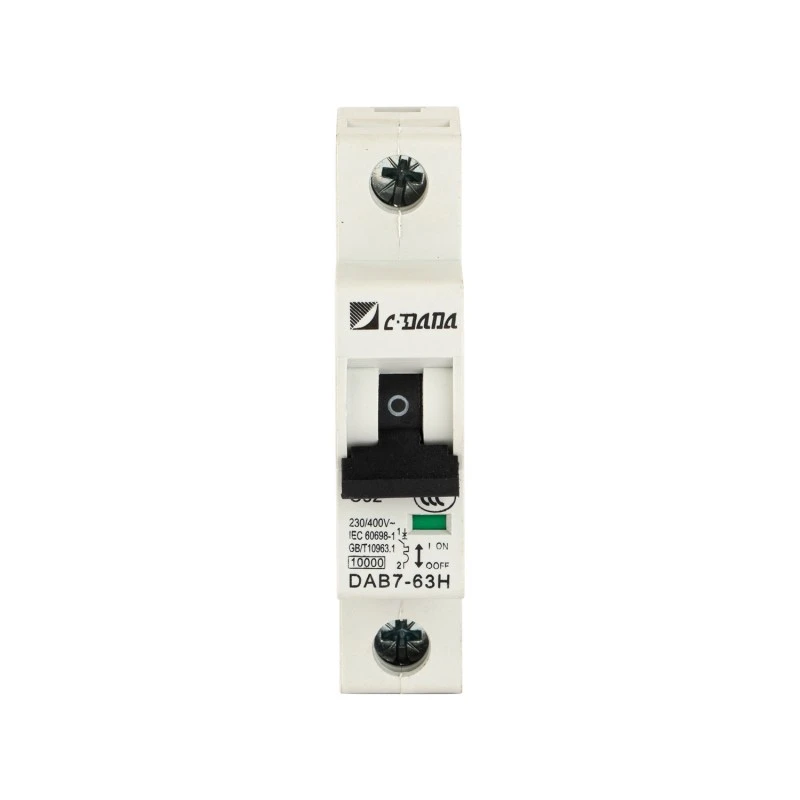

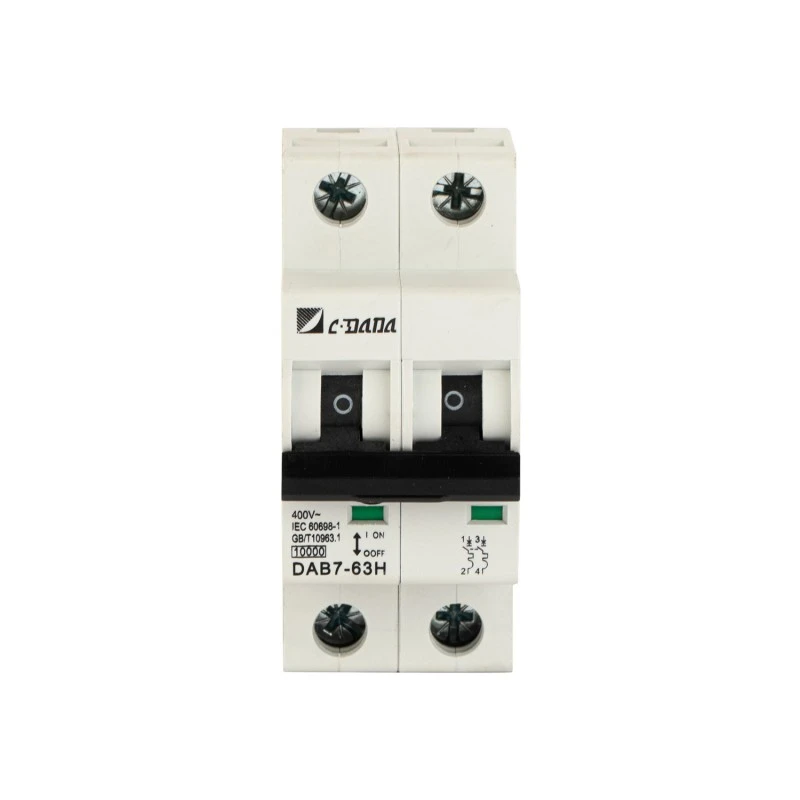

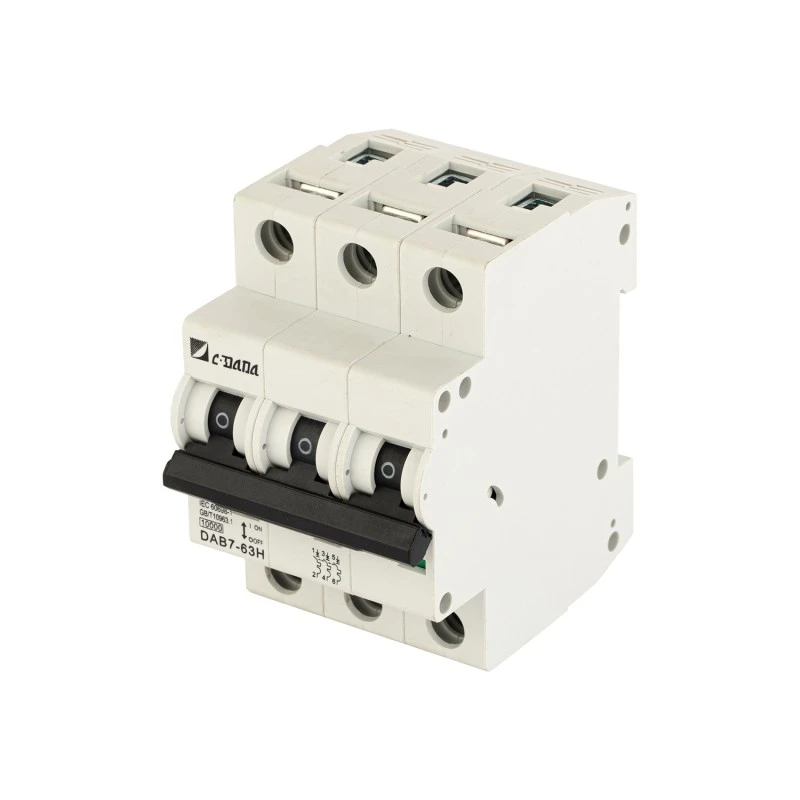

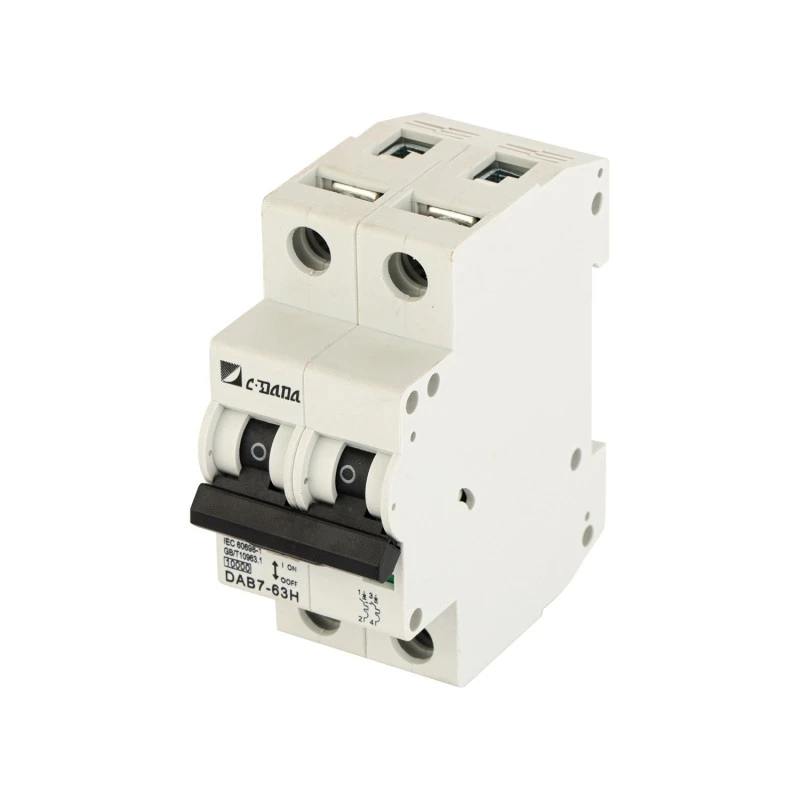

Pole: 1P, 2P, 3P

Helu ʻia i kēia manawa (Ma): 1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

Ka Mahana Hana: –40°C a i +50°C

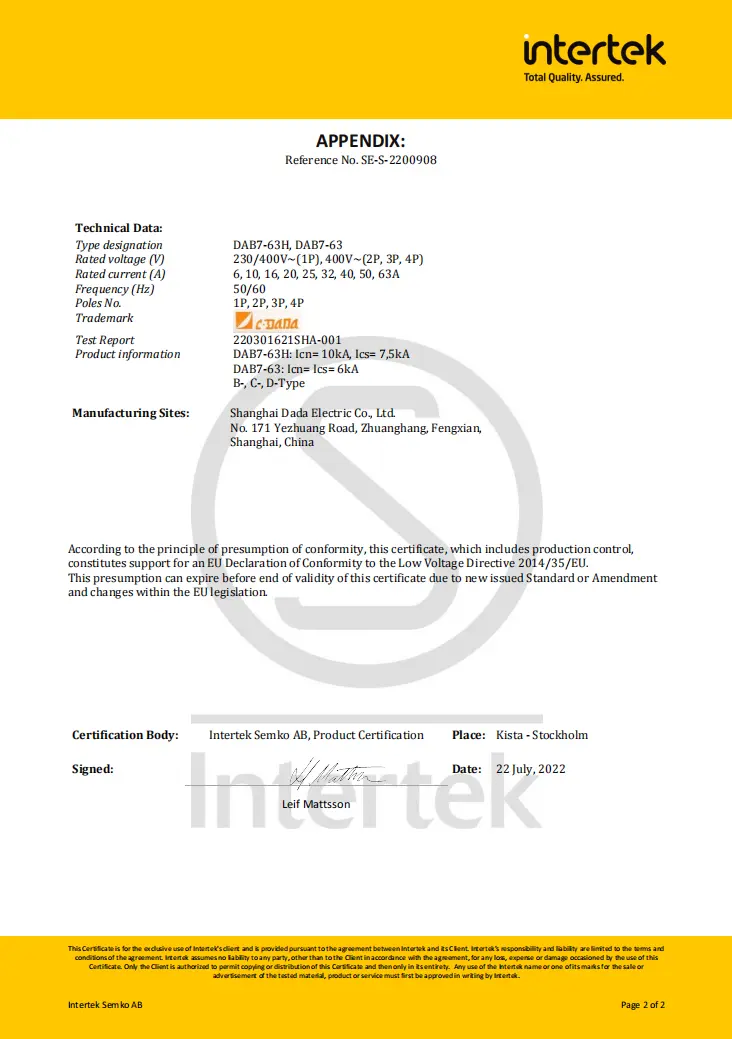

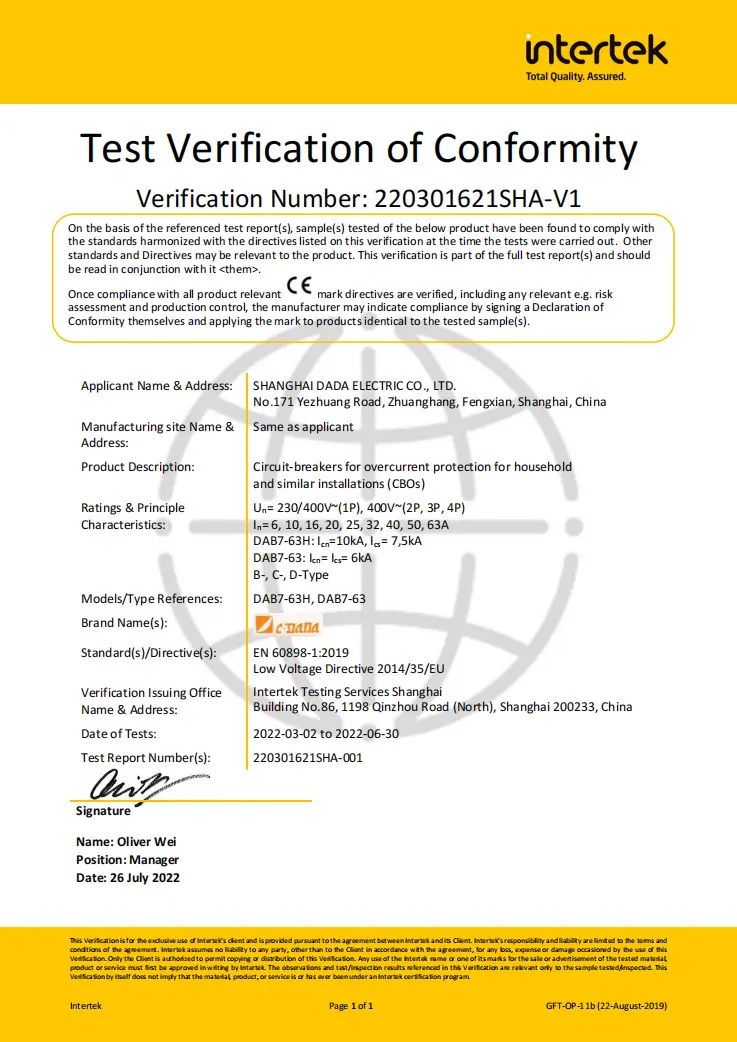

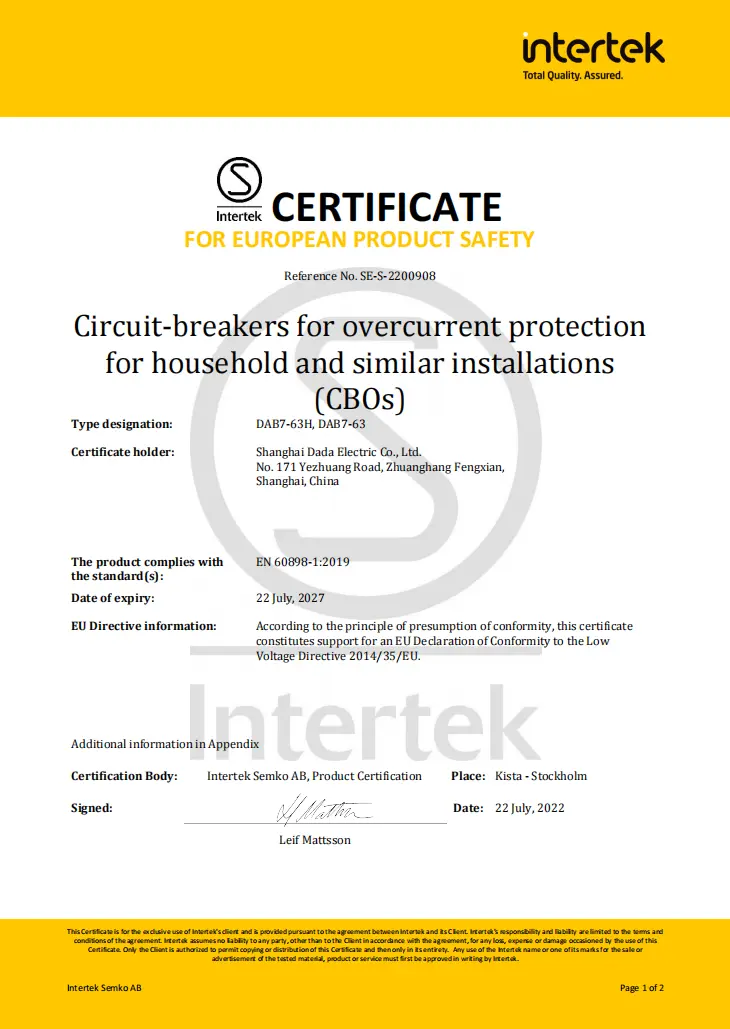

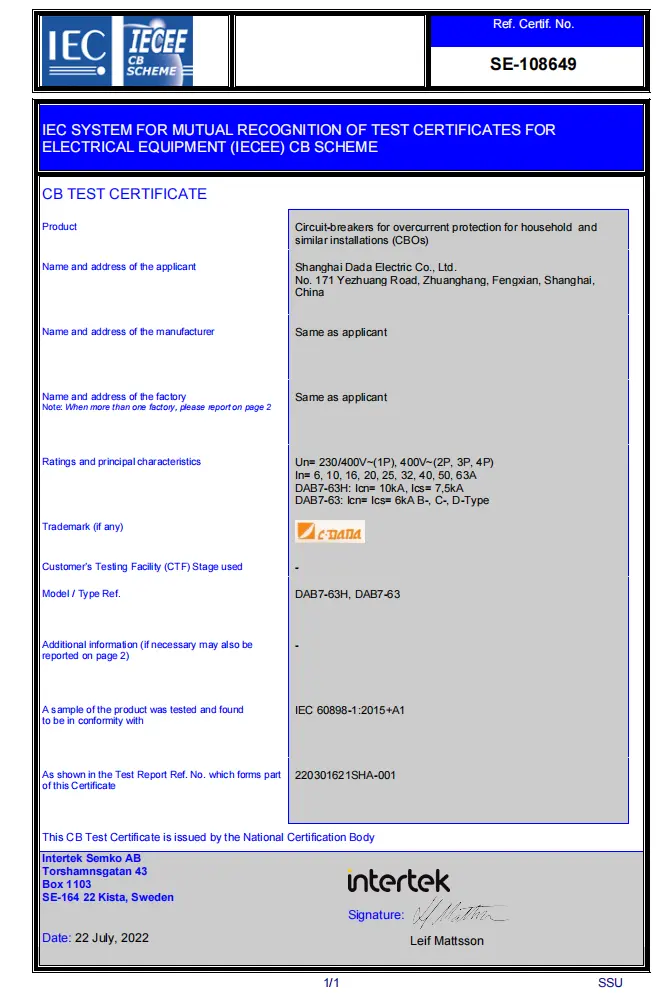

Nā palapala hōʻoia: CE, CB, ASTA, SEMKO

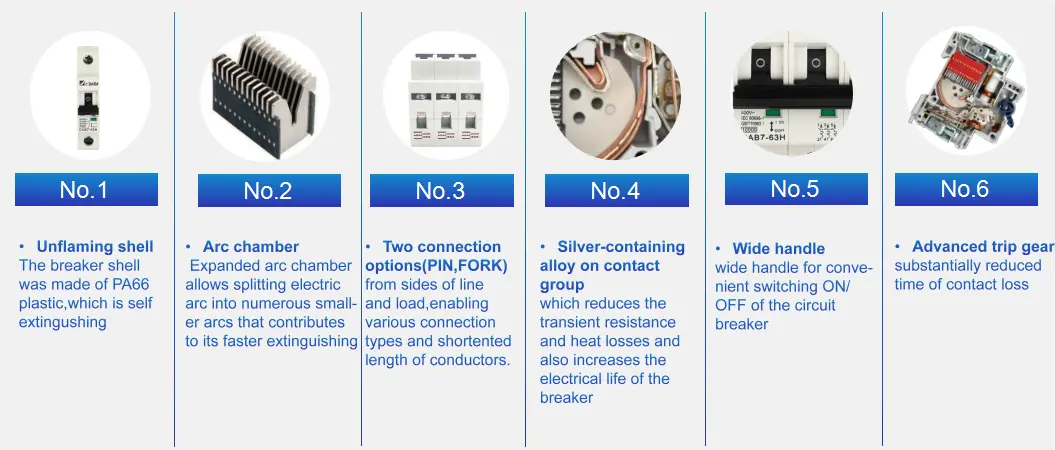

Nā hiʻohiʻona hoʻolālā koʻikoʻi:

13-papa arc lumi → ultra-wikiwiki arc mokuahi & pau

Hoʻopili kālā-alloy → haʻahaʻa haʻahaʻa, lōʻihi ke ola

ʻElua mau koho koho: PIN a i ʻole FORK (laina a me ka ʻaoʻao hoʻouka)

Hōʻike ON/OFF/puka hōʻailona huakaʻi

ʻO ka lima ergonomic ākea no ka hana maʻalahi

ʻAi-a-a-ahi, hale kūmelemele (UL94 V-0 like)

ʻO nā ʻoki ʻoki nui (hoʻāʻo ʻia i ka 3 Nm) me + / - nā poʻo cross-functional

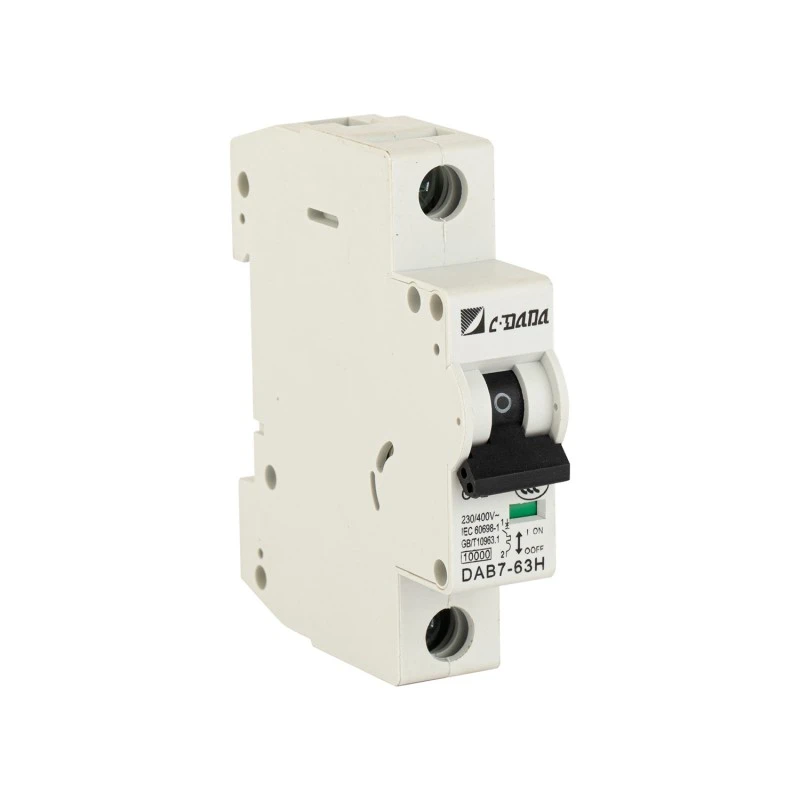

Laki kaʻaahi DIN me nā kūlana laka ʻelua → kau paʻa

Pepa ʻIkepili ʻenehana

No ke aha e koho ai i ka CDADA AC MCB 10kA?

★ Ka Hana Hana ʻOihana ma ke ʻano liʻiliʻi

ʻOiai ke hāʻawi nei nā MCB maʻamau i 6kA, ʻo ka helu 10kA o DAB7-63H kūpono ia no nā wahi kokoke i ka lako nui-e like me nā lumi hoʻokaʻawale haʻahaʻa, nā papahele pāʻoihana, a i ʻole nā ​​​​papa hana ʻoihana māmā-kahi i ʻoi aku ka kiʻekiʻe o nā au hewa.

★ Hoʻonui i ka palekana a me ka lōʻihi

● Paʻa ʻole ka pūpū ʻaʻole i ka ʻā a me ka ʻeleʻele

● ʻAʻole ka hoʻokuʻu ʻia ʻana o ke kinoea wela

● Mākaʻikaʻi ka mīkini huakaʻi ʻole i ka wehe ʻana inā paʻa ka lima i ON

★ Ke kumukuai haahaa o ke ola ana

ʻO nā hui kālā-alloy a me nā hopena i hoʻopaʻa ʻia e hōʻemi i nā poho wela a me ka hoʻopili hoʻopili ʻana, e hoʻolōʻihi i ke ola o ka lawelawe - ʻoi aku ka nui o nā noi kiʻekiʻe.

★ Ka ʻae honua

Me ASTA (UK), SEMKO (Nordic), CE (EU), a me CB (global), ʻae ʻia nā CDADA MCB ma nā ʻāina he 70 a ʻoi aku ka maikaʻi no nā mea kūkulu hale kūʻai.

★ Hoʻolālā Mea Hoʻohui

★ ʻoi aku ka nui o ka lima = ka hana maʻalahi

★ nā wili keʻa = ʻaʻohe mea hoʻopaʻa i hāʻule

★ Mākaʻikaʻi puka aniani = ʻike maka koke

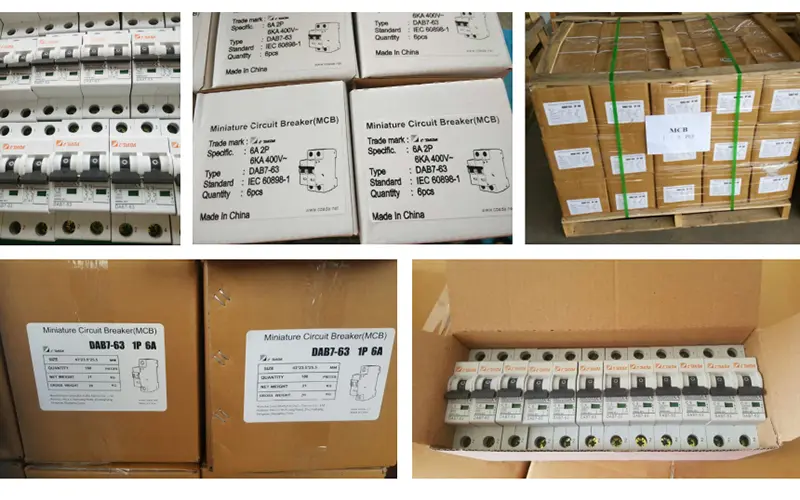

★ Kāleka ikaika kiʻekiʻe, pale pale, maikaʻi no ka lawe ʻana aku i waho

★ ka manawa hāʻawi wikiwiki no nā kauoha kūpono.

Nā noi kūpono

Nā Hale Kūʻai: Nā papa hoʻolaha papahele, nā lumi kikowaena, nā hale kūʻai kūʻai

ʻOihana Māmā: ʻO nā kaapuni hoʻomalu mīkini, nā mea hānai kaʻa liʻiliʻi, nā kumu hana

ʻOihana Aupuni: Nā kula, nā halemai, nā keʻena aupuni

Noho Kiʻekiʻe Kiʻekiʻe: Nā poloka hale me ke ana kikowaena

Nā Papa Hoʻolaha: No nā papahana e koi ana i ka palapala hōʻoia honua

Nīnau pinepine

Q1: He aha ka ʻokoʻa ma waena o 6kA a me 10kA MCBs?

A1: Hiki i nā MCB 10kA ke hoʻopau palekana i nā ʻauwai hewa kiʻekiʻe—e kūpono ana ia mau mea no ka hoʻopili ʻana i kahi kokoke i ka mea hoʻololi a i ʻole ka mea loaʻa kālā nui, kahi i ʻoi aku ka nui o ke kaapuni pōkole ma mua o 6kA. E hoʻohana i ka 10kA i nā sub-panels kalepa / ʻoihana; Ua lawa ka 6kA no nā kaapuni hope ma nā hale.

Q2: Loaʻa ka 10KA AC Miniature Circuit Breaker ma 3P no nā ʻōnaehana ʻekolu?

A2: ʻAe! Loaʻa ka DAB7-63H ma 1P, 2P, a me 3P—kūpono no nā kukui ʻekolu ʻāpana, HVAC, a i ʻole nā ​​kaapuni mīkini.

Nīnau 3: He aha ke ʻano o ka "alia i loko o ke kālā ma nā pilina" no ka hana?

A3: Hoʻemi ia i ke kūpaʻa hoʻopili, hoʻemi i ka arcing i ka wā e hoʻololi ai, a hoʻolōʻihi i ke ola uila - ʻoi aku ka nui ma nā kaapuni me ka hana pinepine a i ʻole nā ​​haʻahaʻa inductive.

Nīnau 4: Hiki iaʻu ke hoʻohana i nā mea hoʻohui ʻano fork me kēia MCB?

A4: ʻOiaʻiʻo! Kākoʻo ia i nā ʻāpana PIN a me FORK ma ka laina a me nā ʻaoʻao haʻahaʻa - hiki ke hoʻololi i nā wili haʻahaʻa haʻahaʻa a me ka holo ʻana o ke kaula pōkole.

Q5: No ke aha e koho ai i ka CDADA ma luna o nā hōʻailona 10kA MCB?

A5: Kūlana ʻo CDADA no ka mea:

● He helu 10kA maoli me nā palapala hōʻoia piha (ʻaʻole i koi wale ʻia)

● Keena arc kiʻekiʻe (13 papa) no ka hoʻopau maikaʻi

● ʻAʻole loaʻa nā koho pahu ʻelua ma kēia papa

● –40°C a i +50°C ka hana—ʻoi aku ka laulā ma mua o nā mea hoʻokūkū he nui

● OEM-mākaukau: maikaʻi kūlike, kākoʻo Pelekane, kumu kūʻai nui
