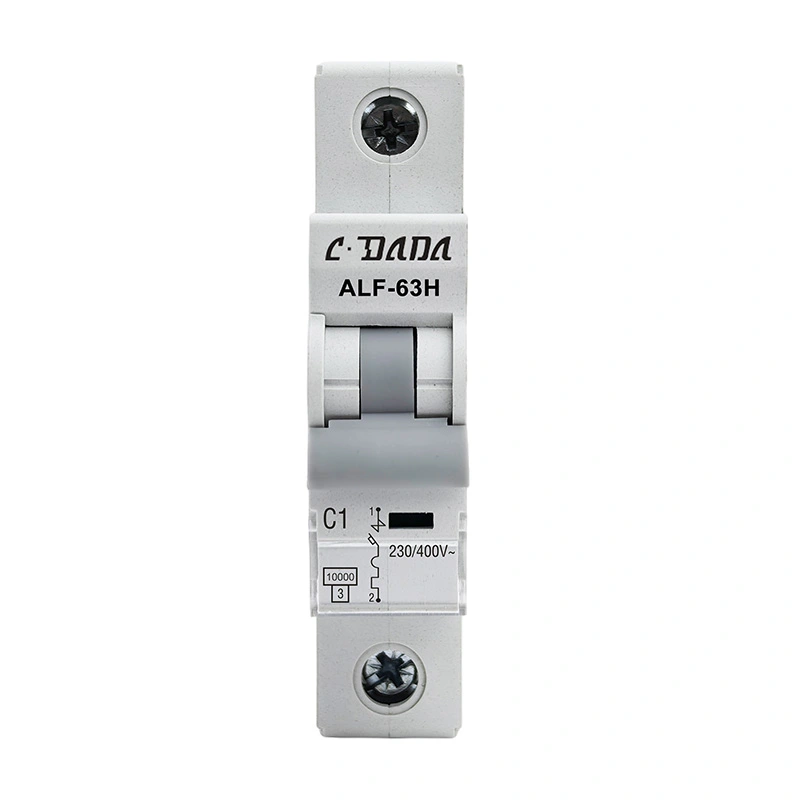

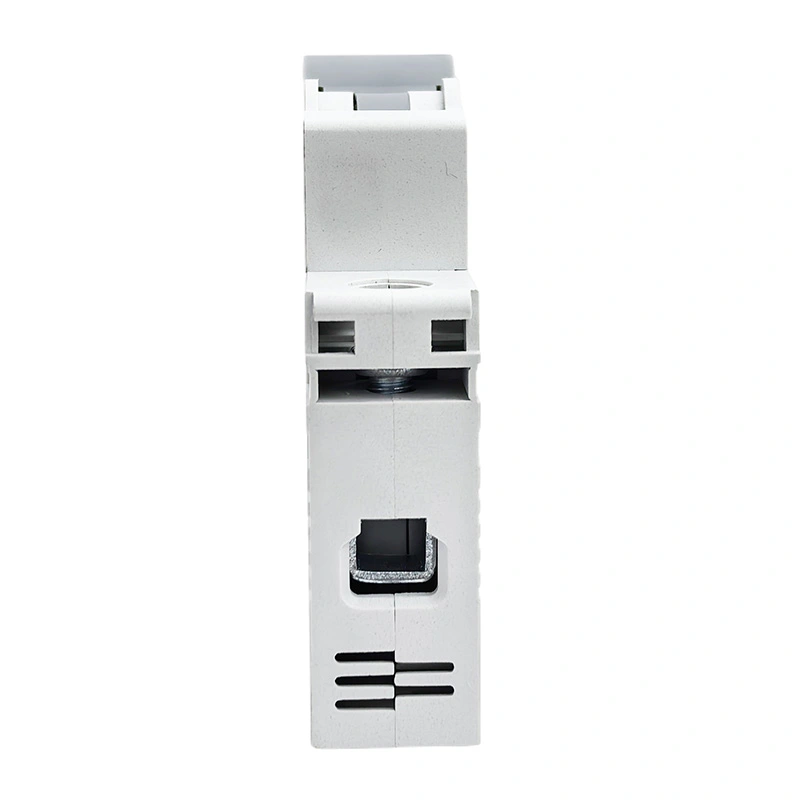

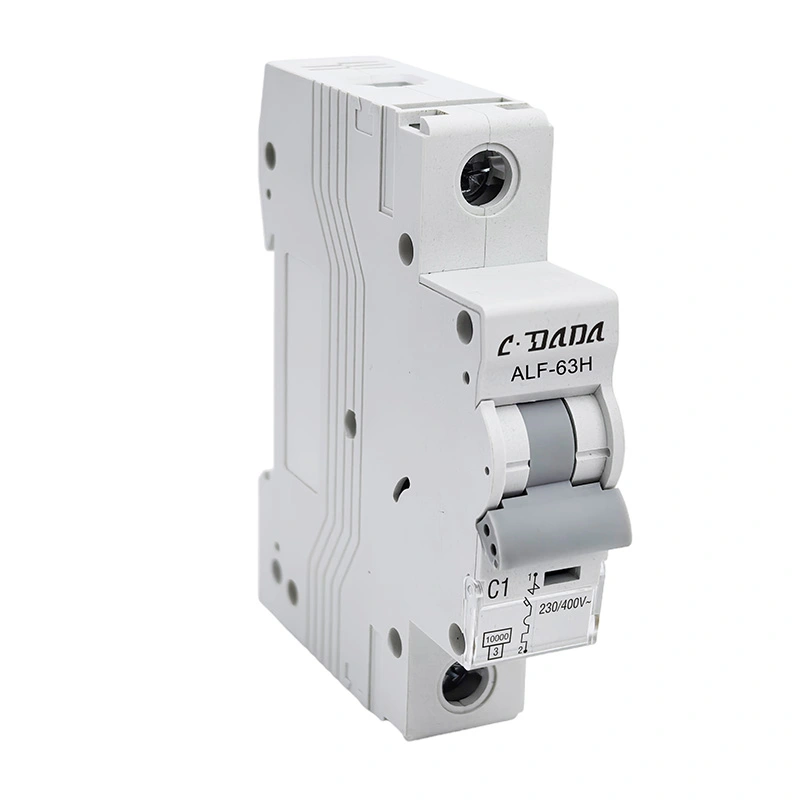

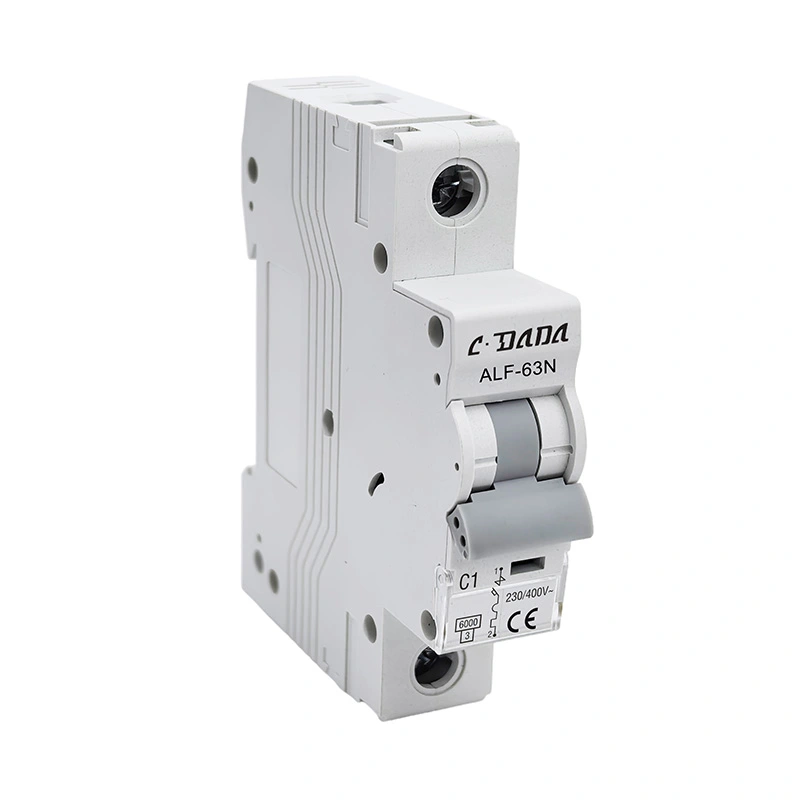

6KA 10kA Kaapuni Kaapuni liilii

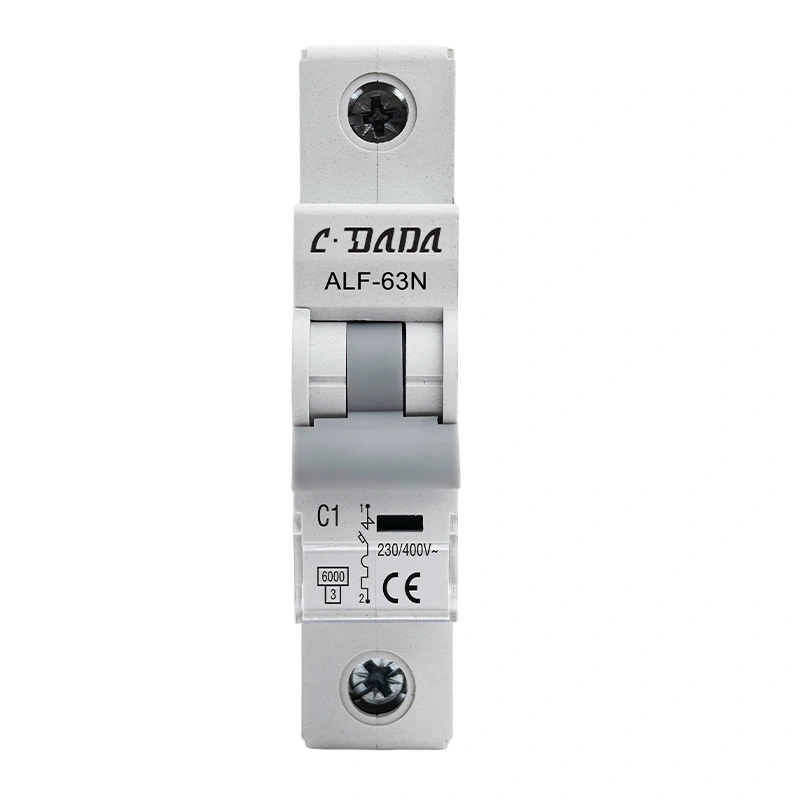

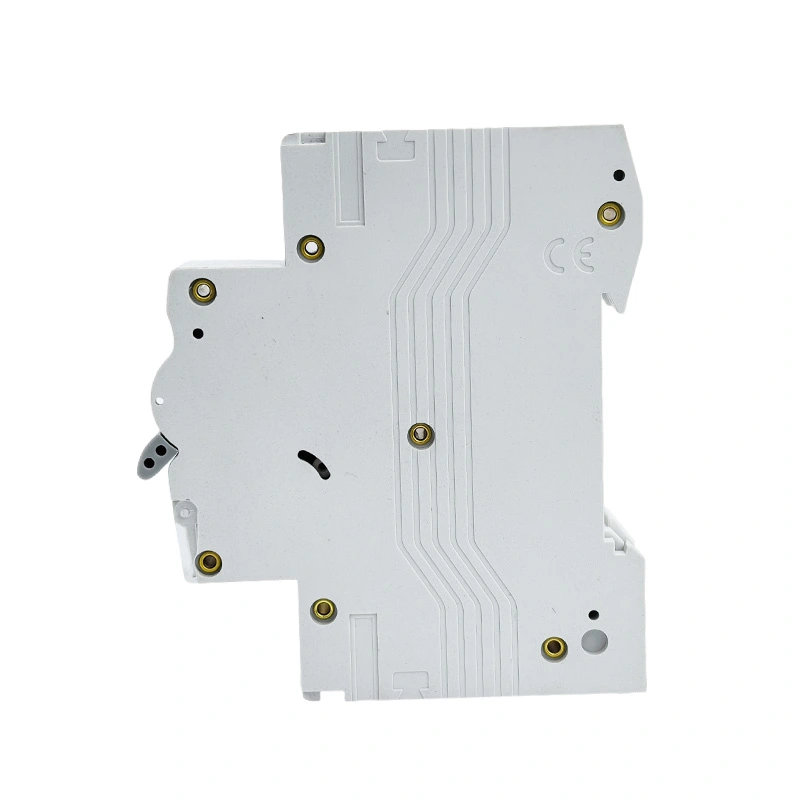

ALF-63N/H moʻo haʻihaʻi kiʻekiʻe 6KA 10kA Miniature Circuit Breaker (MCB), e like me IEC60898 maʻamau, ʻo MCB ka hiʻohiʻona o ka hana hilinaʻi, ka hana pale pololei, ka manawa hoʻokuʻu pōkole, a me ka hiki ke hoʻomaha kiʻekiʻe, ka leo liʻiliʻi pū kekahi. Hoʻohana nui ia i loko a me ka overload o contactors, switchgear, a me nā mea uila.

E hoʻokaʻaʻike iā CDADA a koho iā mākou i mea hana, hiki iā mākou ke hāʻawi i nā lawelawe OEM / ODM.

Pipi ʻano

Hōʻike ʻenehana

ALF-63N/H Māhele 6KA 10kA Kaapuni Kaapuni liʻiliʻi
Kūlana	EN/IEC60898-1
Ka hikiwawe (kA)	6,10
Palekana	E kūʻē i ka overload a me ka pōkole
Ua helu ʻia i kēia manawa(A)Ma	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Volta helu (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Hoʻopaʻa ʻia ka manaʻo e kū i ka uila Uimp(kV)	4
Ui(V) i koho ʻia	500
ʻO ka cass palena ikehu	3
Ka wela ambient(℃)	-25~+40, ʻOi.95% haʻahaʻa
palena hana wela	1.13xln ʻAʻole hele i loko o hoʻokahi hola
	1.45xMa ka hele ʻana i loko o hoʻokahi hola
ʻO ka hana makeke	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Ka helu o nā pou	1P,1P+N,2P,3P,3P+N a me 4P
ʻAno huakaʻi	Hoʻokuʻu wela/magnetic
Hiki ke hoʻopau	16mm² maʻalahi a i ʻole 25mm² paʻa a hiki i ka helu 25A
	25mm²a maʻalahi a i ʻole 35mm² ʻoʻoleʻa mai 32A a hiki i ka helu 63A
Degere pale	IP20
Hoʻokomo	Ke kau nei ma ke kaʻaahi DIN 35mm
Laulā	17.8mm no ka pou

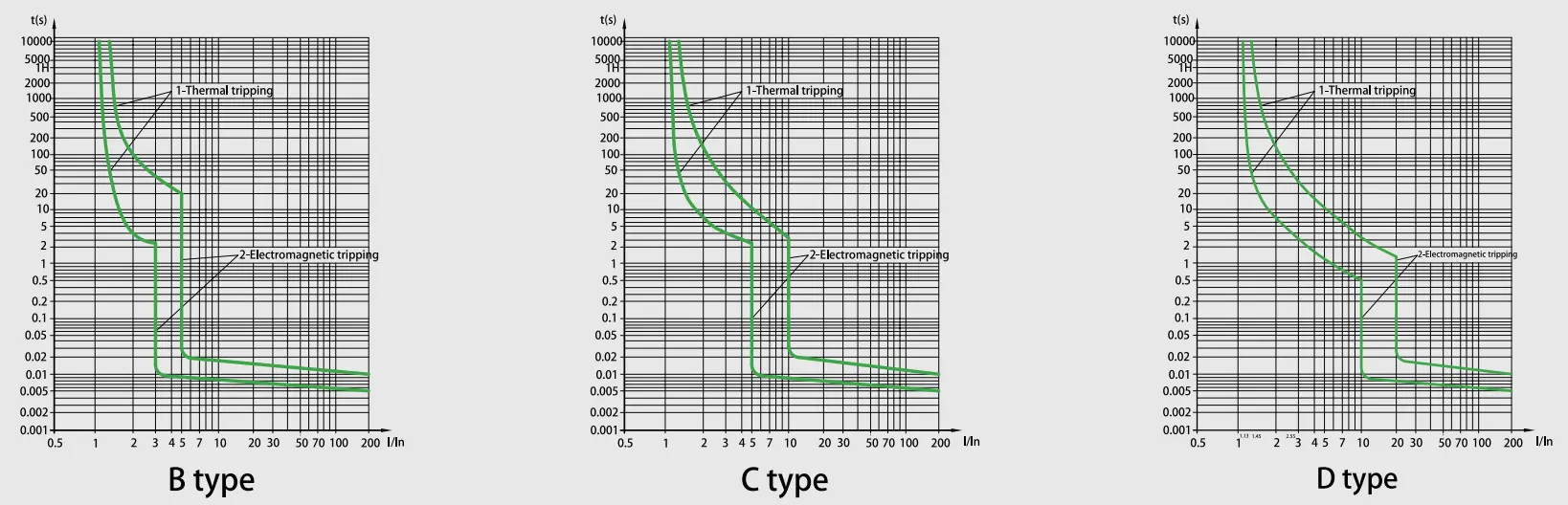

ʻAno hoʻokuʻu kaapuni

ʻAʻOLE.	Ua helu ʻia kēia manawa o ka hoʻokuʻu ʻana (A)	Kūlana mua	Hoʻāʻo i kēia manawa	Ka manawa i kuhikuhi ʻia	Loaʻa ka hopena	ʻŌlelo
1	1-63	kūlana anu	1.13Ma	t≤1h	Kahele ʻole
2	1-63	ma ka hoao mua	1.45ln	t<1h	huakaʻi	E hoʻonohonoho i kēia manawa i ka waiwai i ʻōlelo ʻia i 5s
3	In≤32	kūlana anu	2.55In	1s	huakaʻi
	I>32
4	1-63	kūlana anu	3Ma	t≤0.1s	Kahele ʻole	ʻAno B
			5Ma ka	t<0.1s	huakaʻi	ʻAno B
			5Ma ka 10ln	t≤0.1s	Kahele ʻole	ʻAno C
			10Ma	t<0.1s	huakaʻi	ʻAno C
			20ln	t≤0.1s	Kahele ʻole	ʻAno D
				t<0.1s	huakaʻi	ʻAno D

Hoʻomanawanui (Nā Hana)

Māhele	Nā pōʻai hana	Ka pinepine hana	Kuhi ʻia i kēia manawa
Hoʻomanawanui uila	4000	240/h	1-32
		120/h	40-63
Hoʻomanawanui mīkini	10000	240/h	1-63

Nā hiʻohiʻona

★ Kiekie kiʻekiʻe kiʻekiʻe pōkole-kaapuni wawahi hiki

Loaʻa ka ʻenehana hoʻokele arc kiʻekiʻe i ka hiki ke hoʻohālikelike i nā kūlana o ka ʻoihana, e hōʻoia ana i ka palekana hilinaʻi no nā ʻōnaehana uila ma lalo o nā kūlana hewa loa.

★ ʻAno Hoʻohui Kaulua-Mode

Kākoʻo ʻia ka hoʻolālā ʻana o ka hybrid hybrid i ka hoʻopaʻa ʻana i ka busbar paʻa a me ka hoʻopaʻa ʻana i ke kaula maʻalahi, hiki i ka hoʻololi ʻana i ka hāmeʻa ʻole i nā hiʻohiʻona hoʻonohonoho like ʻole ʻoiai e hōʻemi ana i ka manawa wili e 40%.

★ Mechanism-Storage Mechanism no ke ola lōʻihi

Pūnaehana hana kōkua pūnāwai me 10,000 mau pōʻaiapili mīkini hoʻomanawanui, e hōʻike ana i ka ʻenehana hoʻopaʻi lole.

★ Hoʻopaʻa Composite Kiʻekiʻe

me nā waiwai hoʻopaʻa inoa kaulana, pale wela, a me ka hōʻoia impulse-proof i hoʻohui ʻia i nā keʻena hoʻopau arc-quenching no nā hanana hewa.

★ Dynamic Current-Limiting Topology

ʻO ka hoʻopau ʻana i ka ikehu naʻauao e hōʻemi ana i nā ʻāhewa hewa kiʻekiʻe e 65-80%, e ʻae ana i ka hoʻonui ʻana i nā kikoʻī kikoʻī o lalo me 30% hiki ke hōʻemi i ke kumu kūʻai.

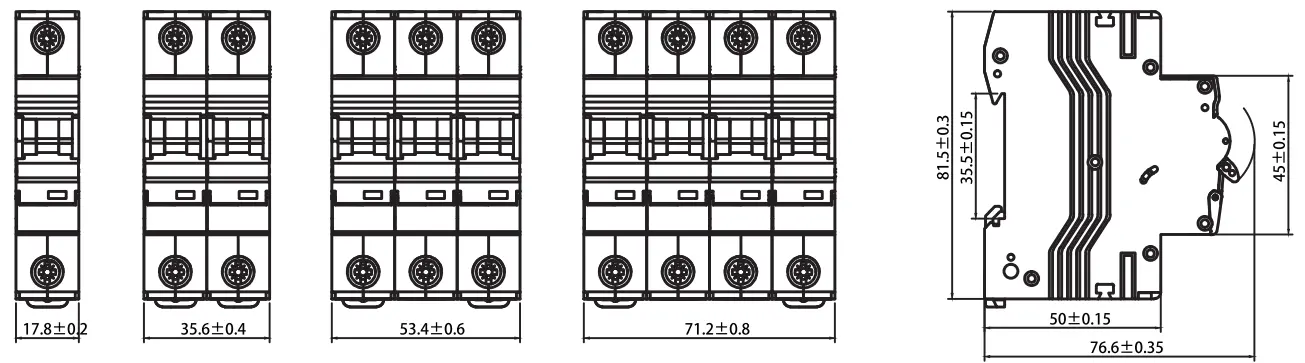

Nā ana outline

Nā hiʻohiʻona noiʻi

★ Noho: Nā ʻāpana mea kūʻai aku a me nā papa hoʻolaha no ka palekana home.

★ ʻOihana: Mālama i nā mea hoʻopili, nā mea hoʻololi, a me nā mea uila kaumaha.

★ Kalepa: Nā hale keʻena a me nā hale kūʻai kūʻai e koi ana i ka hilinaʻi kiʻekiʻe.

Mana Mana a me ka ho'āʻo maʻamau

★ Loaʻa i kēlā me kēia CDADA MCB ka hoʻāʻo koʻikoʻi e hōʻoia i ka hoʻokō ʻana me IEC60898-1:

★ Thermal Tripping Test: Hoʻopaʻa ʻia ma 1.13In (hele ʻole) a me 1.45In (hele i loko o 1 hola).

★ Mākēneki Tripping ho'āʻo: pololei hoʻokuʻu hoʻāʻo no B, C, a me D ano.

★ Hoʻomanawanui Uila: Hoʻāʻo ʻia no 4,000 mau kaʻina hana.

★ Mechanical Endurance: Hōʻoia no 10,000 pōʻai.

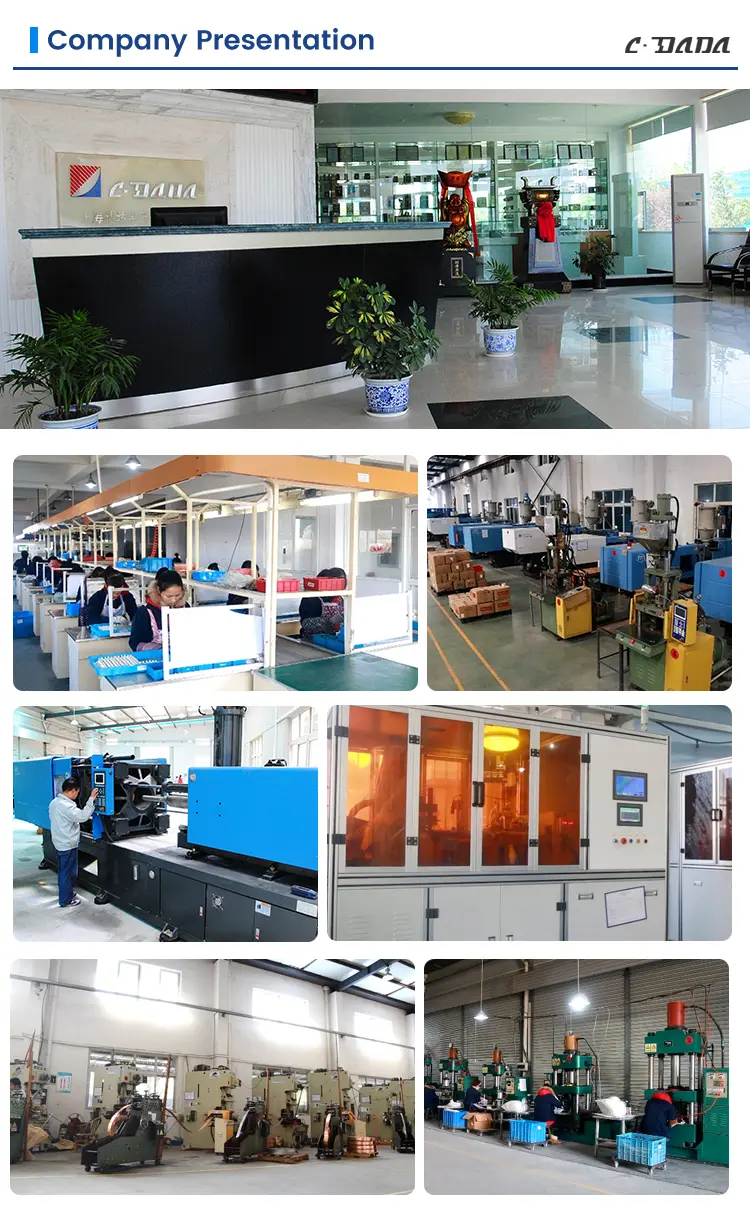

Ka ikaika a me ke kākoʻo o ka hale hana

ʻO Shanghai DADA Electric Co., Ltd. kahi mea hana alakaʻi me nā laina hana kiʻekiʻe a me kahi hui ʻenehana loea. Hāʻawi mākou:

★ Nā lawelawe OEM/ODM i hoʻopilikino ʻia no nā hōʻailona honua.

★ ʻO nā lako hoʻāʻo o ka mokuʻāina e hōʻoia i ka hāʻawi ʻana i kahi kīnā ʻole.

★ Global Logistics Kākoʻo: Optimized packaging no ke kai a me ka ea ukana e hōʻoia i nā huahana hiki mai i loko o ke kūlana maikaʻi.
