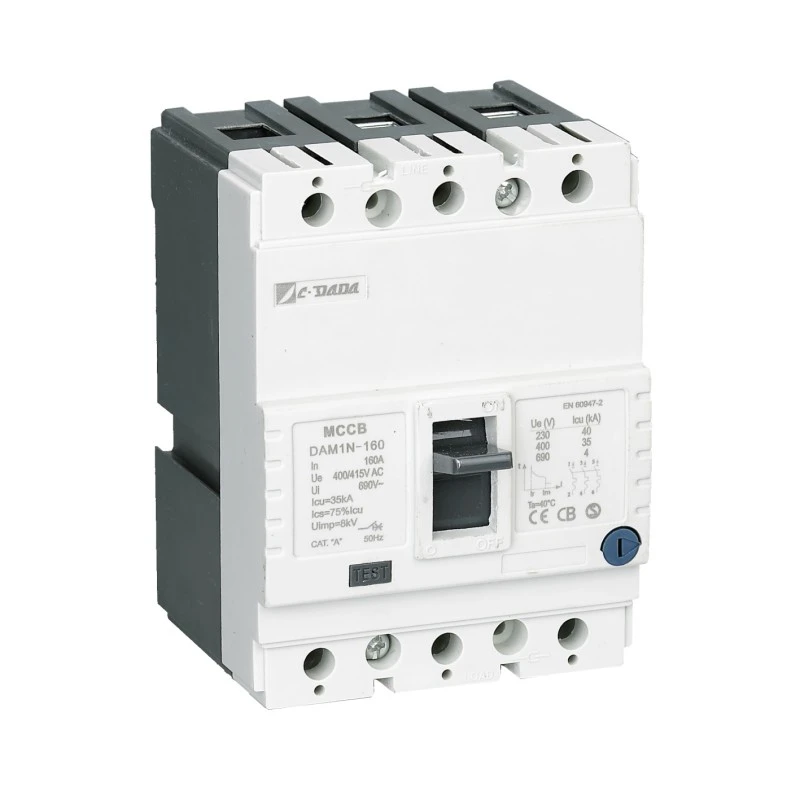

Mea hoʻoheheʻe kaapuni wela i hiki ke hoʻoponopono ʻia

Model:DAM1 Series

E ʻike i ka CDADA DAM1 Series Thermal Adjustable Molded Case Circuit Breaker mai 贴ka hale hana hilinaʻi, Shanghai DADA Electric—hōʻoia (ASTA, KEMA, CE) a me nā hoʻonohonoho wela hiki ke hoʻololi ʻia (70-100% In). He kūpono no ka pale overload pololei i nā noi ʻoihana. Loaʻa i nā hoʻonohonoho 3P/4P a hiki i 1600A ma 400V/415V. Kūpono no nā OEM a me nā mea kūʻai nui.

E hoʻouna i ka nīnau

Hōʻike huahana

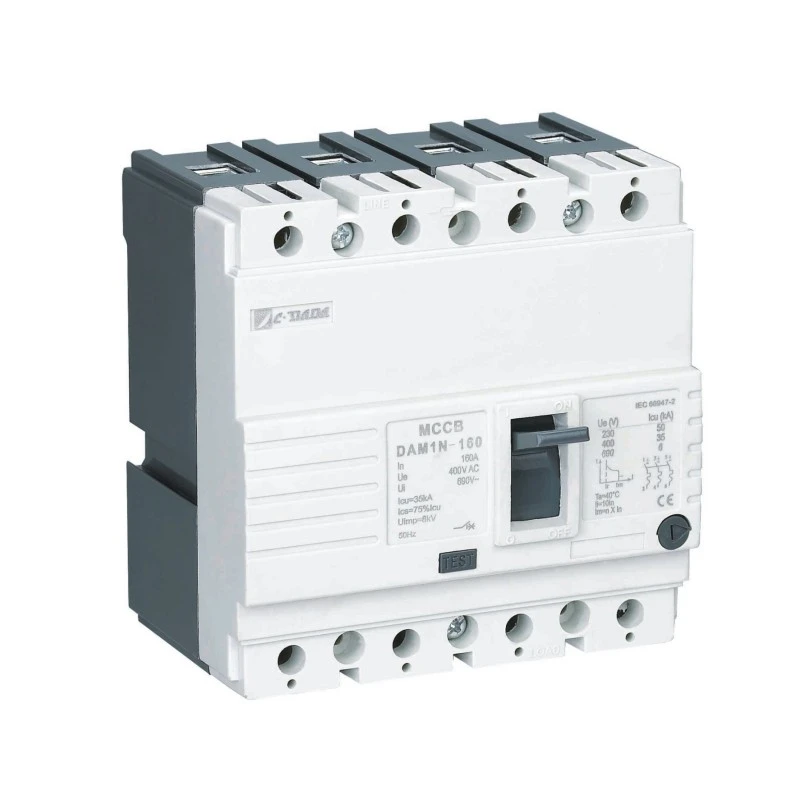

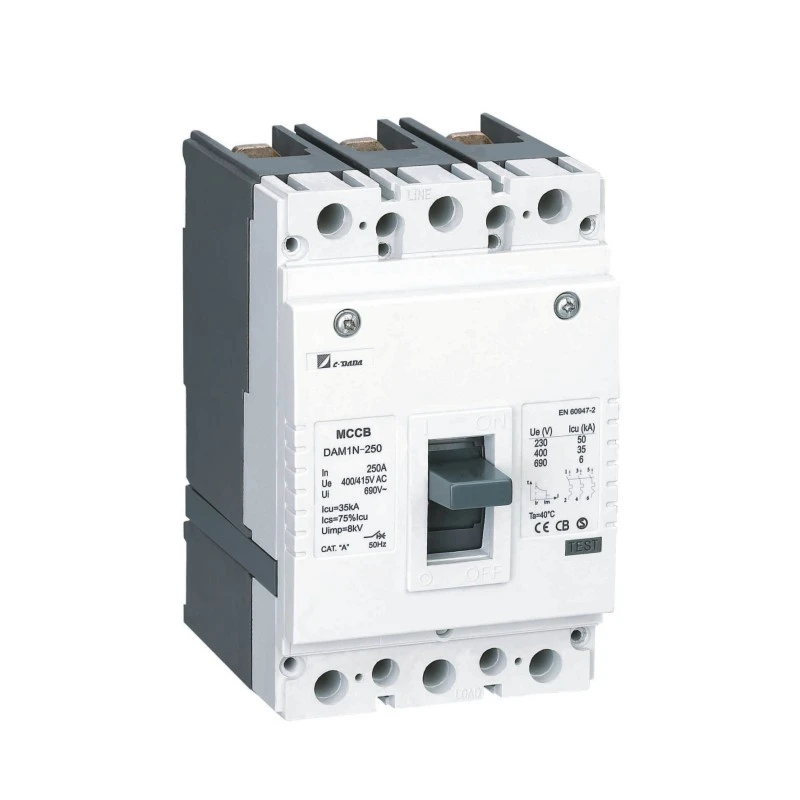

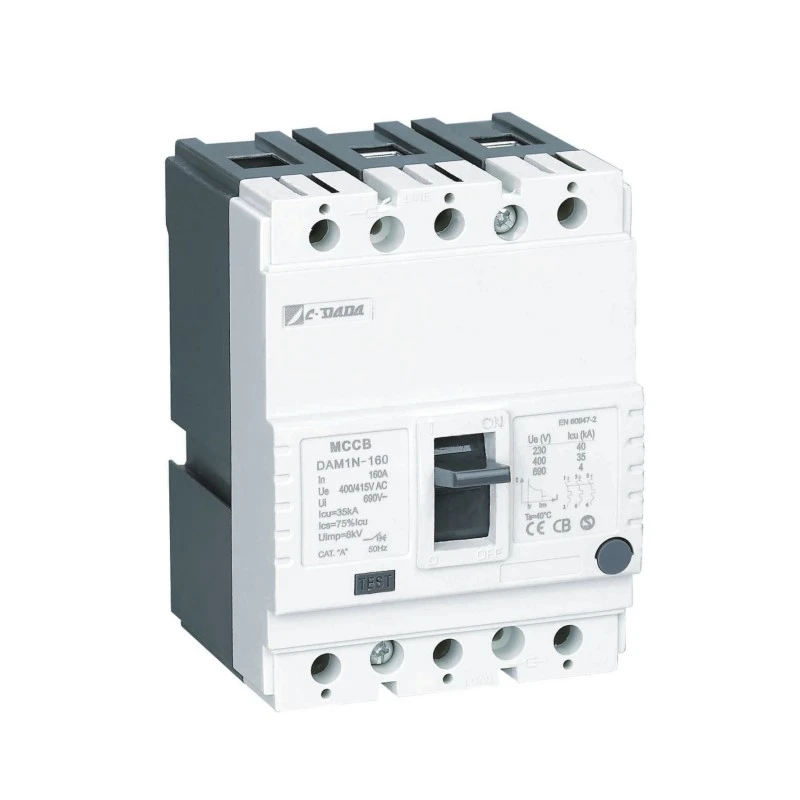

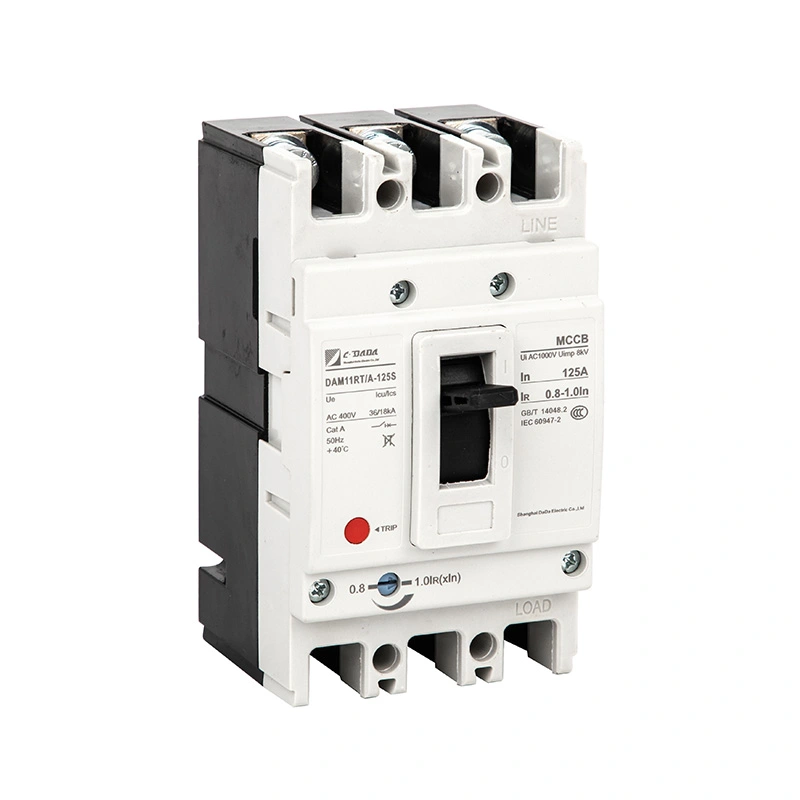

ʻO ka DAM1 Series Thermal Adjustable Molded Case Circuit Breaker e Shanghai DADA Electric CO., LTD. ua hoʻolālā ʻia e hoʻokō i nā kūlana papa honua, e hāʻawi ana i ka pale ikaika i nā kūlana overload a me nā kūlana pōkole. Me kahi pae hoʻonohonoho wela hiki ke hoʻololi ʻia o 70% a i 100% o In, hiki ke hoʻoponopono maikaʻi ʻia kēia haʻihaʻi e hoʻokō i kāu pono noi kikoʻī.

Loaʻa i nā hoʻonohonoho 3P a me 4P, helu ʻia a hiki i 1600A ma 400V/415V, hele mai me nā palapala hōʻoia honua e like me ASTA, KEMA, CE, CB, SEMKO, a me RoHS, e hōʻoia ana i ka hoʻokō ʻana ma nā wahi he nui.

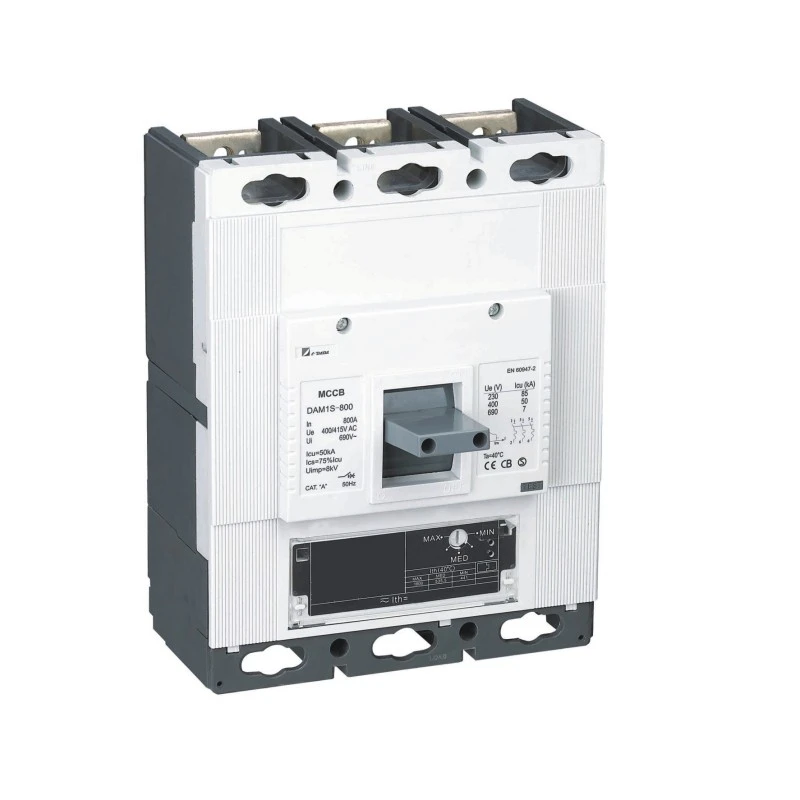

Thermal Adjustable Moulded Case Circuit Breaker

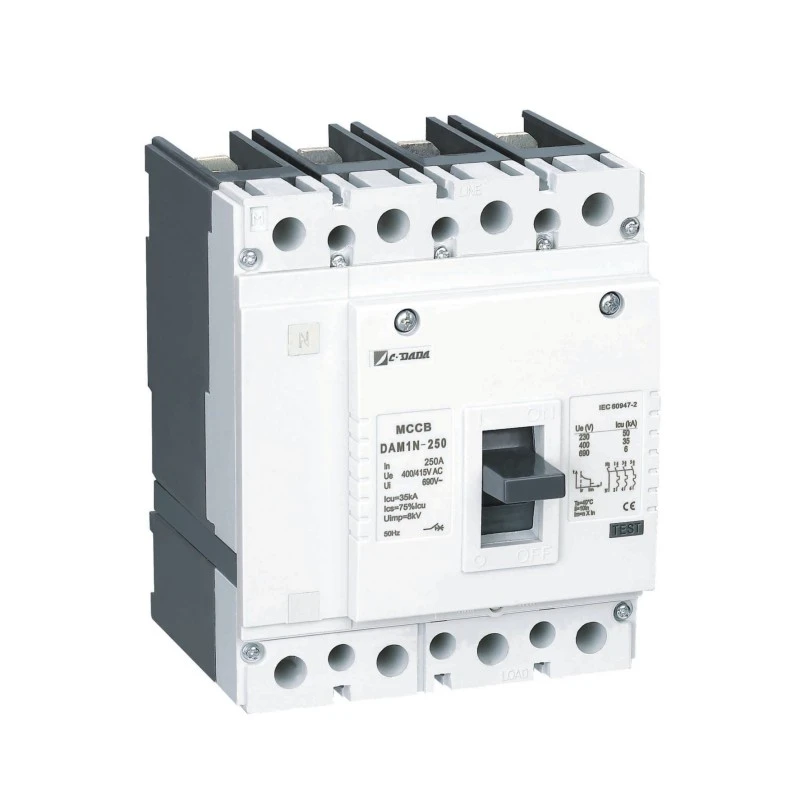

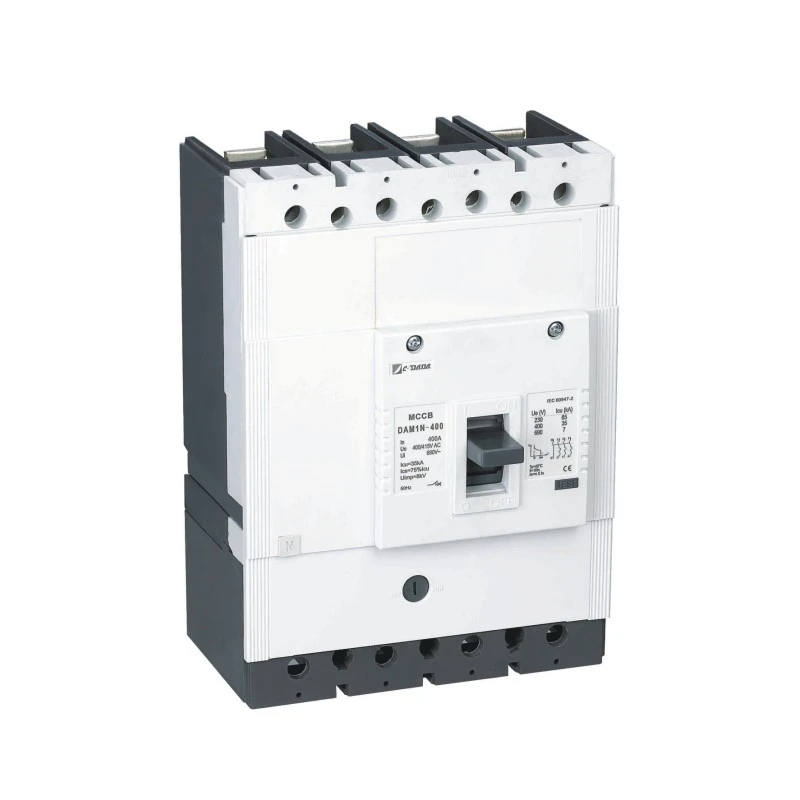

Nā palena uila o DAM1 Thermal Adjustable Molded Case Circuit Breaker

ʻAno MCCB hiki ke hoʻololi wela (0.7-1)Ma
Kiʻi	Hoʻohālike	code	Icu (KA)	Ics (KA)	Kuhi ʻia i kēia manawa -Ma	Ui(V)	Ue(V)	Pole	Uimp(V)
	DAM1-160	B	25	12.5	10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A	750V	400/415V	3P / 4P	8000
		N	35	26.25
		S	50	37.5
	DAM1-250	N	35	26.25	63 - 80-100-125 - 160(180) - 200(225) - 250(320)A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	65	48.75
		G	85	51
	DAM1-630(400)	N	35	26.25	250 - 315 (350)- 400 - 500 - 630A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	70	52.5
		G	85	52.5
	DAM1-800	N	35	35	400 - 500 - 630 (700)- 800 -1000A	750V	400/415V	3P /4P	8000
		S	50	37.5
		H	70	52.5
		G	85	52.5
	DAM1-1600	S	65	50	800 -1000 - 1250 - 1600A	750V	400V	3P / 4P	8000
		H	85	50
		G	100	50

Nā ʻōlelo kikoʻī

Thermal Adjustable Moulded Case Circuit Breaker

Ke Ana Hoʻohālike: DAM1 Series Thermal Adjustable MCCB

ʻAno: Hoʻoheheʻe Kaapuni Kaapuni (MCCB)

Pole: 3P / 4P

Voltage koho (Ue): 400V / 415V AC

Kuhi ʻia i kēia manawa (Ma): 16A - 1600A

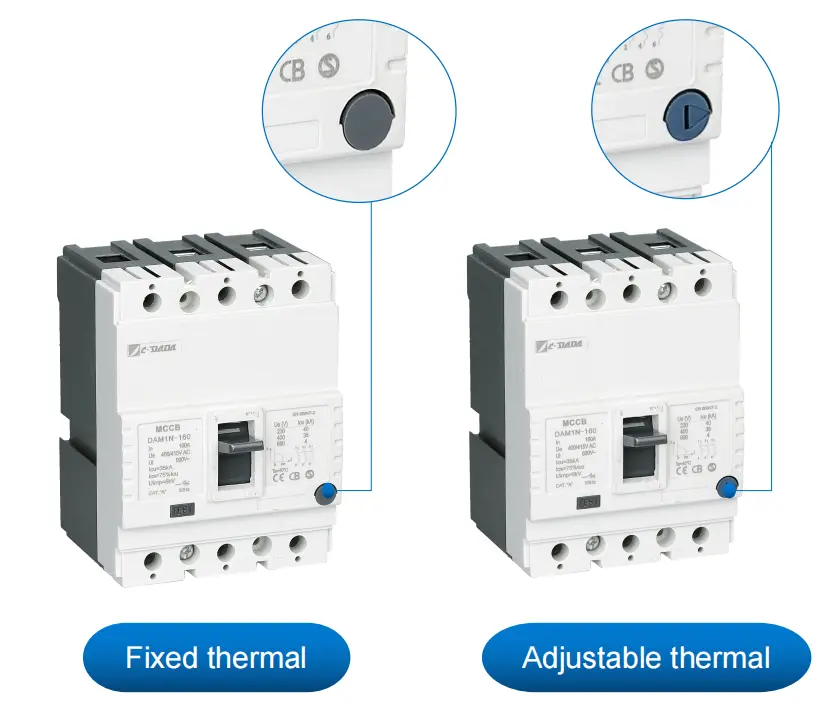

Hiki ke hoʻonohonoho wela: 70% - 100% In

Nā palapala hōʻoia: ASTA, KEMA, CE, CB, SEMKO, RoHS

Nui kiʻi: 6 nui kiʻi

Nā hiʻohiʻona ʻē aʻe: Push-to-trip pihi, hoʻokaʻawale i nā pilina nui a me ka arcing

MCCB helu ʻia i kēia manawa (A)	Hoʻonohonoho ʻana i ka huakaʻi wela Min (0.7In)	Hoʻonohonoho ʻo Thermal Trip Max (1 loko)	Hiki ke hoʻololi ʻia (0.7–1In)
16	11.2	16	11.2–16
32	22.4	32	22.4–32
63	44.1	63	44.1–63
100	70	100	70–100
250	175	250	175–250
400	280	400	280–400
630	441	630	441–630
800	560	800	560–800
1250	875	1250	875–1250
1600	1120	1600	1120–1600

Ke Kumu Hana & Mekani Hoomalu

★ Paʻa wela

Hoʻohana ka mea wela i loko o ka moʻo DAM1 i kahi kaula bimetallic e kūlou i ka wā i wela ai e ka overcurrent paʻa (> helu ʻia i kēia manawa). Ma ka hoʻoponopono ʻana i ka hoʻonohonoho wela ma waena o 70% a me 100% o In, hiki i nā mea hoʻohana ke hoʻololi i ka manawa pane o ka mea haʻihaʻi e pale aku i nā huakaʻi hoʻopilikia ʻoiai e hōʻoiaʻiʻo ana i ka pale pono.

★ Push-to-Trip pihi

No ka hoʻāʻo ʻana, hiki i ka pihi push-to-trip ke hoʻokuʻu lima i ka mea haʻihaʻi, e hōʻoia ana i kona kūpaʻa hana me ka ʻole e hoʻokomo i kahi kūlana hewa maoli.

★ Hoʻokaʻawale i nā Hoʻopili Nui a me Arcing

No ka hoʻomaikaʻi ʻana i ka lōʻihi a me ka hana, ua hōʻike ʻia ka moʻo DAM1 i nā mea pili nui a me nā arcing. Mālama kēia hoʻolālā i ka pale ʻana o nā mea pili nui i ka wā o nā hanana kiʻekiʻe, e hoʻolōʻihi i ke ola o ka mea haʻihaʻi.

Nā hiʻohiʻona noiʻi

ʻO ka DAM1 Thermal Adjustable Molded Case Circuit Breaker (MCCB) he mea kūpono ia no kahi ākea o nā noi kahi e pono ai ke kaohi pono ʻana i ka pale overload. Aia kēia mau mea:

★ Nā mea kanu ʻenehana: E hōʻoia ana i ka hana paʻa ma nā wili kila, nā mea kanu kemika, a me nā paepae aila.

★ Nā Hale Kūʻai: Ka pale ʻana i nā ʻōnaehana uila ma nā hale kūʻai, nā hale keʻena, a me nā hōkele.

★ Utilities: Hoʻolaha hilinaʻi ma nā substations a me nā pūnaewele mana.

★ Nā Pūnaehana ʻIkepili: Ka mālama ʻana i ka manawa hana ma nā ʻoihana IT koʻikoʻi.

Thermal Adjustable Moulded Case Circuit Breaker

No ke aha e koho ai iā CDADA?

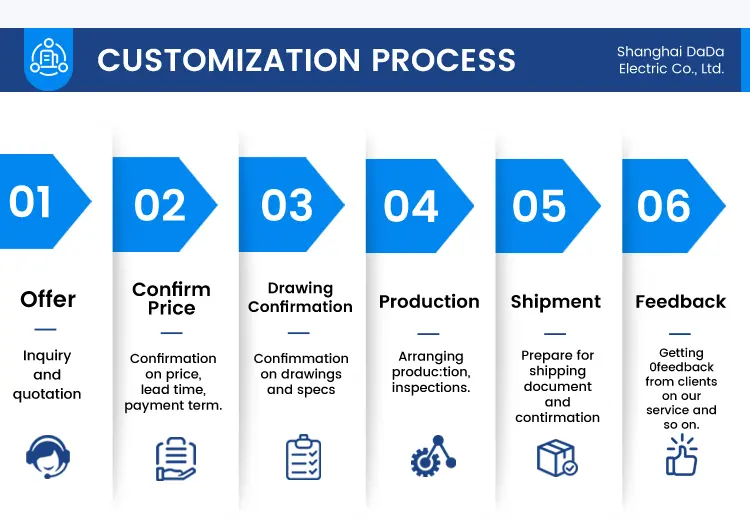

1. Loaʻa iā mākou ka hui R & D ʻoihana, loaʻa ke kaʻina hana hoʻomohala maʻamau. Hiki ke hāʻawi i ka lawelawe hoʻopilikino maikaʻi.

Thermal Adjustable Moulded Case Circuit Breaker

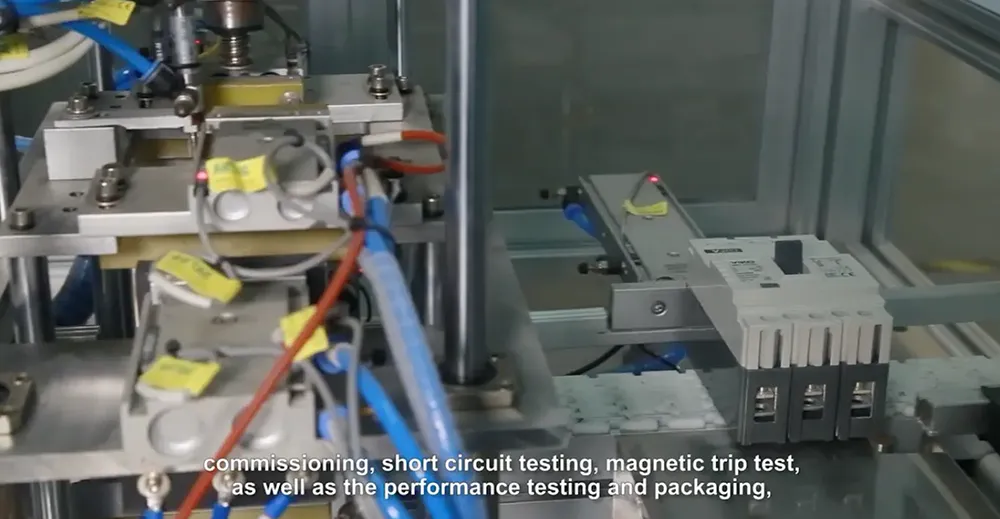

2. Hoʻopuka mākou i ka mea hoʻoheheʻe kaapuni ma ka laina hana maʻalahi, I kēia manawa, loaʻa iā mākou nā laina hana 6. A ʻoi aku ka nui o kēlā me kēia lā ma mua o 1000pcs.

Thermal Adjustable Moulded Case Circuit Breaker

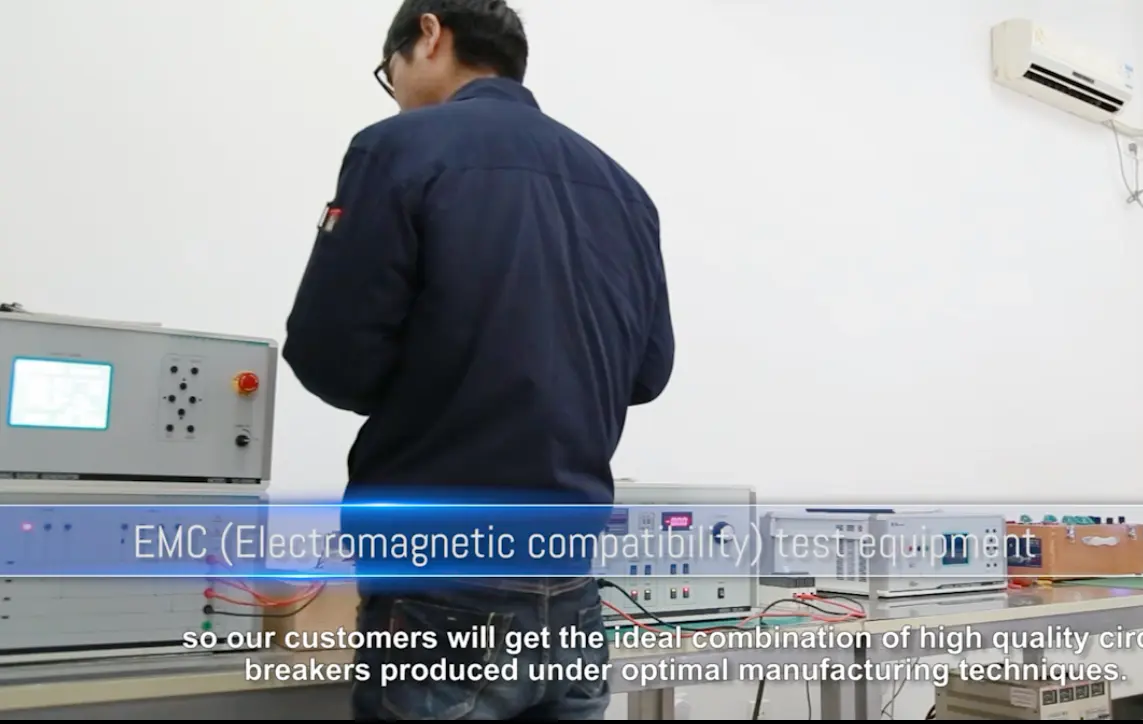

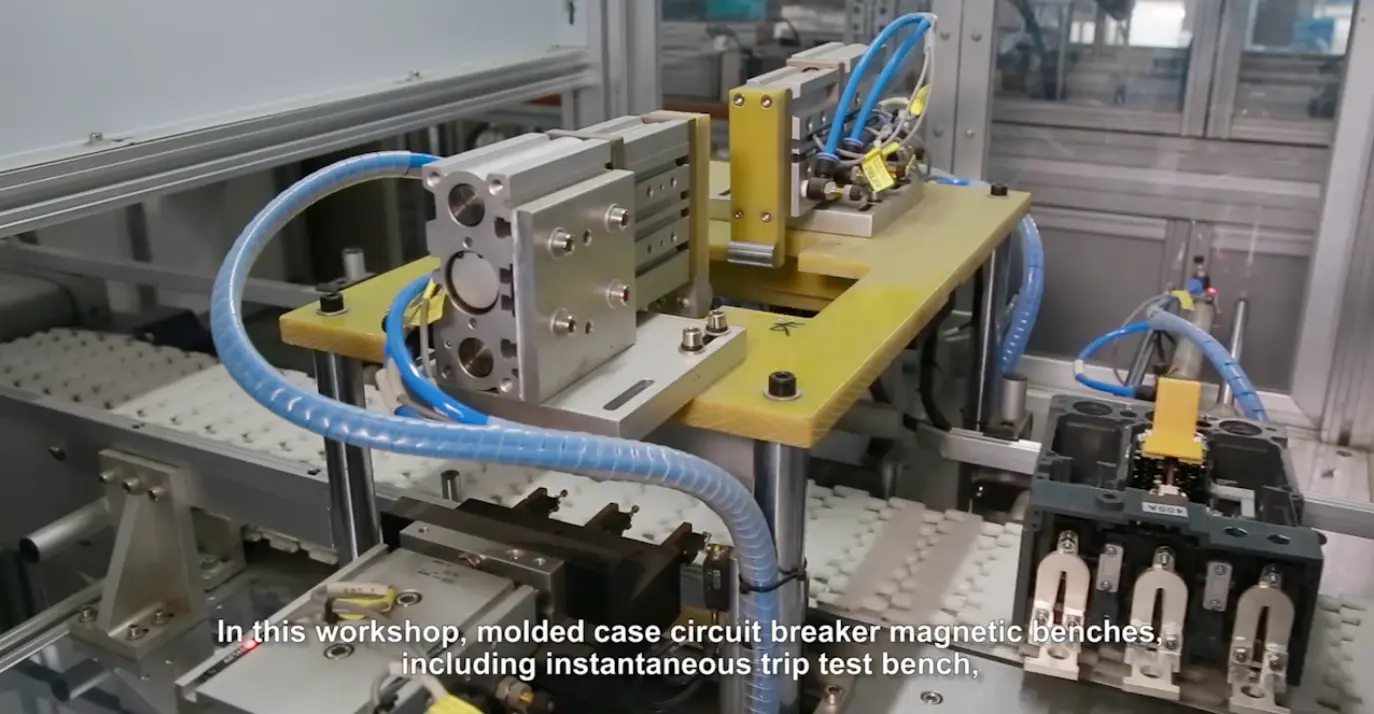

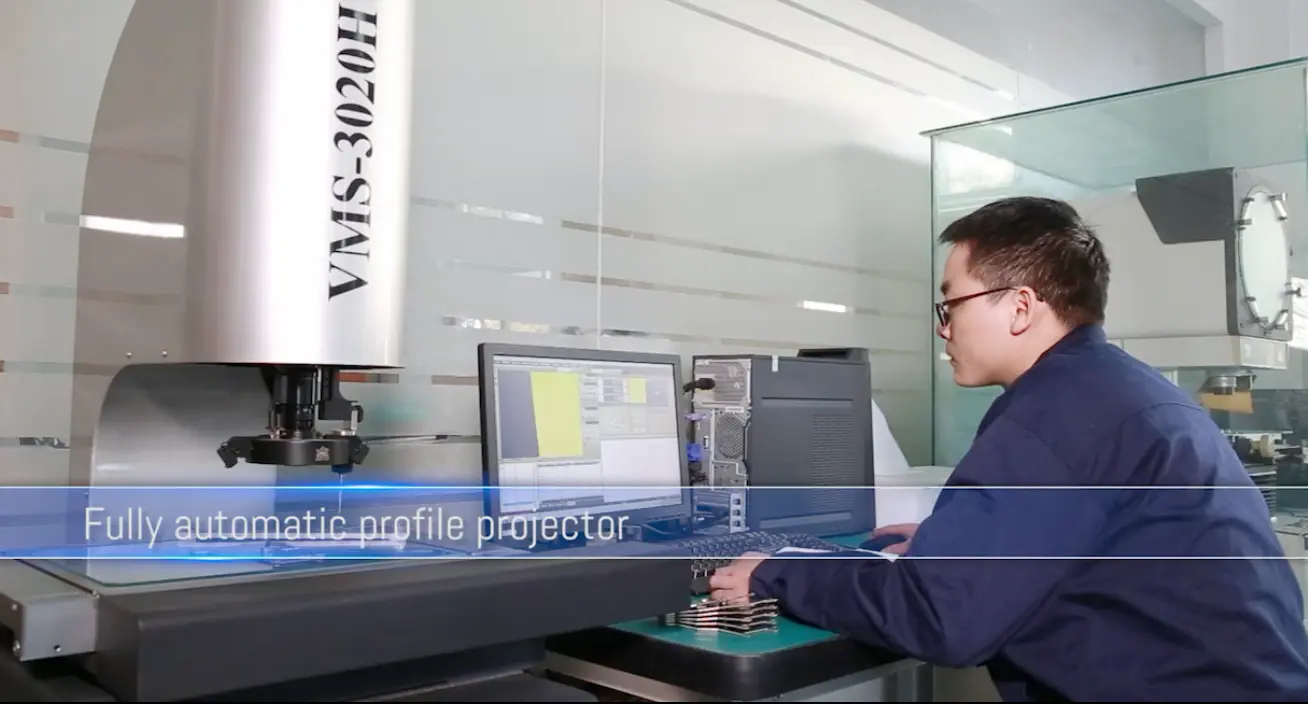

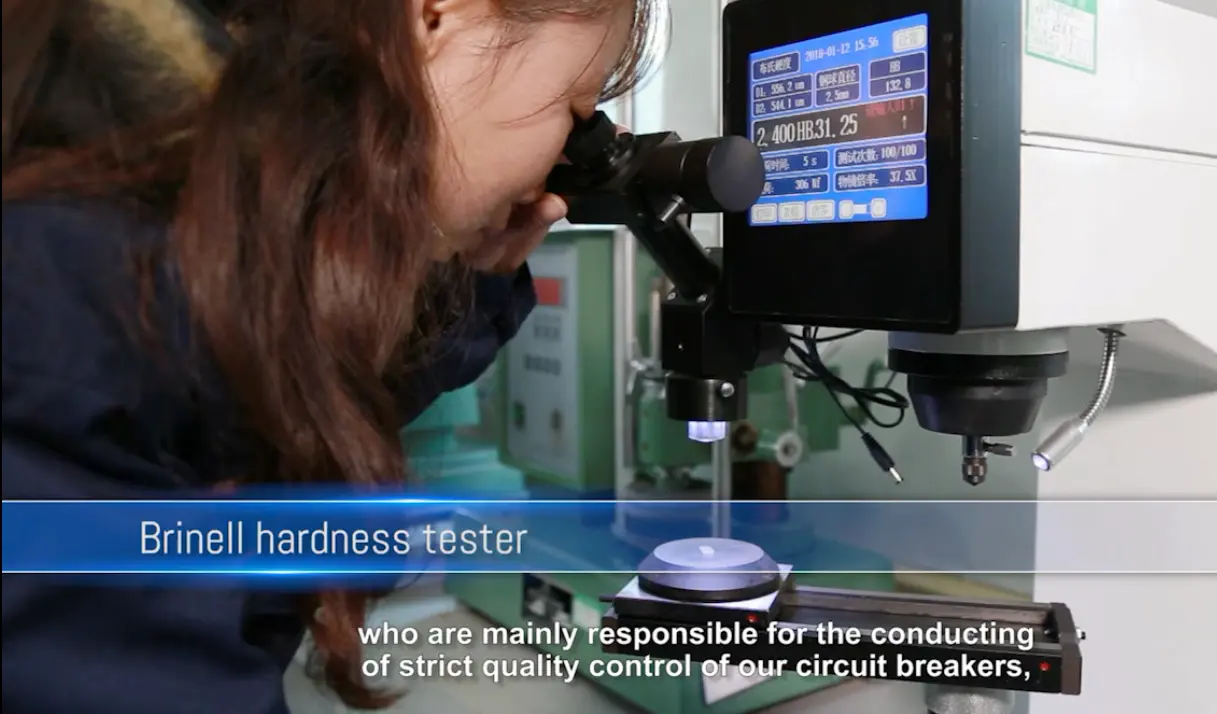

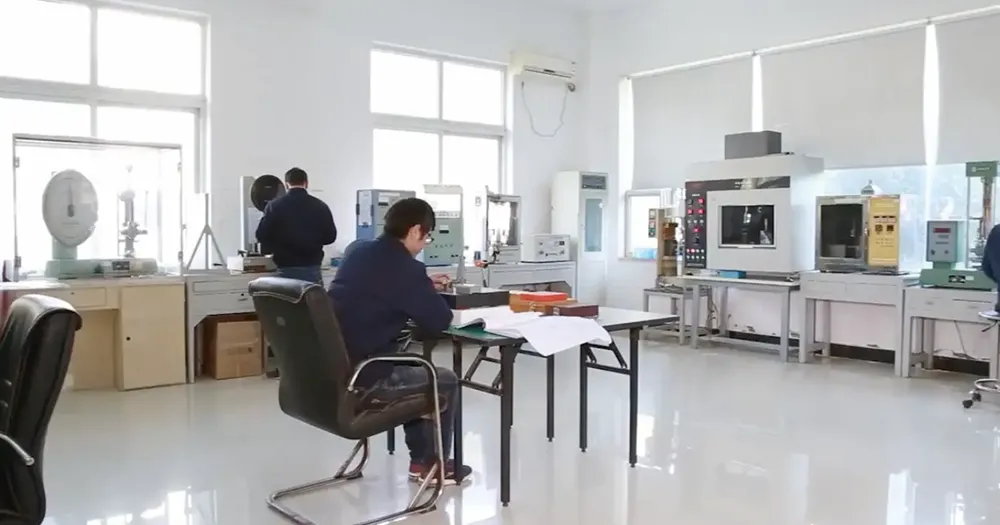

3. Loaʻa iā mākou ke keʻena hana piha, hiki i kā mākou keʻena keʻena ke hōʻike i ke keʻena hana, hiki iā mākou ke hana i ka ukana thermal, magnetic, a tripping limit, mechanical life, EMC in our laboratory.

Thermal Adjustable Moulded Case Circuit Breaker

4. Loaʻa iā CB, CE, SEMKO, KEMA, ASTA, ROHS, SASO, CCC honua

Thermal Adjustable Moulded Case Circuit Breaker

FAQs

Q1: He aha ka laulā hoʻonohonoho wela hiki ke hoʻololi ʻia no ka DAM1 MCCB?

A1: Hiki ke hoʻoponopono ʻia ka hoʻonohonoho wela ma ka moʻo DAM1 ma waena o 70% a me 100% o In, e ʻae ana i ka mana pololei ma luna o ka pale o ka ukana.

Q2: Hiki ke hoʻohana ʻia ka DAM1 Thermal Adjustable Molded Case Circuit Breaker ma nā hoʻonohonoho 3-pole a me 4-pole?

A2: ʻAe, loaʻa ka moʻo DAM1 ma nā hoʻonohonoho 3P a me 4P, kūpono ia no nā noi like ʻole.

Nīnau 3: Hiki mai anei ka DAM1 MCCB me kekahi mau hiʻohiʻona hou no ka hoʻāʻo ʻana a mālama ʻana paha?

A3: ʻAe, ʻo ka moʻo DAM1 e loaʻa i kahi pihi pana i ka huakaʻi no ka hoʻāʻo maʻalahi a me ka hōʻoia ʻana i ka hana o ka mea haʻihaʻi me ka hoʻokomo ʻole ʻana i kahi kūlana hewa.

Q4: Pehea e lawelawe ai ka DAM1 MCCB i nā kaapuni pōkole?

A4: Aia ka moʻo DAM1 i kahi mīkini huakaʻi magnetic e hāʻawi i ka pale koke i nā kaapuni pōkole, e hōʻoiaʻiʻo ana i ka hemo wikiwiki ʻana o nā au hewa.

Q5: Aia kekahi mau mea pono no ka DAM1 MCCB?

A5: ʻAe, loaʻa ka nui o nā mea pono, e like me nā leka uila, nā mea hoʻopili kōkua, nā hoʻokuʻu undervoltage, a me nā mīkini hana uila, e hoʻonui ai i ka maʻalahi a me ka hana o ka mea haʻihaʻi.
