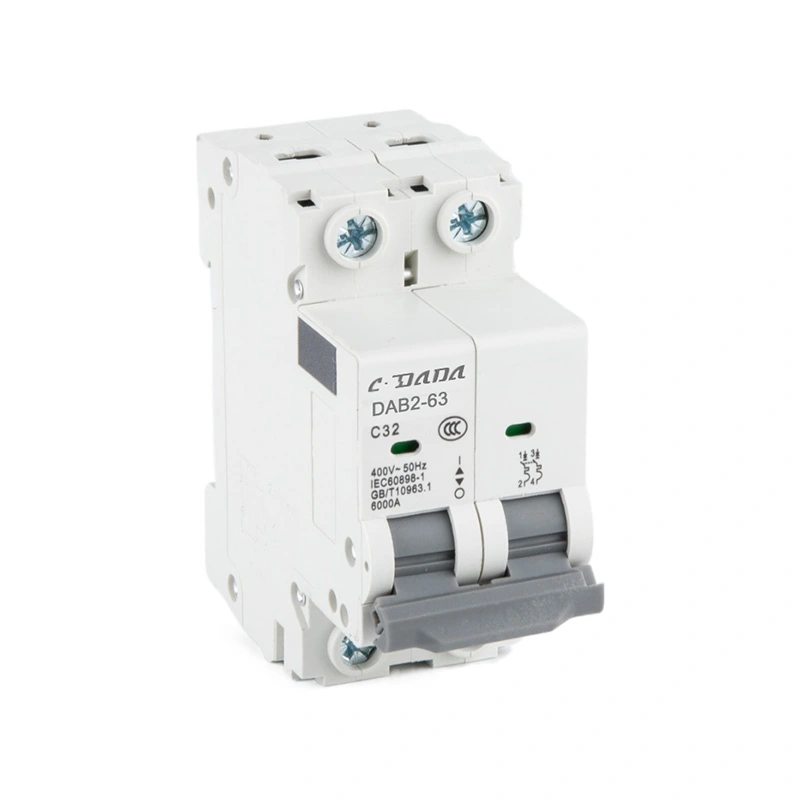

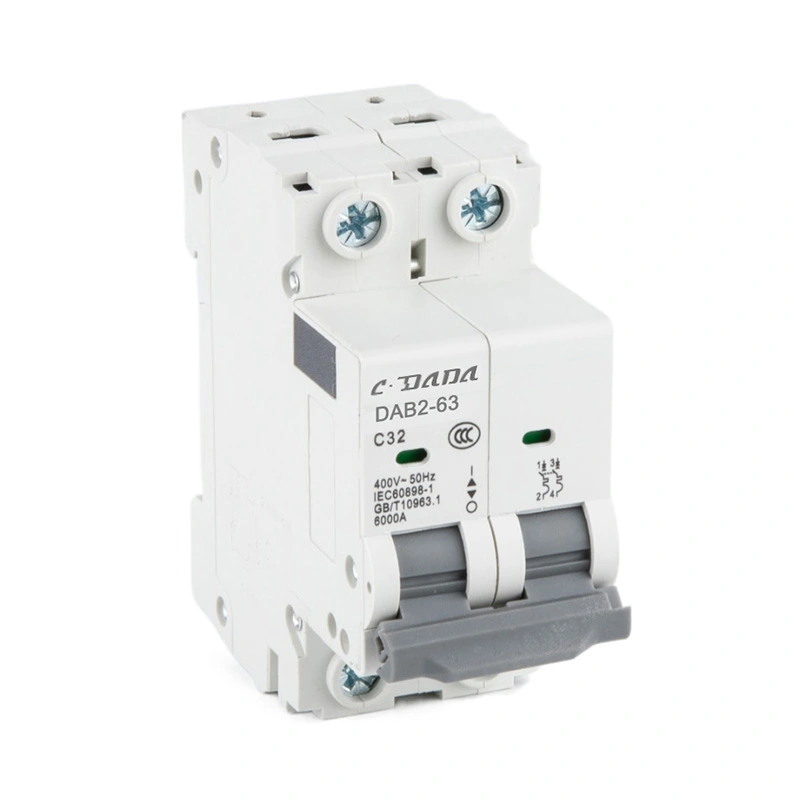

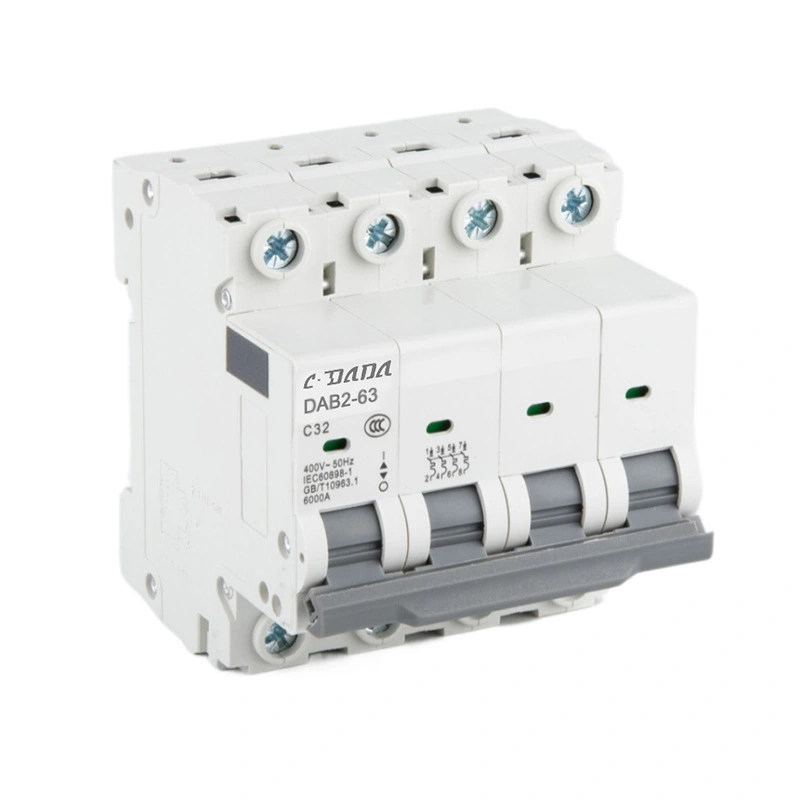

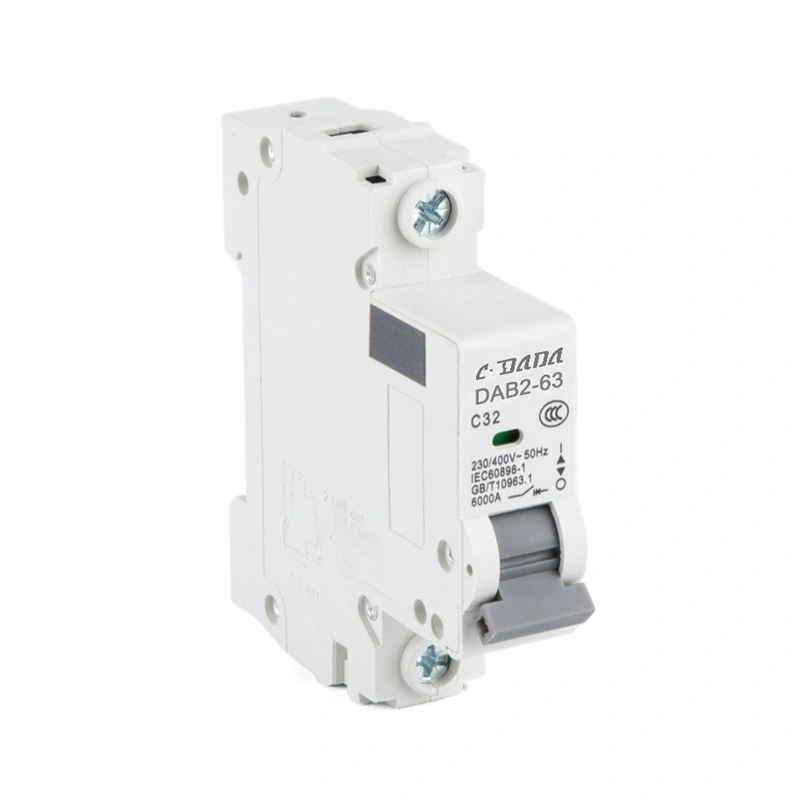

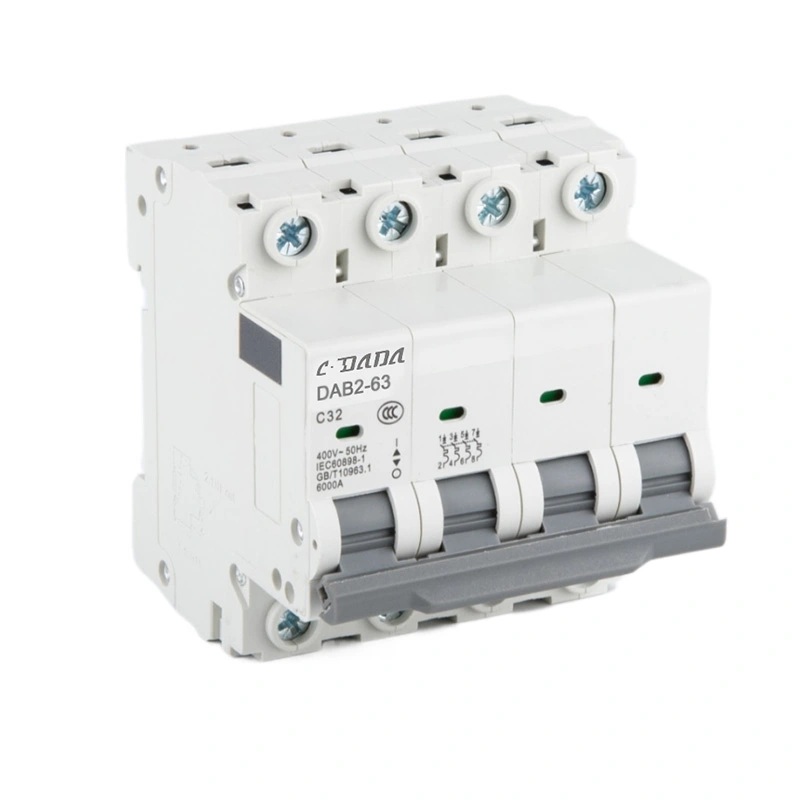

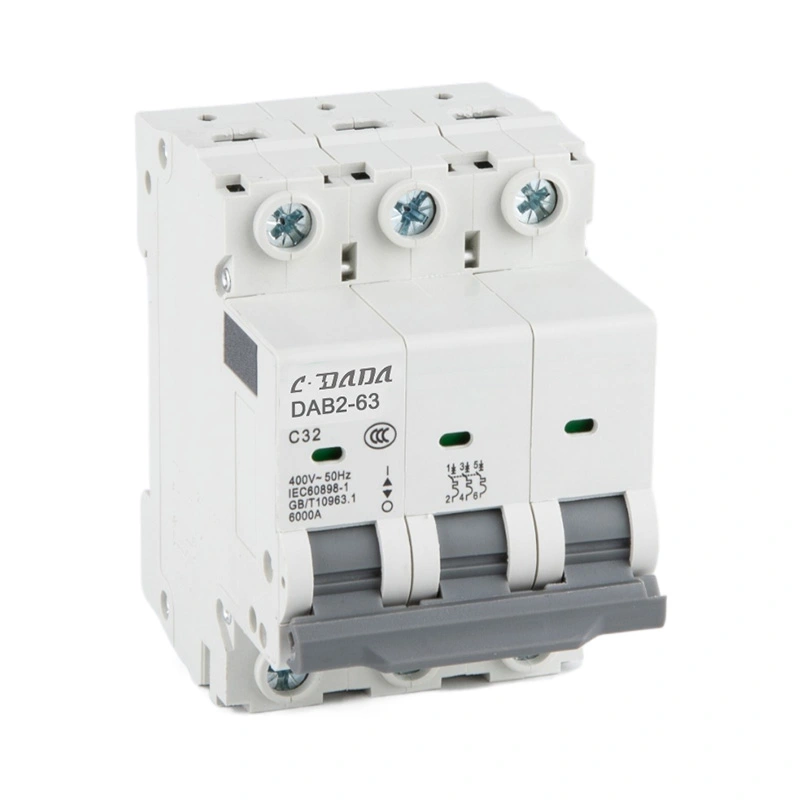

3 Phase MCB Breaker
Model:DAB2-63
E koho iā CDADA ma ke ʻano he mea hana a me ka mea hoʻolako, a loaʻa i kā mākou 3 Phase MCB Breaker, CE CB CCC i hōʻoia ʻia me 6kA hiki ke wāwahi no ka hāʻawi ʻana i ka mana ʻoihana a me ka ʻoihana. Ke hoʻohana nei kēia huahana i ka pūpū pale ahi a me ka hele ʻana o ka thermal-magnetic tripping, maʻalahi ke kau ma luna o ke kaʻaahi DIN a maʻalahi hoʻi e mālama. Hoʻohui ia i ka hana paʻa me ke ola mechanical a me ka uila, e hōʻoia ana i ka pale kaapuni palekana no nā ʻōnaehana mana ʻekolu.
ʻO CDADA DAB2-63 3 Phase MCB Breaker he kiʻekiʻe kiʻekiʻe kiʻekiʻe liʻiliʻi kaapuni kaʻapuni i hoʻolālā ʻia no nā ʻōnaehana hoʻoili mana AC ʻekolu. Hāʻawi ia i ka pale ʻana i ka overload a me ka pōkole pōkole, me ka B/C/D tripping curves e hoʻohālikelike i nā ukana like ʻole.
Kūkulu ʻia me nā mea pale ahi a me nā mea kikoʻī, hoʻohana nui ʻia kēia 3-phase MCB i nā papa hoʻolaha, nā mea hana ʻoihana, a me nā ʻōnaehana uila.
Nā Pōmaikaʻi Nui
★ 3-phase hoʻolālā paʻa, kūpono no nā pahu hoʻolaha maʻamau
★ 6kA kiʻekiʻe haʻihaʻi hiki no ka hilinaʻi pōkole-kaapuni pale
★ puka aniani hōʻike ʻike: ʻulaʻula ON / ʻōmaʻomaʻo OFF no ke kūlana maopopo
★ paʻa lima no ka hana paʻa a me ka pilina paʻa
★ ʻO nā puʻupuʻu hoʻopaʻa notched e hōʻemi i ka wela a hoʻomaikaʻi i ka paʻa o ka uwea
★ paʻa pālua DIN rail clip no ka hoʻokomo wikiwiki a paʻa
★ ʻO ka pūpū ahi-retardant, pale wela kiʻekiʻe
★ 100% piha ho'āʻo hale hana ma mua o ka hoʻouna
Nā noi
★ Hoʻohana nui ʻia ʻo CDADA 3 Phase MCB Breaker ma:
★ Nā papa hoʻolaha hale noho, kālepa a me ka lehulehu
★ Nā hale hana ʻoihana, nā hale hana, a me nā lako uila liʻiliʻi
★ ʻO nā pā, nā mea hoʻoemi, nā pamu, nā mīkini hoʻokiʻekiʻe
★ Nā ʻōnaehana kukui, nā kumu mana, a me nā kaʻa kaʻa kaʻa ʻekolu
★ Nā ʻenehana, nā mana mana, a me nā papahana keena uila
Nā ʻāpana ʻenehana
|
'ikamu |
Hōʻike |
|
Hoʻohālike |
DAB2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Kūlana |
IEC60898-1, GB10963.1 |
|
Palapala |
CE, CB, CCC, ASTA |
|
Kaha Haʻihaʻi |
4.5kA, 6kA |
|
Kuhi ʻia i kēia manawa |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Kaʻahele ʻAha |
B(3-5In), C(5-10In), D(10-20In) |
|
Voltage koho |
400/415V AC |
|
Voltage Insulation |
500V AC |
|
Voltage Hoʻoulu |
4kV |
|
Degere Palekana |
IP20 |
|
Hoʻokomo |
35mm DIN kaʻaahi |
|
Ola Mechanical |
20,000 pōʻaiapuni |
|
Ola Uila |
10,000 pōʻaiapuni |
|
Papa ahi |
UL94 V0 |
|
ʻO ka Temp |
-25 ℃ ~ +45 ℃ |
|
Laulā Uea |
0.75–35mm² paʻa / paʻa |
Nā Ana Hoʻopuka
★ laulā maʻamau: 17.8mm no ka pou
★ 3P nui laula: 53.4mm
★ Ke kau ʻana: 35mm DIN rail (kekahi kūlana)
★ Uea torque: 3.5N·m
★ ʻAno paʻa no nā keʻena uila maʻamau
Ka Mana Mana
★ ʻōnaehana hoʻokele maikaʻi ISO9001
★ 90% o nā mea nui i hana ʻia i loko o ka hale
★ 100% calibration: 1.13Ma ka hele ʻole, 1.45Ma ka huakaʻi
★ ʻO ka hoʻāʻo ʻana i ka huakaʻi hele wāwae (5In / 10In no C-curve)
★ kiʻekiʻe a me ka haʻahaʻa wela hoʻomanawanui
★ Kaʻelemakule a me ka mechanical ola hōʻoia
Hoʻopili a me ka hoʻouna ʻana
★ pahu pahu hoʻokuʻu maʻamau me ka lining shockproof
★ Lepili akaka: kumu hoʻohālike, pole, kēia manawa, nui, palapala hōʻoia
★ Pūʻulu pahu pahu e pale aku i ka ʻōpala a me ka pōʻino
★ He kūpono no ke kai, ka ea, a me ka halihali ʻāina
★ Kākoʻo i ka hoʻopili OEM a me ka lepili maʻamau
Nā hihia holomua o nā mea kūʻai aku
★ ʻO CDADA 3 Phase MCB Breaker he hui lōʻihi me nā mea kūʻai honua:
★ Nā papahana hale noho a me nā hale kūʻai ma ʻEulopa, Asia Hema, Middle East
★ Ka hāʻawi ʻana i ka mana o ka hale hana ʻoihana ma ʻApelika, ʻAmelika Hema, Asia
★ ʻO OEM & ODM hui pū me nā hōʻailona uila honua
★ Hoʻolako nui no ka manawa lōʻihi no nā mea hoʻolaha honua a me nā mea ʻaelike
★ Hoʻohana nui ʻia i loko o nā pahu mana, nā ʻōnaehana, a me nā mea hoʻohui ʻōnaehana uila
Hōʻailona Wela: 3 Phase MCB Breaker, Kina, Mea Hana, Mea Hoʻolako, Hale Hana
