DIN Rail Molded Case Circuit Breaker
Model:DAM3-160
Source advanced DIN Rail Molded Case Circuit Breaker (DAM3-160) mai Shanghai DADA Electric, he mea hoʻolako ʻoihana mākou me ka hale hana ponoʻī. Loaʻa i kēia MCCB ka nui paʻa, a hiki i ka 160A, 16kA hiki ke haki. Ua kau ʻia ke kaʻaahi DIN, IP30, IEC/EN 60947-2 i hōʻoia ʻia. Kūpono no nā pā hale noho & ʻoihana. Hoʻokipa ʻia nā kauoha OEM & nui.
Hoʻonui i ka lewa me ka pale ʻole me ka CDADA DAM3-160 DIN Rail Molded Case Circuit Breaker. Hoʻolālā ʻia no nā papa hoʻolaha o kēia wā, ua kau pololei kēia mea hoʻoheheʻe kaʻa kaʻa 35mm DIN maʻamau, hiki ke hoʻohui pū ʻia me nā mea modular e like me RCDs a me nā mea hoʻopili.
Me nā au i helu ʻia mai ka 10A a hiki i 160A, ka haki ʻana a hiki i ka 16kA, a me ka hoʻokō ʻana me IEC/EN 60947-2, hāʻawi ka DAM3-160 i ka overload ikaika, pōkole, a me ka pale undervoltage - kūpono no nā sub-panels noho, nā hale kalepa, nā keʻena kaʻa kaʻa kaʻa māmā. ʻO kona 25mm no kēlā me kēia pou ka laula ʻo ia ka slimmest 160A-class MCCB ma ka mākeke, ʻoiai nā hiʻohiʻona palekana patent e hōʻoia i ka paʻi a me ka palekana ʻike.
Nā ʻōlelo kikoʻī
| Hoʻohālike: | DAM3-160 Series |
| ʻAno: | ʻO DIN Rail i kau ʻia i ka pahu hoʻoheheʻe kaapuni (MCCB) |
| Pole: | 2P / 3P / 4P |
| Helu ʻia i kēia manawa (Ma): | 10A – 160A |
| Voltage koho (Ue): | 400V / 415V AC, a hiki i 750V (pili pūnaewele) |
| Ka hikiwawe (Icu): | 10kA / 16kA (pili ke kumu hoʻohālike) |

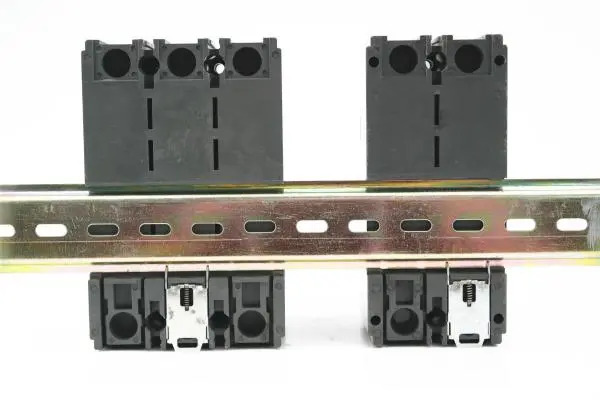

| Ke kau nei: | 35mm DIN rail (patent-protec clip mechanism) |
| Nā ana: | 25mm laula no kēlā me kēia pou - ʻoi aku ka liʻiliʻi o ka ʻoihana ma ka papa 160A |
| Ola Mechanical: | A hiki i 10,000 mau hana |
| Nā helu palekana: | Nā ʻōkuhi: |
| IP20 | Hoʻololi: |
| IP30 Hoʻolālā ʻokoʻa ʻelua |
Nā palapala hōʻoia: |
| IEC/EN 60947-2, RoHS, Pollution Degree III |
|
No ke aha e koho ai i ka CDADA DIN Rail MCCB?
★ Poʻokela hoʻopakele lewa
Ma ka 25mm wale nō no kēlā me kēia pou, mālama ka DAM3-160 DIN Rail Molded Case Circuit Breaker a hiki i 30% ka nui o ka panel vs. MCCB maʻamau—koʻikoʻi no nā pā paʻa i loko o nā hale, nā keʻena telecom, a i ʻole nā papahana hoʻoponopono hou.
★ Hoʻolikelike DIN Rail ʻoiaʻiʻo
'A'ole like me ka "DIN-compatible" breakers e koi ana i nā mea ho'ololi, hiki i ka CDADA patented clip ke ho'okomo pololei i ka ho'opili 'ana-'a'ohe wili, 'a'ohe brackets.
★ Hoʻonui i ka palekana e ka hoʻolālā
● ʻAʻohe wili metala i ʻike ʻia ma mua
● Hōʻikeʻike huakaʻi hōʻailona: ʻEleʻele = ʻōhule, akaka ON/OFF kala
● Paʻa ʻia nā ʻāpana ola ʻoiai inā ua haki ke kī
● Hoʻokomo ʻia nā mea hana me ka hōʻike ʻole ʻana i nā alakaʻi
★ Hiki a hiki i ka wā e hiki mai ana
● Hiki ke hānai ʻia ka mana mai ka laina a i ʻole ʻaoʻao hoʻouka
● Kākoʻo i ka kau ʻana i luna a i lalo paha
● Nā lako koho: huakaʻi shunt, nā mea hoʻopili kōkua, ʻauʻau wili (no ka hoʻopili ʻana i ka puka)
★ Hana Kiʻekiʻe, Kūʻai Haʻahaʻa
Hāʻawi i 16kA hiki i ka haki ʻana i loko o kahi puʻupuʻu māmā, ʻoi aku ka maikaʻi o ka ikehu - ʻoi aku ka maikaʻi o nā mea haki nui ma ke kumukūʻai hoʻokūkū.
Nā noi maʻamau
★ Noho: ʻO ka mea loaʻa kālā nui a i ʻole ka mahele ʻana i nā hale
★ Kalepa: Nā kukui & HVAC panels ma nā keʻena, nā hōkele, nā kula
★ ʻOihana Māmā: ʻO nā panela hoʻomalu mīkini, nā pahu pahu
★ Nā hale hana: Nā hale hoʻokipa kelepona, nā keʻena hoʻoili uila EV, nā pahu hui lā
★ Nā Papahana Retrofit: Hoʻololi i nā mea hoʻoilina hoʻoilina nui me ka ʻole o ka wili hou ʻana
Nīnau pinepine
Q1: Hiki i ka DAM3-160 ke kau pololei ma luna o ke kaʻaahi 35mm DIN?
A1: ʻAe! Hōʻike ia i kahi kiʻi hope i pale ʻia i ka patent-e hoʻopaʻa wale iā ia ma luna o ke kaʻa poʻomanaʻo 35mm maʻamau (IEC 60715). ʻAʻohe mea hoʻopili pono.
Q2: He aha ka nui o ka haki ʻana i loaʻa?
A2: A hiki i 16kA ma 400V, ma muli o ke kumu hoʻohālike (10kA/16kA koho).
Q3: He kūpono ia no ka pale kaʻa?
A3: ʻAe—no ka hoʻomaka ʻana o ka kaʻa kaʻa ʻole (e laʻa.
Q4: Pehea wau e ʻike ai inā ua hele ʻo ia?
A4: Huli ʻeleʻele loa ka puka aniani hōʻike ʻike ke hele. Hōʻike nā kūlana ON/OFF maʻamau i nā lepa kala.
Q5: No ke aha e koho ai i ka CDADA ma luna o nā hōʻailona DIN Rail Molded Case Circuit Breaker?
A5: Hāʻawi ʻo CDADA:
● Mika 160A DIN MCCB ma ka honua holoʻokoʻa (25mm/pole)
● Kau pololei ʻo DIN (ʻaʻohe mea hoʻohui)
● Hoʻolālā palekana maikaʻi loa (ke kālele IP30, ʻaʻohe wili i ʻike ʻia)
● IEC-certified performance with RoHS compliance
● Ke kumu kūʻai ʻoluʻolu OEM a me ke kākoʻo ʻenehana Pelekane
