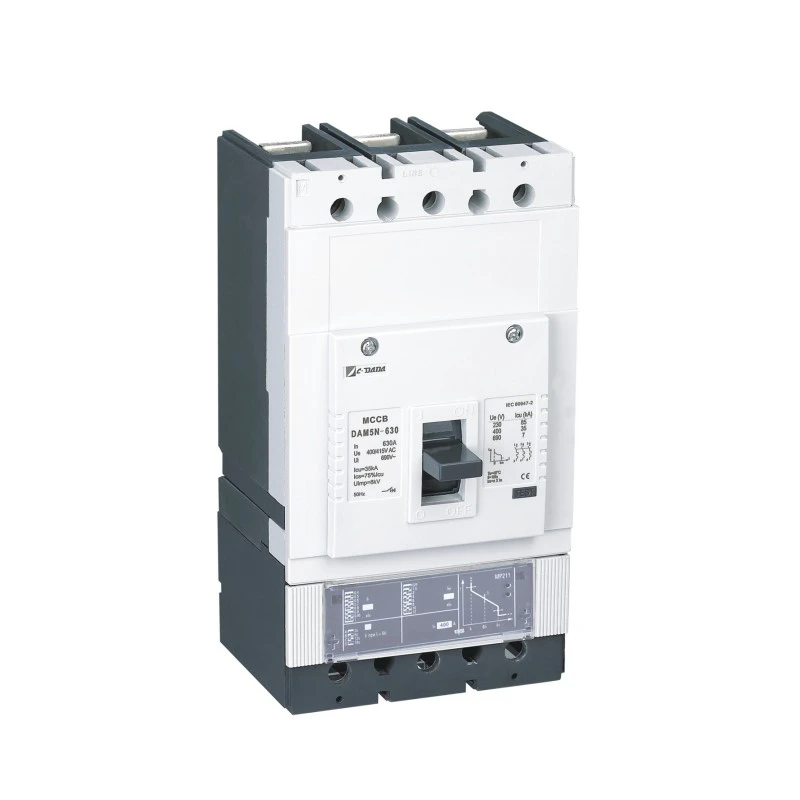

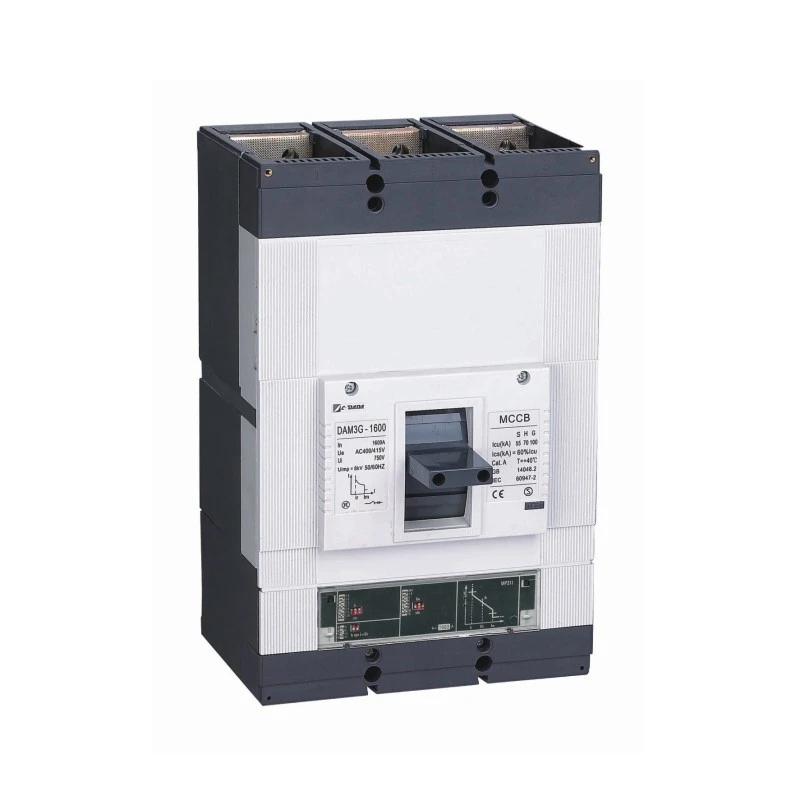

ʻAno Uila i hoʻoheheʻe ʻia ka hihia kaapuni

No nā ʻōnaehana mana hou e koi ana i ka pololei, ka naʻauao, a me ka hilinaʻi, ka Electronic Type Molded Case Circuit Breaker na Shanghai DADA Electric CO., LTD. hoʻonohonoho i kahi kūlana hou i ka pale haʻahaʻa haʻahaʻa. ʻAʻole like me nā mea hoʻoheheʻe thermal-magnetic kuʻuna, hoʻohana kēia MCCB naʻauao i kahi ʻāpana huakaʻi uila i hoʻokumu ʻia i ka microprocessor no ka hoʻopuka ʻana i ka pale o ka overcurrent pololei loa a hiki ke hoʻolālā ʻia—e pili ana i ka loli ʻana o ka wela.

Me nā hoʻonohonoho hiki ke hoʻololi ʻia mai ka 40% a i ka 100% In (thermal) a me 1.5 × i ka 12 × In (magnetic), hāʻawi ia i ka maʻalahi like ʻole no ka hoʻonohonoho paʻakikī i nā kikowaena data, nā mea kanu ʻoihana, nā halemai, a me nā ʻōnaehana ikehu hou. Hoʻohālikelike ʻia mai 100A a i 1600A ma 400V/415V, hoʻohui ia i ka hoʻolālā paʻa me nā hana kiʻekiʻe—a komo pū me ka holo pololei-palekana i ka wā o nā hewa nui, ʻoiai inā hāʻule ka uila.

Nā ʻōlelo kikoʻī

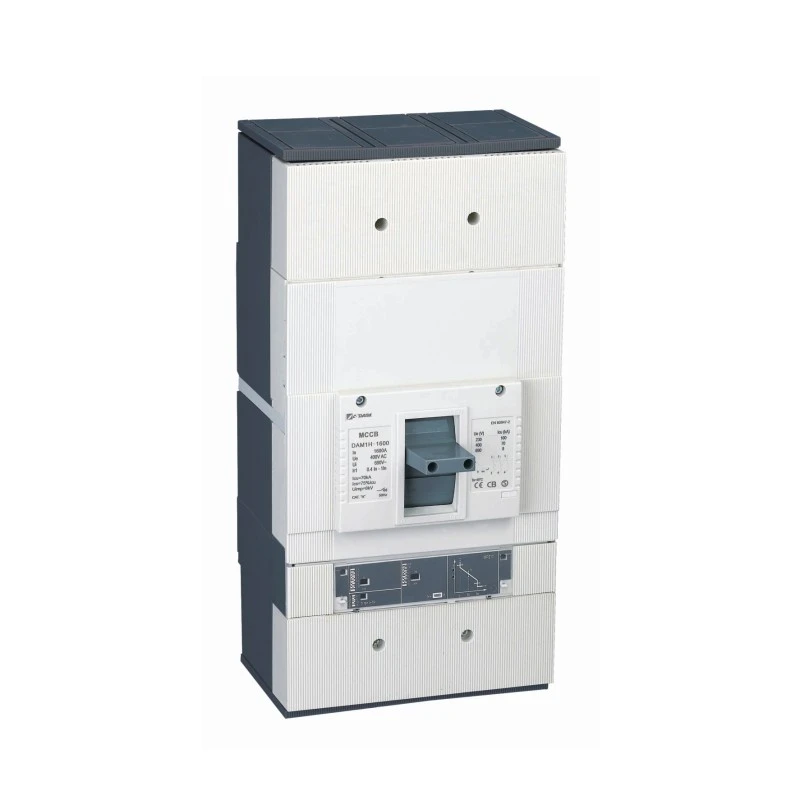

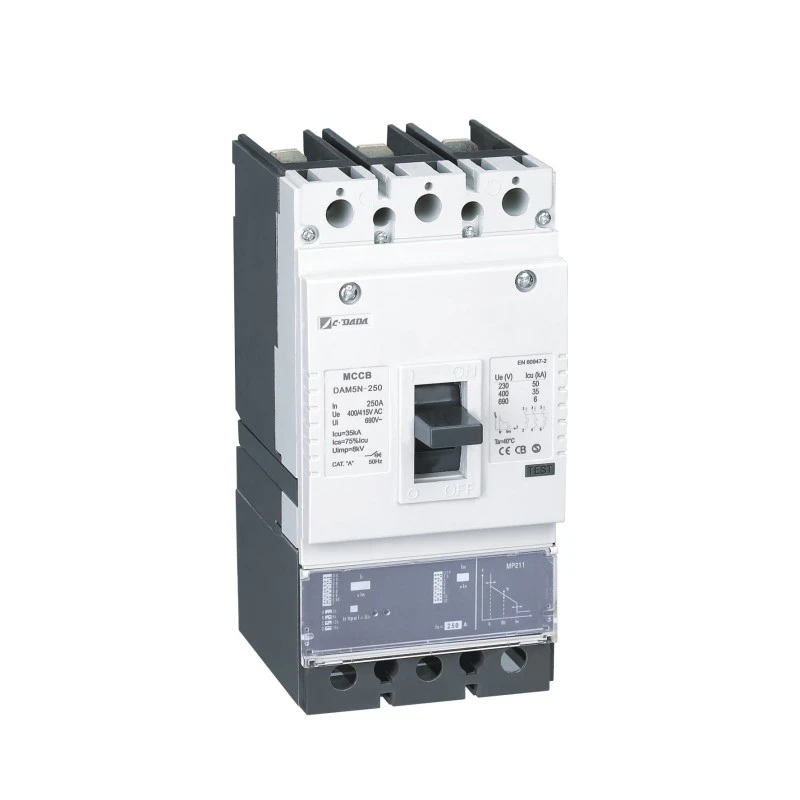

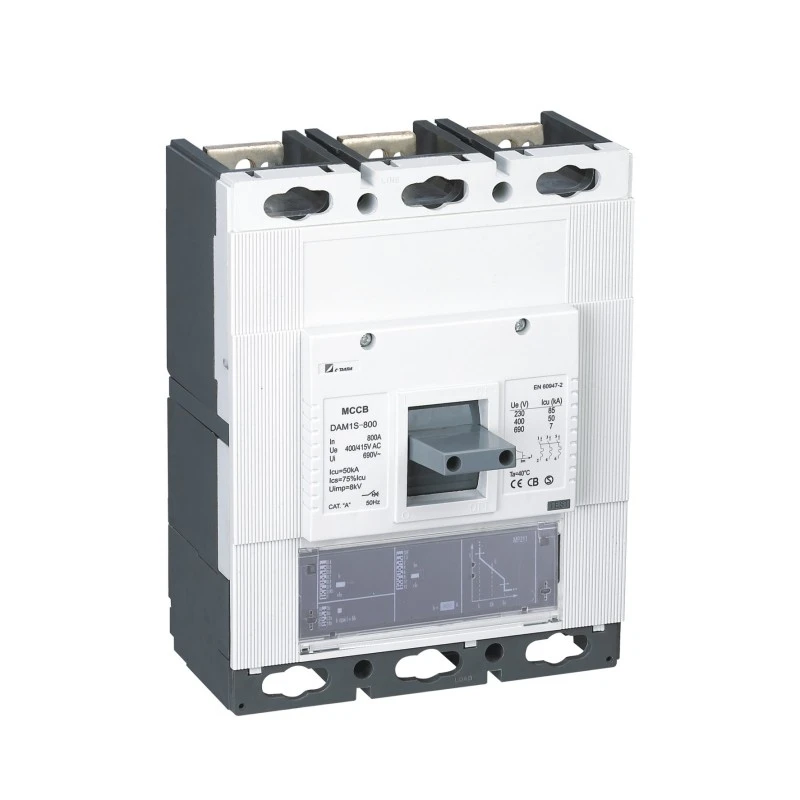

Model: CDADA DAM2 / DE Series (Electronic Type Molded Case Circuit Breaker)

ʻAno: Mea Hoʻoheheʻe Kaapuni i hoʻoheheʻe ʻia

Pole: 3P / 4P

Voltage koho (Ue): 400V / 415V AC

Kuhi ʻia i kēia manawa (Ma): 100A - 1600A

Hui Mākaʻikaʻi: Hoʻokuʻu uila ma muli o ka microprocessor

Hoʻoponopono wela (Ir): 40% - 100% o In

Hoʻoponopono Magnetic (Im): 1.5× – 12× In

Pono

★ Ka laula laula:100A a i 1600A(AC)

★ Nā ana paʻa

★ Hiki ke hoʻonohonoho wela (40-100%)Ma.

★ Hoʻonohonoho magnetic hiki ke hoʻololi (1.5-12times)Ma.

★ Push to trip hoʻolako pihi.

★ E hoʻokaʻawale i nā mea hoʻopili nui a me ka arcing

★ Ka laulā o nā lako.

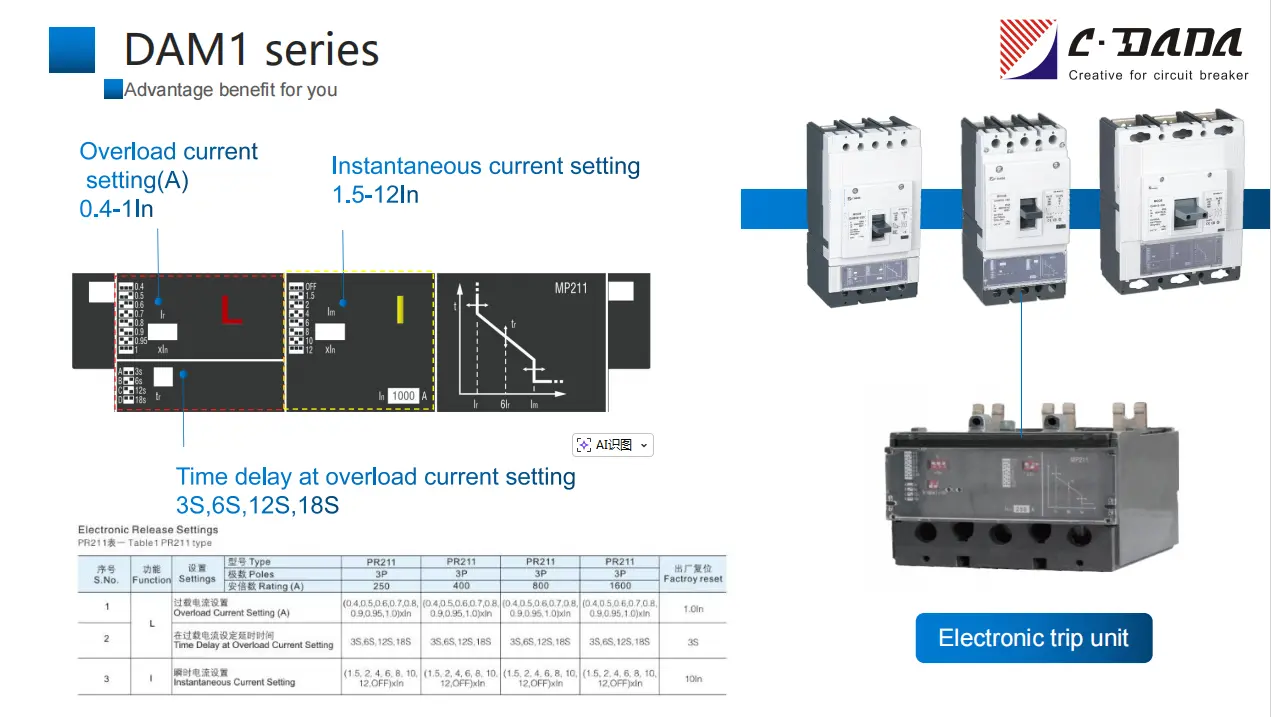

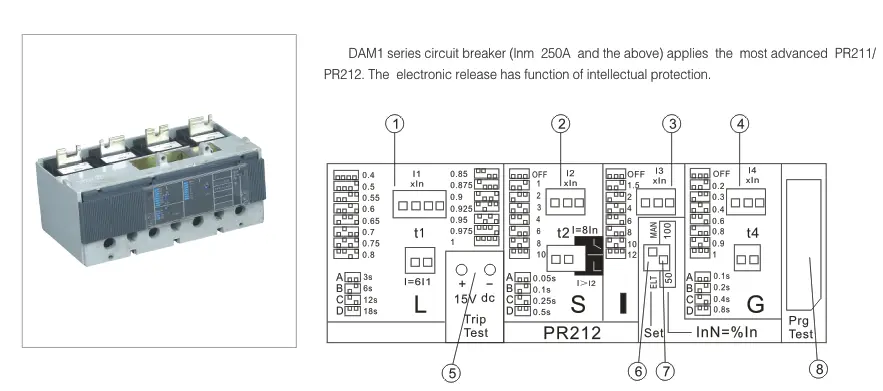

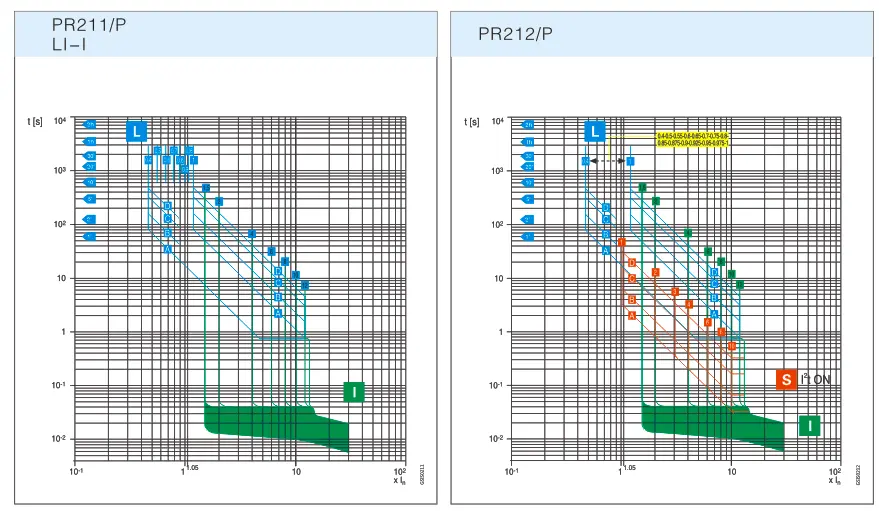

Pipi hiʻona hoʻokuʻu uila

Nā palena uila

Papa 1 PR211 ano

S.Aole.

Hana

Nā hoʻonohonoho

ʻAno

PR211

PR211

PR211

PR211

Hoʻopau ʻo Factroy

Pololei

3P

3P

3P

3P

Papa helu (A)

250

400

800

1600

1

L

Hoʻohālua i kēia manawa (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0In

2

Hoʻopaneʻe ka manawa ma kahi hoʻonohonoho o kēia manawa

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Ka hoʻonohonoho ʻana i kēia manawa

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10Ma

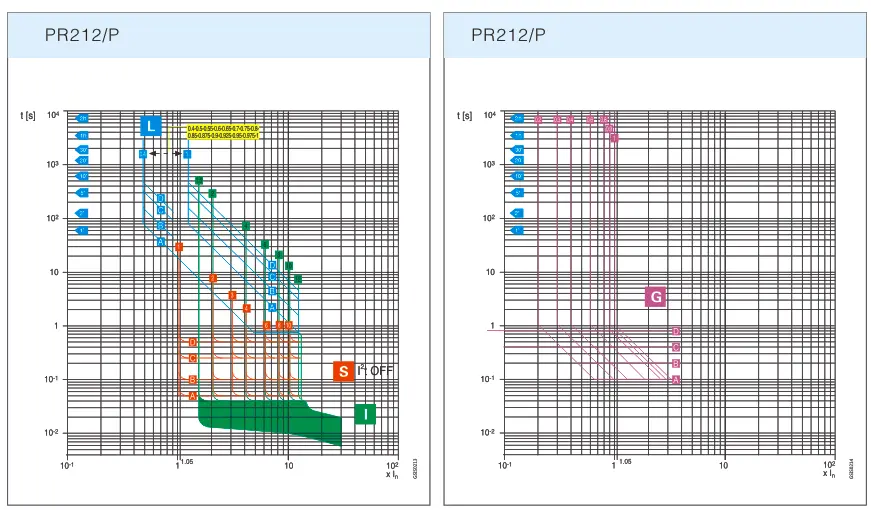

Papa 2 ʻano PR212

S.Aole.

Hana

Nā hoʻonohonoho

ʻAno

PR212

PR212

PR212

PR212

Hoʻopau ʻo Factroy

Pololei

3P

3P

3P

3P

Papa helu (A)

250

400/630

800

1600

1

L

Hoʻohālua i kēia manawa (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0In

2

Hoʻopaneʻe ka manawa ma kahi hoʻonohonoho o kēia manawa

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Pokole - Kaapuni o kēia manawa (A)

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

6Ma ka

4

Hoʻopaneʻe ka manawa ma ke kaapuni pōkole o kēia manawa

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Ka hoʻonohonoho ʻana i kēia manawa

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10Ma

6

G

ʻO ka hoʻonohonoho ʻana o ka hewa o kēia manawa (A)

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

1.0In

7

Hoʻopaneʻe ka manawa ma ka hoʻonohonoho hewa honua

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Ke koho ʻana i nā ʻāpana uila a uila paha

SET hana (hoʻololi ELT/MAN)

9

Hoʻohana ʻia no ka hoʻonohonoho ʻana i nā ʻāpana o ka hoʻololi dip o ka laina zero

InN=%Ma, hoʻololi 50/100

10

Socket no ka mea ana ana

Puku panel

No ke aha e koho ai i ka CDADA Electronic MCCB?

★ Naʻauao ʻOiaʻiʻo, ʻAʻole ʻOtometi wale nō
Ke kālailai mau nei ka microprocessor i nā ʻano nalu o kēia manawa, e hiki ai ke hoʻopaʻa pololei i ka manawa inverse-time, ka manawa paʻa, a me ka pale koke—me ka ʻole o ka neʻe ʻana ma muli o ka wela a me ka ʻelemakule.

★ Hoʻolālā Palekana ʻAʻole
ʻOiai inā hāʻule ka uila uila, ʻo kahi latch electromagnetic pololei e hōʻoiaʻiʻo i ka huakaʻi haʻihaʻi i nā kaʻa pōkole koʻikoʻi - e hoʻokō i nā koi palekana palekana IEC 60947-2.

★ Hoʻohui Kiʻekiʻe
Hiki i nā pae hoʻoponopono ākea ākea (40–100% Ir, 1.5–12× Im) ka hoʻonohonoho pono ʻana me nā mea hana i luna/lalo—e hoʻemi ana i nā ʻāpana outage.

★ ʻOihana Hoʻonaʻauao Hou
Hoʻohālikelike me nā modula kamaʻilio koho (Modbus RTU, Profibus) no ka hoʻohui ʻana i loko o nā Pūnaehana Hoʻokele Hale (BMS) a i ʻole nā ​​māka akamai.

★ Ka maikaʻi o ka honua, ke kumu kūʻai hoʻokūkū

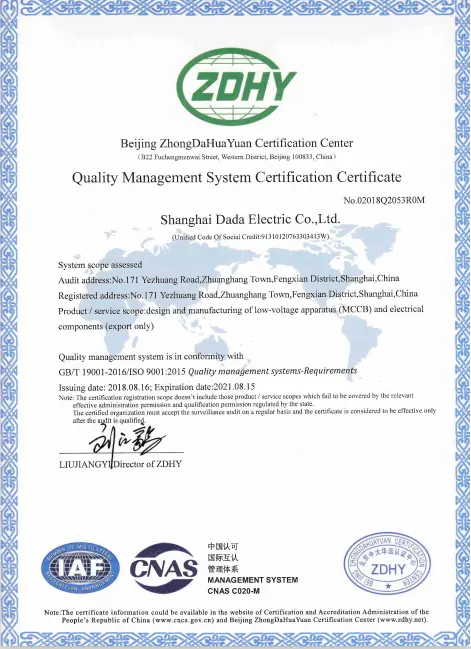

Hana ʻia ma lalo o ISO 9001 ma Shanghai, me nā palapala hōʻoia honua-e hāʻawi ana i ka hana pae ʻEulopa ma ka maikaʻi o ke kumukūʻai o Asia.

★ Loaʻa iā mākou kahi hui hoʻolaʻa o nā ʻenekini 15 e kālele ana i ka hoʻomohala huahana, hoʻomaikaʻi, a me ka hana maʻamau.

Nā noi kūpono

Nā Pūnaehana ʻIkepili: Kāohi i ka hāʻule ʻana o ka holo ʻana me ka huakaʻi koho pololei

Nā Halemai: E hōʻoia i ka mana ʻole no nā ʻōnaehana kākoʻo ola

ʻOihana ʻOihana: E hui pū me nā VFD, nā mea hoʻomaka palupalu, a me nā robotics

Nā Mahiʻai Solar/Wind: E hoʻololi i nā moʻolelo o nā hanauna hoʻololi

Nā Hale Kūʻai Naʻauao: E ʻae i ka nānā ʻana i ka ikehu me ka ʻole o nā mika keu

Nā nīnau i nīnau pinepine ʻia (FAQ)

Q1: He aha ka mea e ʻokoʻa ai ka MCCB uila mai kahi thermal-magnetic?

A1: Hoʻohana nā mea hoʻoheheʻe kaapuni ʻano uila i kahi microprocessor e kālailai i kēia manawa a hoʻomaka i nā huakaʻi me ka pololei kiʻekiʻe. ʻAʻole pili ʻia lākou e ka wela ambient, hāʻawi i nā pae hoʻoponopono ākea, a hiki ke hāʻawi i ka hoʻopaʻa ʻana i ka ʻikepili ukana—ʻaʻole like me nā ʻano thermal-magnetic bimetal/solenoid.

Q2: Loaʻa ka 1600A uila MCCB i ka hoʻonohonoho 4-pole?

A2: ʻAe— loaʻa nā MCCB uila CDADA āpau mai 250A a i 1600A ma nā mana 3P a me 4P.

Q3: He aha ka hopena inā hāʻule ka ʻāpana huakaʻi uila i ka wā pōkole?

A3: Aia i loko o ka mea haʻihaʻi kahi hoʻihoʻi mīkini: i ka wā o ka hewa nui loa (>12×In), hoʻomaka ka latch magnetic i ka wehe pololei—e hōʻoia ana i ka palekana a me ka uila uila.

Q4: Hiki iaʻu ke nānā i nā waiwai o kēia manawa?

A4: ʻAe—hōʻike ka ʻāpana huakaʻi uila i ka manawa koke, max, min, a me ka awelika o kēia manawa ma nā puka makani hiki ke koho ʻia (e laʻa, 24h), pono no ka hoʻokele ikehu.

Q5: No ke aha e koho ai i ka CDADA ma luna o nā hōʻailona MCCB naʻauao ʻē aʻe?

A5: Hāʻawi ʻo CDADA:

● ʻO ka hiki ke hoʻololi ʻia ʻelua ʻano ʻoiaʻiʻo (nui nā mea hoʻokūkū e kaupalena iā Im i ≤10×)

● ʻAʻole i loaʻa kēia i nā MCCB "electronic" a pau)

● Nui paʻa—kūpono i nā paneli kahiko me ka hoʻololi ʻole

● Puke palapala hōʻoia honua ikaika (ASTA, KEMA, CE)

● ʻO ke kumu kūʻai aloha OEM me ke kākoʻo ʻenehana ma ka ʻōlelo Pelekania
