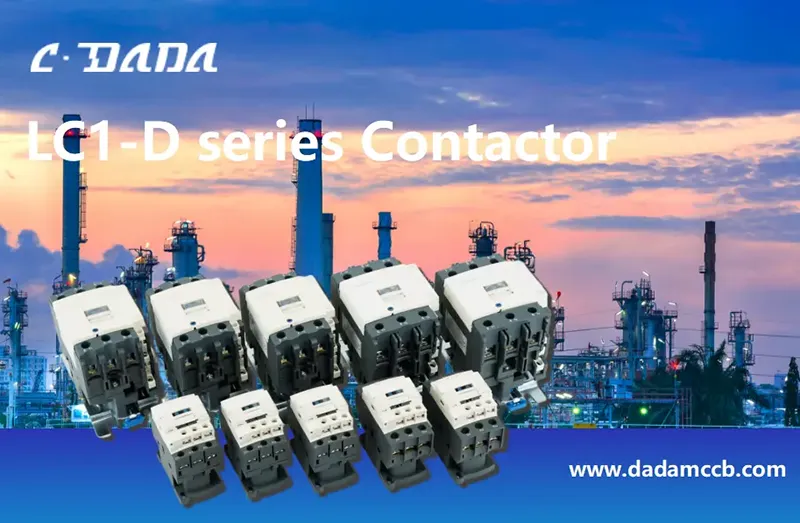

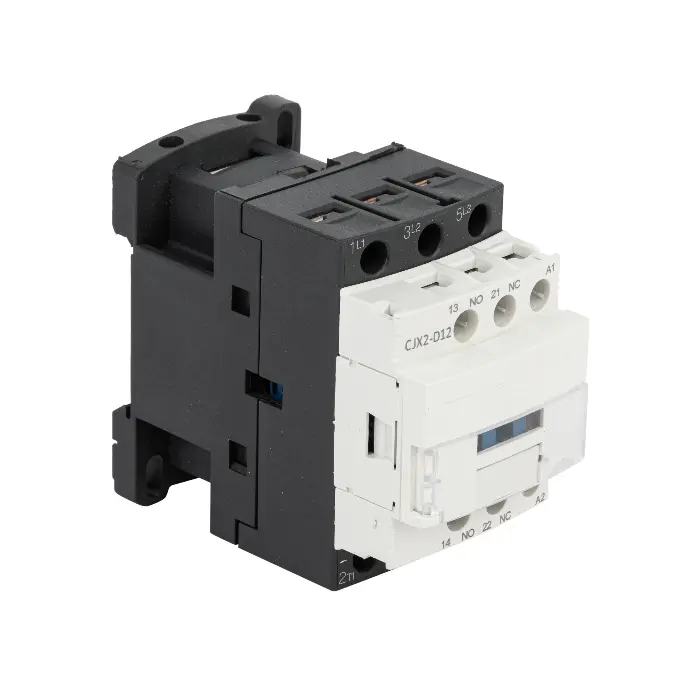

D Hoopili

Model:LC1-D Series

He mea hana hilinaʻi ʻo Shanghai DADA Electric a loaʻa iā mākou nā hōʻailona ponoʻī, CDADA. ʻO kā mākou D Contactor (LC1-D Series) i hōʻoia ʻia ʻo IEC 60947-4-1, 3P / 4P, a hiki i 620A, AC-3 / AC-4 helu ʻia. ʻO nā koho volt coil ākea. Manaʻo mākou i kēia huahana no ka mana kaʻa a me ka automation ʻoihana, e kelepona mai iā mākou no kahi ʻōlelo.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻEnekinia hilinaʻi kaʻa kaʻa kaʻa a me ka hoʻololi mana me ka CDADA LC1-D Series D Contactor kahi mea hoʻopili AC kiʻekiʻe i hoʻolālā ʻia e Shanghai DADA Electric CO., LTD e hoʻokō i nā kūlana IEC/EN 60947-4-1. Kūkulu ʻia no nā noi ʻoihana, ʻoihana, a me nā ʻoihana, kākoʻo ka LC1-D i nā hoʻonohonoho 3-pole a i ʻole 4-pole me nā kaha helu ʻia mai 9A a 95A (a hiki i 620A i nā ʻano hana koʻikoʻi) a hoʻokele i nā motika squirrel-cage 3-phase a hiki i 45kW (ma 380-380A, AC-315).

Hoʻolako ʻia me nā mea hoʻopili kōkua maʻamau 1NO + 1NC, ua hoʻohui pono ʻia me nā relays overload thermal no ka pale kaʻa piha. Me nā koho coil AC a i ʻole DC (24V–600V), AC-3 a me AC-4 hoʻohana ʻana i nā waeʻano, a me kahi hoʻolālā ikaika i helu ʻia no ka insulation 690V, hāʻawi ka CDADA D Contactor i ka hana hilinaʻi i nā pōʻai hoʻomaka pinepine, nā ʻōnaehana conveyor, nā pamu, nā compressors, a me nā ʻāpana HVAC - a hiki i kahi 40 ° C ke koi aku nei. kiʻekiʻe.

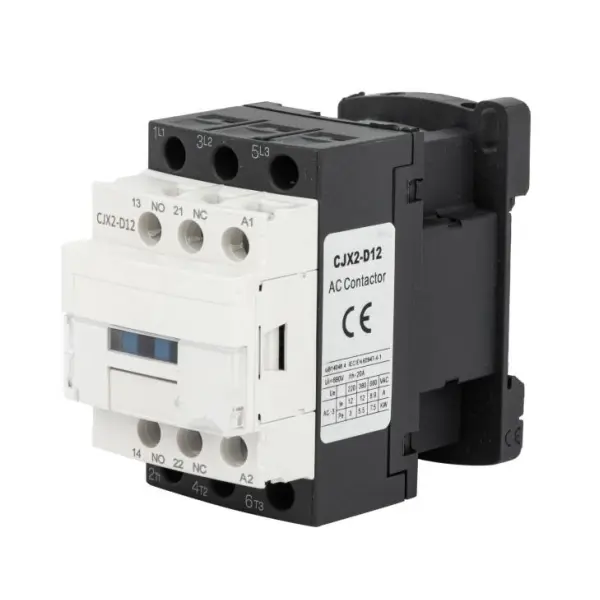

D Contactor

Nā ʻōlelo kikoʻī

Moʻo: D Contactor

Kahua: CDADA | Mea Hana: Shanghai DADA Electric CO.,LTD

Kūlana: IEC/EN 60947-4-1

Palapala hōʻoia: CE

Pole: 3P a i ʻole 4P (hiki ke koho ʻia)

ʻIke ʻia ka hana o kēia manawa (AC-3): 9A – 95A (a hiki i 620A i ka laulā lōʻihi)

Mana Mana Mana (AC-3):

380/415V: 4kW – 45kW

660/690V: a hiki i 45kW

Nā Māhele Hoʻohana: AC-3 (nā kaʻa squirrel-cage), AC-4 (plugging & inching)

ʻO ka Voltage Insulation i koho ʻia: 690V AC

Ka Mahana Kaiapuni: –5°C a i +40°C

Kiʻekiʻe: ≤ 2000m

Ke kau ʻana: ʻO ka mokulele kū pololei ± 5°, Kau ʻana i ke ʻano III

Hoʻopili kōkua: 1NO + 1NC (maʻamau ma nā hiʻohiʻona āpau)

Nā Koho Coil:

Nā Coils AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Nā Coils DC: 24V, 36V, 48V, 110V, 220V

Pepa ʻikepili ʻenehana

Nā mea		Hoʻohālike	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Pole			3/4	3/4	3/4	3/4	3/4
Hoʻopili kōkua			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
ʻĀnō hoʻomehana maʻamau (A) AC-1			20	20	30	40	50
Hoʻoholo ʻia i ka hana kēia manawa (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Voli uila hoʻokaʻawale ʻia (V AC)			690	690	690	690	690
Mana o ka hoomaluia ʻĀpana 3 kaʻa kaʻa (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
wili AC (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V)			24,36,48,110,220

Nā mea		Hoʻohālike	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Pole			3/4	3/4	3/4	3/4	3/4
Pokika Kaapuni Auxilirary:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
ʻĀnō hoʻomehana maʻamau (A) AC-1			60	80	80	110	110
Hoʻoholo ʻia i ka hana kēia manawa (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Voli uila hoʻokaʻawale ʻia (V AC)			690	690	690	690	690
Mana o ka hoomaluia ʻĀpana 3 kaʻa kaʻa (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
wili AC (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V)			24,36,48,110,220

Nā mea			Hoʻohālike		LC1-D115		LC1-D150		LC1-D170		LC1-D205		LC1-D245
Pole					3		3		3		3/4		3/4
ʻĀnō hoʻomehana maʻamau (A) AC-1					200		200		200		275		280
Hoʻoholo ʻia i ka hana kēia manawa (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Voli uila hoʻokaʻawale ʻia (V AC)					690		690		690		690		690
Mana o ka hoomaluia ʻĀpana 3 kaʻa kaʻa (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
wili AC (V)					110,127,220,240,380,415,440,480,500,600
Nā mea				Hoʻohālike		LC1-D300		LC1-D410		LC1-D475		LC1-D620
Pole						3/4		3/4		3/4		3/4
ʻĀnō hoʻomehana maʻamau (A) AC-1						360		430		580		850
Hoʻoholo ʻia i ka hana kēia manawa (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Voli uila hoʻokaʻawale ʻia (V AC)						690		690		690		690
Mana o ka mana 3-phase kaʻa kaʻa (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
wili AC (V)						110, 127,220,240,380,415,440,480,500,600

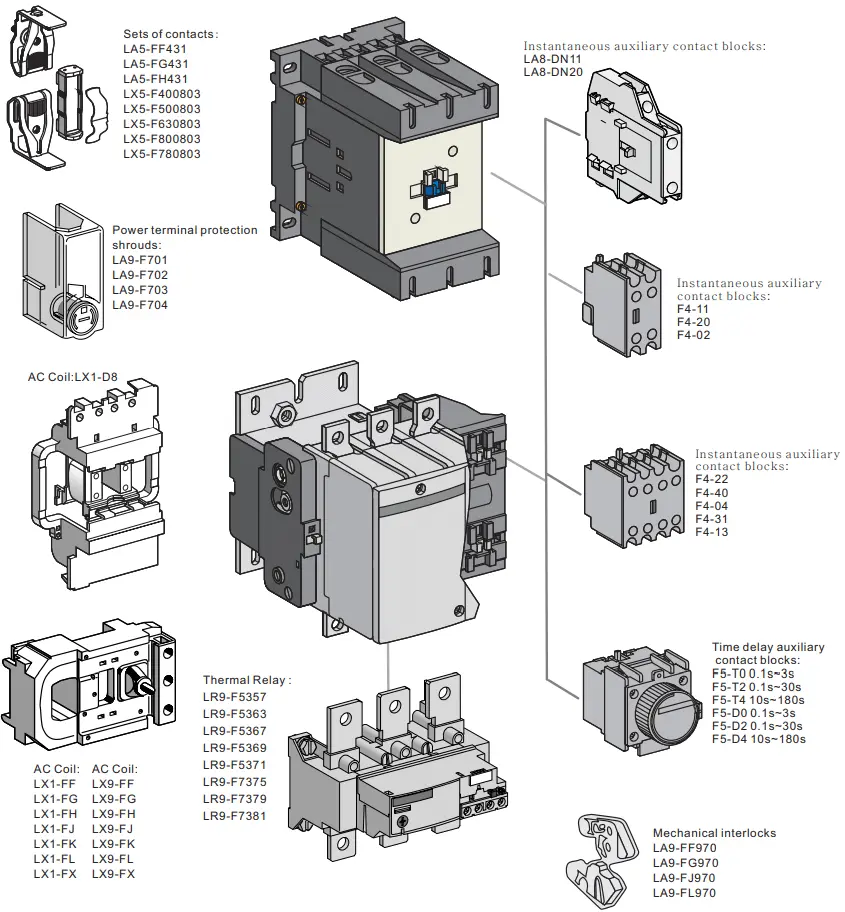

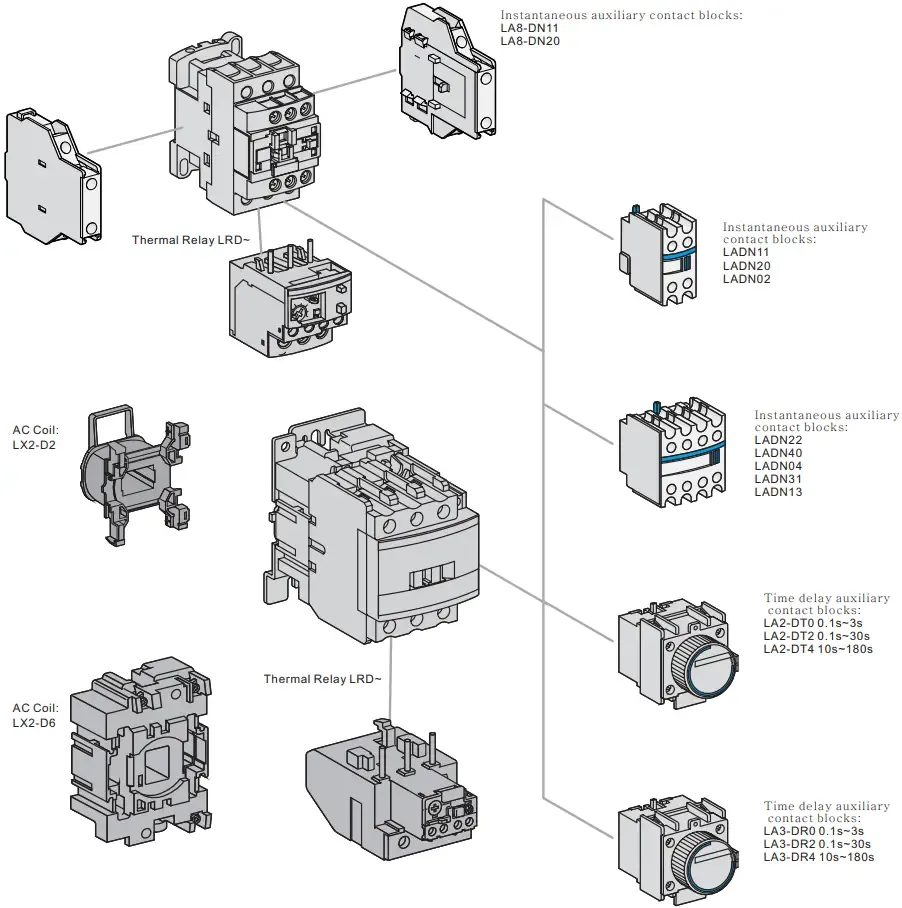

Mea lako

D Contactor

No ke aha e koho ai i ka CDADA D Contactor?

★ Hoʻokō IEC ʻoiaʻiʻo

Hoʻolālā ʻia a hoʻāʻo ʻia i IEC/EN 60947-4-1-e hōʻoia i ka ʻae ʻana o ka honua a me ka interoperability.

★ Hoʻoholo Mana Mana Kaʻa piha

E hoʻopaʻa pū me nā relay wela wela CDADA no nā hui hoʻomaka kaʻa holoʻokoʻa—kaumaha + kaapuni pōkole + kaʻawale.

★ Hiki i ka Voltage ākea

E koho mai 13 AC a me 5 DC coil voltages—makemake no nā papahana honua a i ʻole nā panela huikau.

★ Paʻa no ka hana kaumaha

Kākoʻo i ka hana AC-4 (hoʻohuli pinepine / hoʻopili) - kūpono no nā cranes, elevators, a me nā mea lawe.

★ Hoʻohui pū me ka pāʻani

Hiki i nā pilina kōkua maʻamau 1NO+1NC ke hoʻopili maʻalahi, ka hōʻailona, a i ʻole ka pane PLC.

★ Paʻa Paʻa Hana Hana

Hoʻāʻo ʻia no ka hoʻomanawanui uila kiʻekiʻe, ke kūpaʻa haʻahaʻa haʻahaʻa, a me ka hoʻopaʻa arc kūpaʻa-e hoʻemi ana i ka manawa hoʻomaha.

★ ʻO kā mākou mau pōmaikaʻi nui: 1) Hoʻopiha piha i nā palapala hōʻoia honua, 2) ikaika OEM / ODM hiki, 3) kiʻekiʻe kumukūʻai-hana ratio, 4) hilinaʻi nui-scale hana mana, 5) Extensive export experience.

D Contactor

★ Ua hoʻolaha maikaʻi ʻia kā mākou huahana i ka Hikina Hema, ka Middle East, ʻAmelika Hema, ʻApelika, ʻEulopa, a me nā ʻāina CIS, me ka nānā nui ʻana i nā mākeke Belt a me alanui.

D Contactor

Nā noi maʻamau

D Contactor Nā mea hoʻomaka kaʻa: Pumps, fan, compressors, mixers

D Contactor Nā Pūnaehana HVAC: Chiller & blower control

D Contactor ʻOihana ʻOihana: Nā laina conveyor, nā mīkini pahu

D Contactor Hooponopono Hale: Ka hoomalu ana i ka Elevator, bana kukui

D Contactor Ike a me ka wai: Hoʻomaʻamaʻa wai ʻino, ʻōnaehana wai

Nīnau pinepine

Q1: He aha ka manaʻo o "D Contactor"?

A1: ʻO "D" e pili ana i ka inoa o ka moʻo (LC1-D) i hoʻohana ʻia ma ka honua holoʻokoʻa no kēia modular, standardized AC contactor platform. ʻAʻole ia he hoʻohālikelike ʻenehana - akā ʻike nui ʻia i ka hale papa no kona kūlike me nā mea pono e like me ka overload relays a me ka mechanical interlocks.

Q2: He aha ka ʻokoʻa ma waena o ka hana AC-3 a me AC-4?

A2:

● AC-3: Hoʻomaka / hoʻomaha maʻamau o nā motika squirrel-cage (e.g., pumps, fans). Ke kaumaha haʻahaʻa.

● AC-4: Hoʻopili pinepine ʻia, ʻīniha, a hoʻohuli paha (e laʻa, nā cranes, hoists). ʻOi aku ke koʻikoʻi uila → pono i nā mea hoʻopili ikaika. → Ua helu ʻia ʻo CDADA LC1-D no nā mea ʻelua, e hoʻolilo iā ia i mea maʻalahi.

Q3: Hiki iaʻu ke hoʻohana i kēia contactor me ka ʻole o ka relay overload?

A3: ʻAʻole ʻōlelo ʻia no nā ukana kaʻa. Hoʻololi wale ka mea hoʻopili i ka mana-ʻaʻole ia e pale i ka hoʻonui. Hoʻohui mau me kahi relay wela a i ʻole uila no ka palekana kaʻa.

Q4: Loaʻa nā mana 4-pole?

A4: ʻAe! Kākoʻo nā hiʻohiʻona LC1-D āpau i nā hoʻonohonoho 3P a i ʻole 4P — kūpono no nā noi hoʻololi kūʻokoʻa a i ʻole nā ʻōnaehana 4-wire.

Q5: No ke aha e koho ai i ka CDADA ma luna o nā mea hoʻopili D-series?

A5: Hāʻawi ʻo CDADA:

● Hoʻokō pono IEC 60947-4-1 me nā hōʻike hoʻāʻo

● ʻOi aku ka nui o nā puʻupuʻu uila coil (me 415V, 480V, 600V no ka lawe ʻana aku)

● ʻO ka maikaʻi kūlike me nā mea pili kālā-alloy a me nā chutes arc

● ʻO ke kumu kūʻai ʻoluʻolu OEM a me ka huli ʻana o ka laʻana wikiwiki

● Nā palapala hōʻoia honua (CE) a me nā palapala Pelekane
