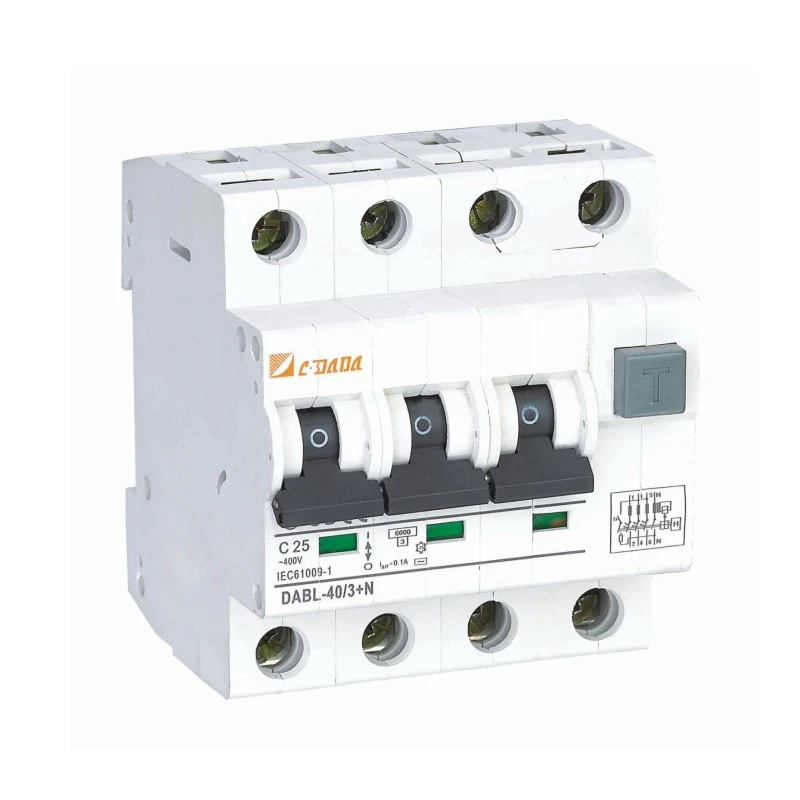

2P 4P ʻAno uila RCBO

Hoʻonui i ka palekana i nā mea hoʻokomo uila hou me ka CDADA DABL-63 2P 4P Electronic Type RCBO—he mea hoʻokaʻawale kaapuni o kēia manawa me ka hoʻomalu overcurrent i hana ʻia e Shanghai DADA Electric CO., LTD. Hoʻolālā ʻia no nā noi 2P (1+N) a me 4P (3+N), hāʻawi kēia RCBO uila i ka pale ʻehā-i-hoʻokahi:

Ka pale ʻana i ka haʻalulu uila (ma o 30mA koena ʻike i kēia manawa),

ʻO ka pale ʻana i ka overload,

Hoʻopiʻi kaapuni pōkole (6kA hiki ke haki),

Ka hoʻopau ʻana i ka piʻi ʻana (hoʻohui D-class varistor).

He kūpono no nā kumu waho, nā kukui kaʻa, nā kaapuni lalo, a me nā mea hānai mea hana, ʻo ka DABL-63 e hālāwai me nā kūlana CE, CB, a me RoHS a loaʻa i kahi module ʻokoʻa uila no ka ʻike hewa ʻana. Me ka laulā 2-module DIN, hōʻailona kūlana pili kūʻokoʻa, a me -25 ° C a + 40 ° C ka laulā hana, ua kūkulu ʻia no ka hilinaʻi ma nā ʻano piʻi like ʻole a me nā hoʻonohonoho noho / ʻoihana.

Nā ʻōlelo kikoʻī

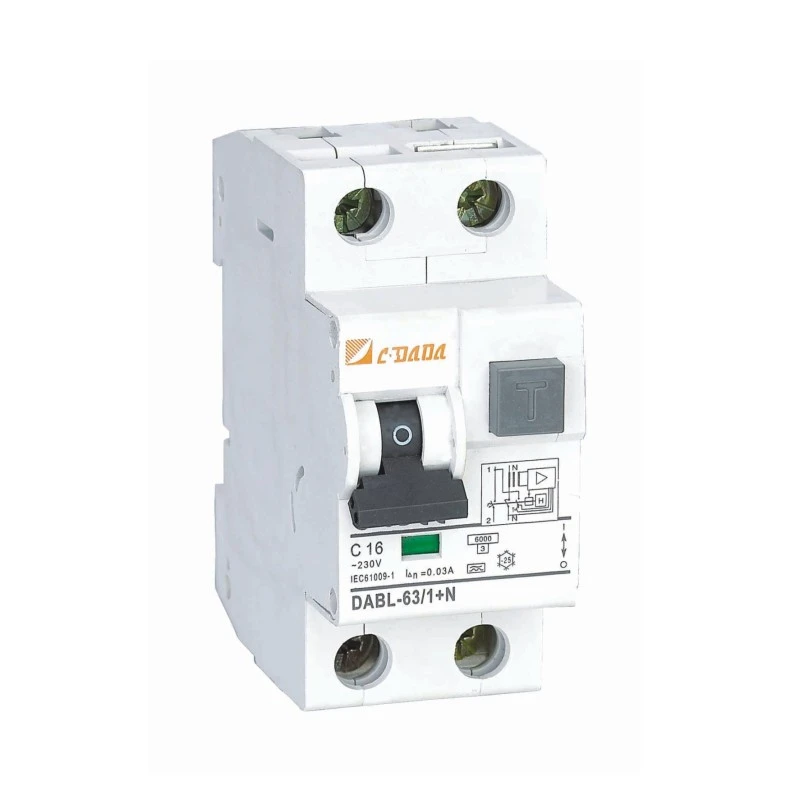

Hoʻohālike: DABL-63 Series

ʻAno: Electronic RCBO (Ke koena o kēia manawa me ka pale ʻoi aku ka nui)

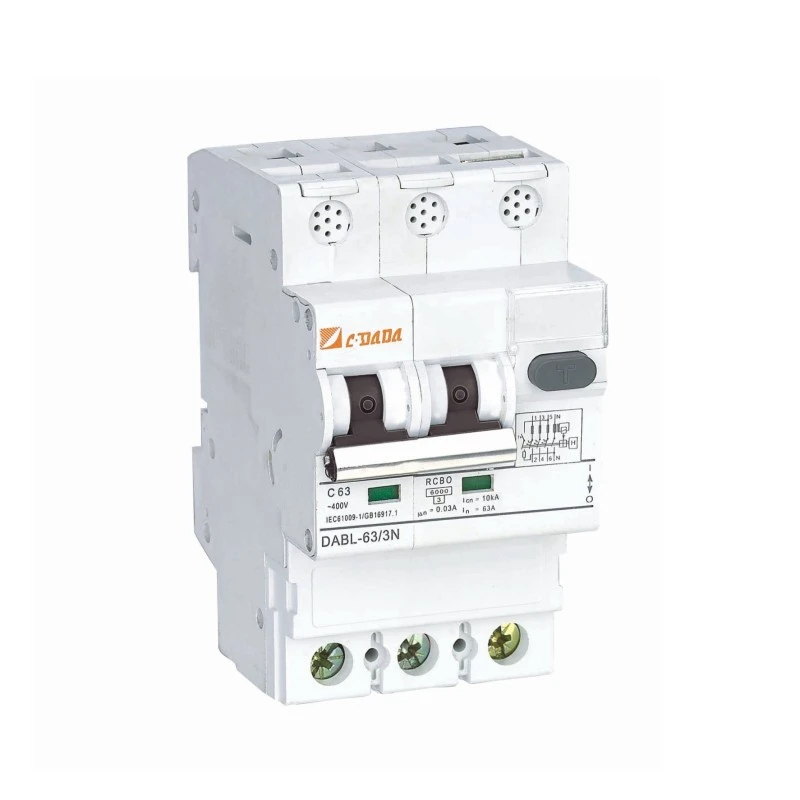

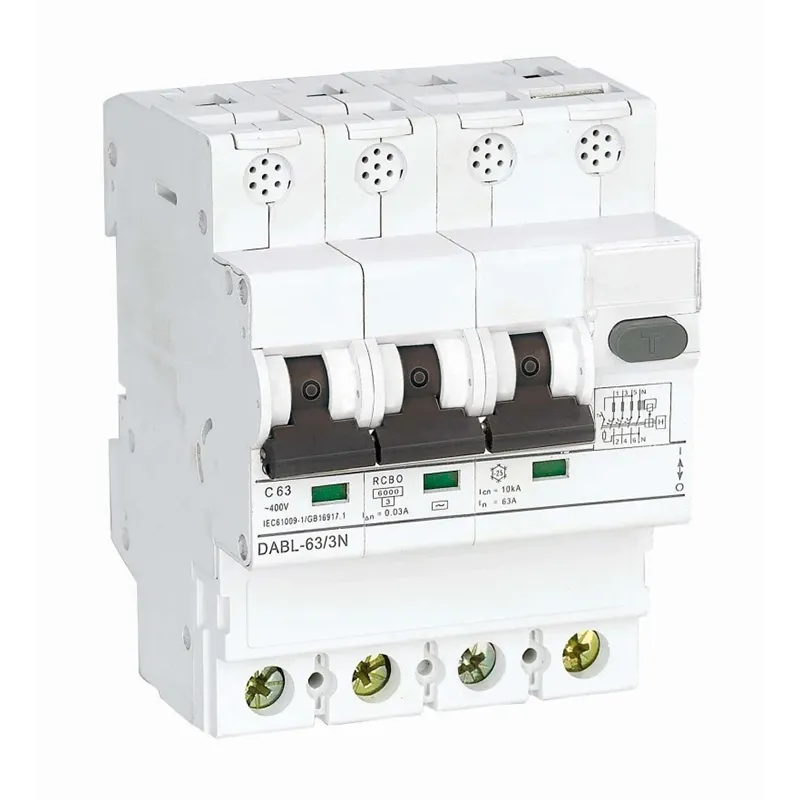

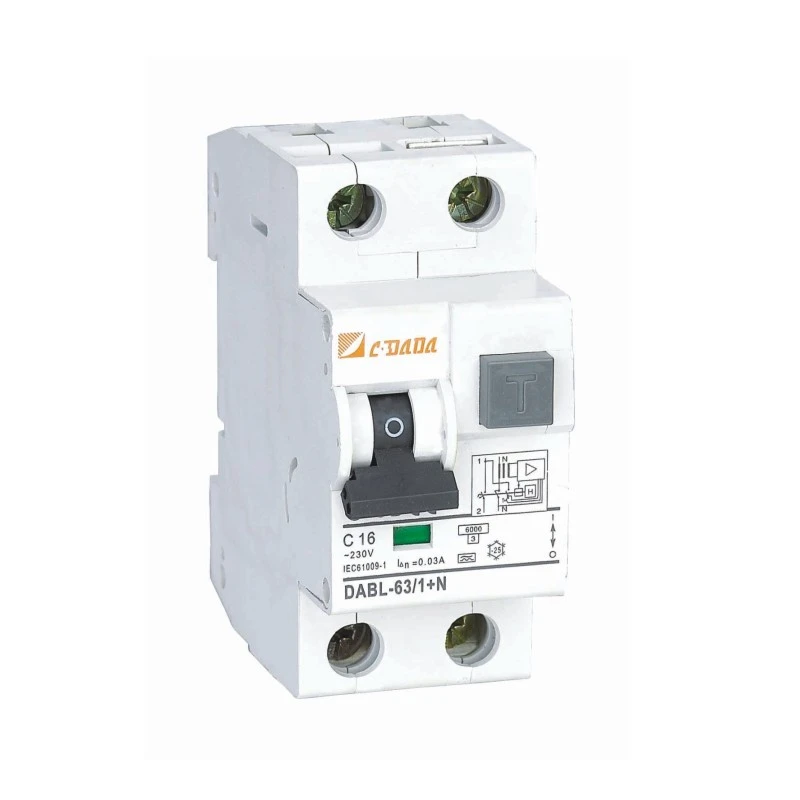

Pole: 2P (1+N) a i ʻole 4P (3+N)

Kuhi ʻia i kēia manawa (Ma): ʻO 6–63A maʻamau (e pili ana i ka paepae DAB7-63)

Koe Koe (I△n): 30mA (maʻamau no ka pale pilikino)

Ka hikiwawe: 6kA,10kA

Nā hana palekana:

Ke koena au (leakage)

ʻOi aku ka ukana (wela)

Kaapuni pōkole (electromagnetic)

ʻO ka hoʻoulu ʻana i ka overvoltage (ma o ka varistor D-class i kūkulu ʻia)

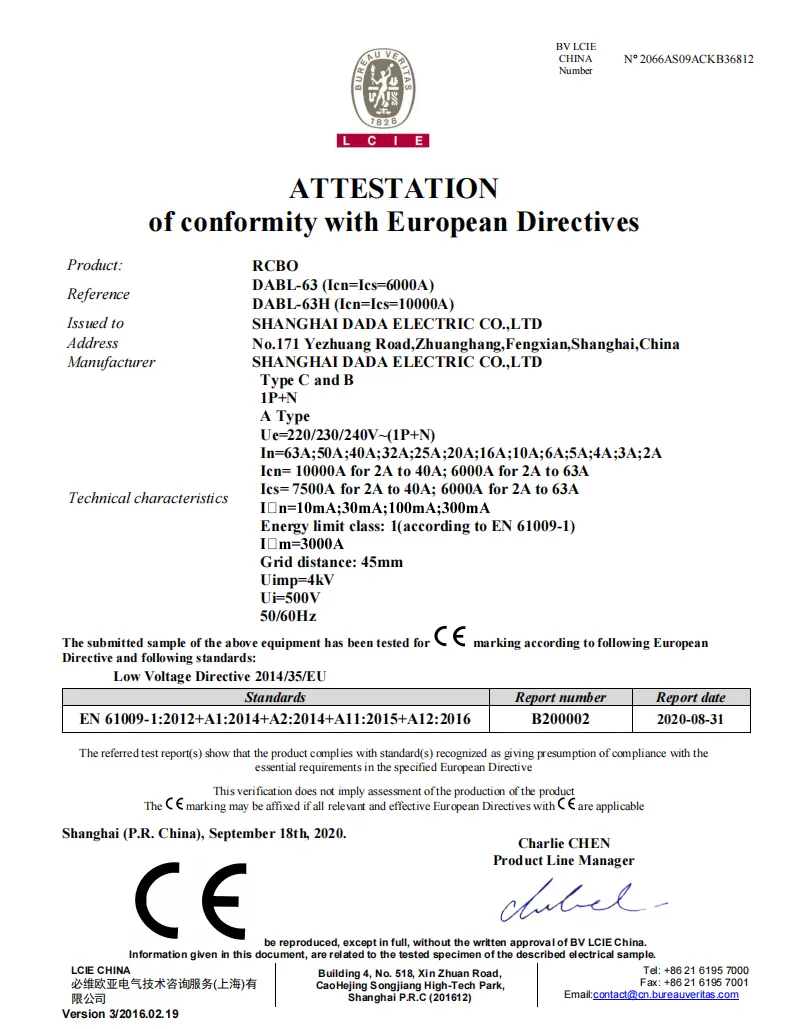

Nā palapala hōʻoia: CE, CB, RoHS

Ka Mahana Hana: –25°C a i +40°C

Kau ʻana: 2-module laula ma 35mm DIN rail

Pepa ʻIkepili ʻenehana

Nā mea nui:

★ Electronic differential module → kiʻekiʻe sensitivity & wikiwiki pane

★ hōʻailona pili kūʻokoʻa (hōʻike ʻoiaʻiʻo ON / OFF / kūlana huakaʻi)

★ pihi "TEST" no ka nānā ʻana i kēlā me kēia mahina

★ ʻO nā puʻupuʻu hoʻopaʻa notched → hoʻohaʻahaʻa i ka wela, ʻoi aku ka ikaika o ka paʻa

★ Nā wili keʻa (+/–) → maʻalahi ka hoʻokomo ʻana, ʻaʻohe ʻāpana hāʻule

★ ʻO ka huila pili kālā → ke ola lōʻihi, haʻahaʻa haʻahaʻa

No ke aha e koho ai i ka CDADA Electronic RCBO?

★ All-in-One Protection in 2 Modules

Hoʻololi i ka MCB + RCCB + pale pale ʻokoʻa—e mālama ana i ka hakahaka, ke kumu kūʻai, a me ka paʻakikī o nā uwea.

★ Hoʻonui i ka palekana me ka Surge Suppression

Kaapuni hui me ka uila module o ka pale like 'ole, D-papa varistor a me integrated kaapuni breaker o DAB7-63 moʻo hōʻoia 4 'ano o ka pale: mai koena au (leakage current), pōkole kaapuni; overload a me ka piʻi ʻana o ka overvoltage.

★ ʻIke Kūlana ʻoiaʻiʻo

'A'ole e like me nā mea ha'iha'i ma'amau, hō'ike ka hō'ailona ho'opili kū'oko'a i ke kūlana pili maoli—'oiai ke pa'a lima 'ia ka lima.

★ Hoʻolālā Mea Hoʻohui

● Laulā wela ākea → kūpono no nā hale kaʻa ʻaʻole i wela a i ʻole ka wela wela

● Hoʻokuʻu ʻia → hoʻopili paʻa, haʻahaʻa kūʻē

● Hoʻohana ʻia nā wili lua-drive → me nā mea paahana palahalaha a Phillips paha

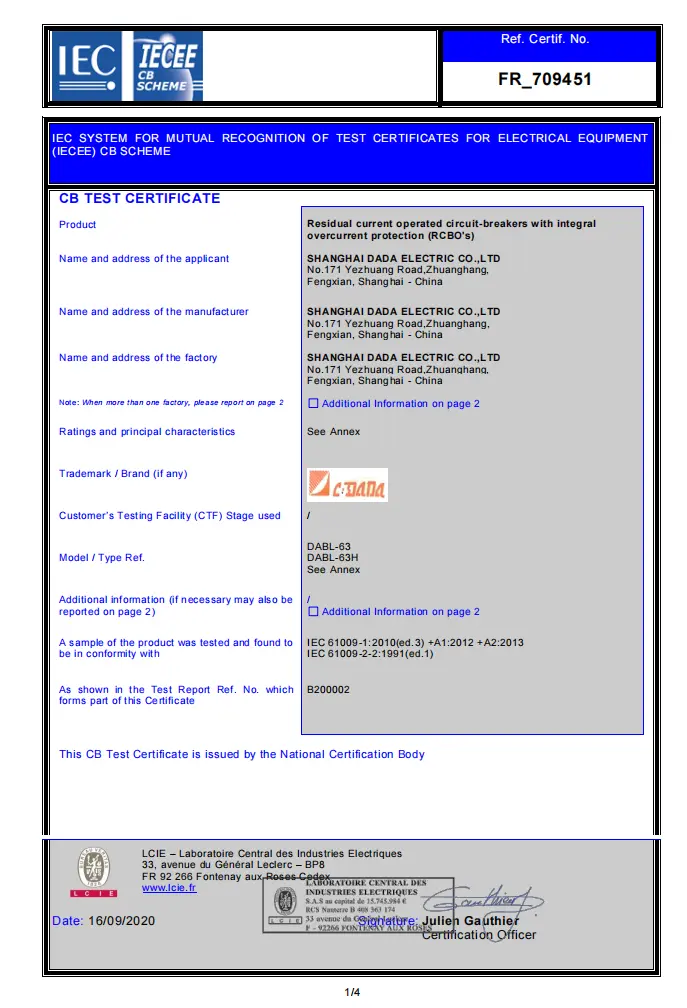

★ Hōʻoia honua

ʻO ka ʻae ʻana o CE, CB, a me RoHS e hōʻoia i ka hoʻokō ʻana ma ʻEulopa, ʻAsia, ʻApelika, a ma waho aʻe - kūpono no nā panela hoʻoiho.

★ Pono no nā ʻāpana kiʻekiʻe

Manaʻo ʻia no nā puka waho, nā wahi pulu, nā hale kaʻa, a me nā basements kahi e piʻi ai ka haʻalulu a me ke ahi.

★ Me nā makahiki he nui i ʻike i ka hoʻouna ʻana i Rūsia a me ʻEulopa ma kahi o ʻAmelika Hema, ʻEulopa, ʻAsia, a me Australia, ua uhi ʻo CDADA iā ʻoe!

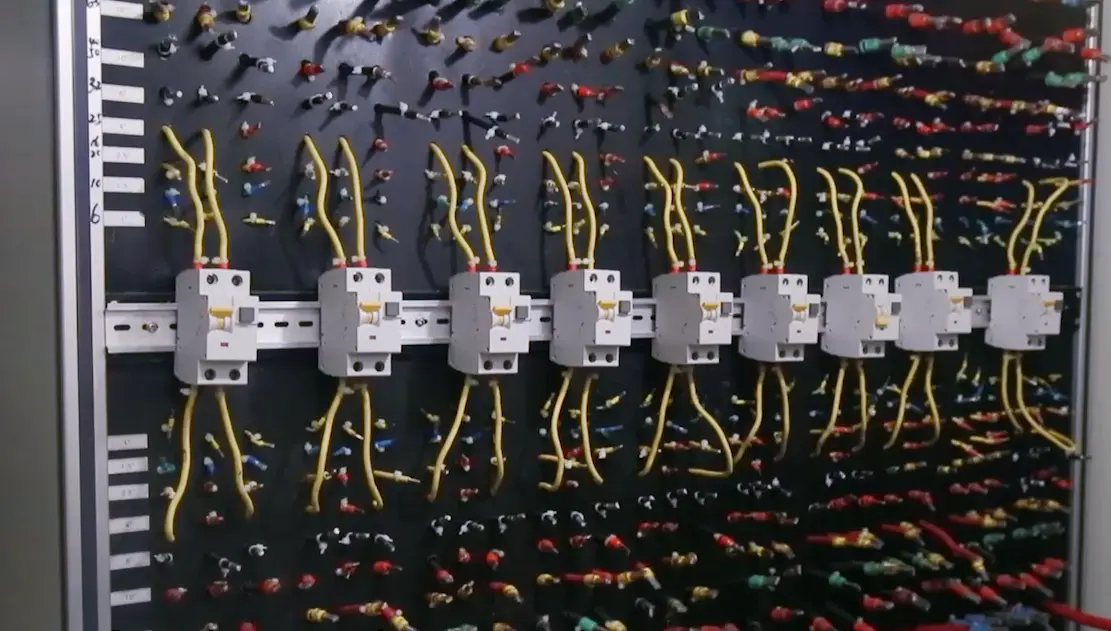

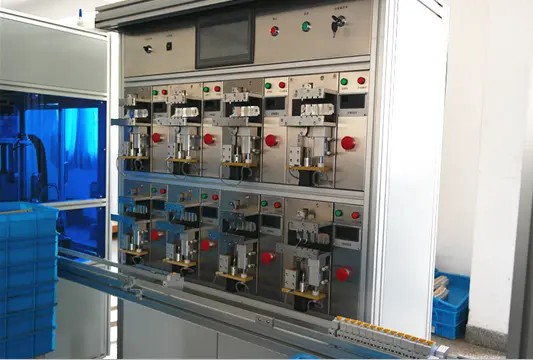

★ No ka mea, ʻo kā mākou kulekele e 100% nānā i nā huahana a pau e haʻalele i kā mākou hale, hiki iā mākou ke hōʻoiaʻiʻo me ka maopopo loa he 100% pololei ka huahana ma mua o ka haʻalele ʻana i kā mākou hale.

★ Hauʻoli mākou i kou kipa ʻana iā mākou i kēlā me kēia manawa! ʻO kēia wale nō ke ala e hiki ai iā mākou ke loaʻa ka mana piha i nā manawa hana a me nā kaʻina hana.

Nā noi maʻamau

ʻO nā Sockets waho: No nā mea hana māla, nā loina EV, nā kukui hoʻomaha

Ke kukui hale kaʻa a me ka lalo: ʻO nā kaiapuni pulu, anu

Nā Kaapuni Mea Hana: Nā mīkini holoi, holoi kīʻaha, pahu hau

Mana Hana: Kahi e noho pū ai nā mea hana a me ka makū

Nā Pānaʻi Kūʻai Kūʻai: Paʻa, hoʻonā pale-nui

Nā nīnau i nīnau pinepine ʻia (FAQ)

Q1: He aha ka ʻokoʻa ma waena o kahi RCCB a me kahi RCBO?

A1: ʻIke wale ka RCCB i ke koena (leakage) o kēia manawa—ʻaʻole ia e pale i ka hoʻonui a i ʻole nā ​​kaapuni pōkole. Hoʻohui ʻia kahi RCBO (e like me DABL-63) i ka RCCB + MCB i hoʻokahi mea hana—e hāʻawi ana i ka leakage + overload + pale pōkole.

Q2: Ke pale maoli nei kēia RCBO i ka piʻi ʻana?

A2: ʻAe! Loaʻa iā ia kahi varistor D-class i kūkulu ʻia e kāohi ana i nā overvoltages transient (e laʻa, mai ka uila a i ʻole ka hoʻololi ʻana i nā piʻi) - kahi hiʻohiʻona kakaikahi i nā RCBO maʻamau.

Q3: No ke aha e koho ai i kahi RCBO uila ma luna o kahi electromagnetic? A3:

● Hāʻawi nā RCBO uila i ka ʻike kiʻekiʻe, ʻoi aku ka liʻiliʻi, a hiki ke hoʻohui i nā hana ʻē aʻe (e like me ka pale ʻana i ka piʻi ʻana).

● Pono lākou e hoʻohana i ka volta laina—no laila ʻaʻole kūpono inā ʻaʻole hilinaʻi ʻia ke kūpaʻa.

● Hana nā ʻano electromagnetic ma 0V akā ʻoi aku ka nui a nele i nā hiʻohiʻona akamai.
→ No nā pā hale noho paʻa, ʻoi aku ka maikaʻi o nā RCBO uila e like me DABL-63.

Q4: Ua lawa anei ka 30mA no ka pale pilikino?

A4: ʻAe. ʻO 30mA ka paepae pae honua (IEC) no ka pale ʻana i ka haʻalulu ola i nā kaapuni noho.

Q5: No ke aha e koho ai i ka CDADA no ka RCBO uila?

A5: Kūlana ʻo CDADA no ka mea:

● Palekana 4-i-1 maoli (leakage + overload + short circuit)

● Hoʻolālā 2-module paʻakikī e mālama i ka nui o ka panel

● Hōʻike ka hōʻailona pili kūʻokoʻa i ke kūlana pololei

● Nā palapala hōʻoia honua (CE/CB/RoHS)

● OEM-mākaukau: maikaʻi kūlike, kākoʻo Pelekane, kumu kūʻai nui
